| Prod Model: |
DC Stepper Motor GM12-15BY |
| Product Name: |
DC Stepper Motor GM12-15BY |
| Atepper Motor Size: |
15*21.5mm |
| Rated Voltage: |
5.0V |
| No.of Phase: |
2 |
| Step Angle: |
18 |
| Gear Ratio: |
1/30,1/50,1/110 |
| Resistance: |
10 |
| Holding Torque: |
500-1050g.cm |
| DC Motor Current: |
500mA |
| Pull In Rate: |
800,850PPS |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Pm-Permanent Magnet |
| Type: |
Stepper Motor |
| Certification: |
RoHS CE |
| Brand: |
TT motor |
Product Description

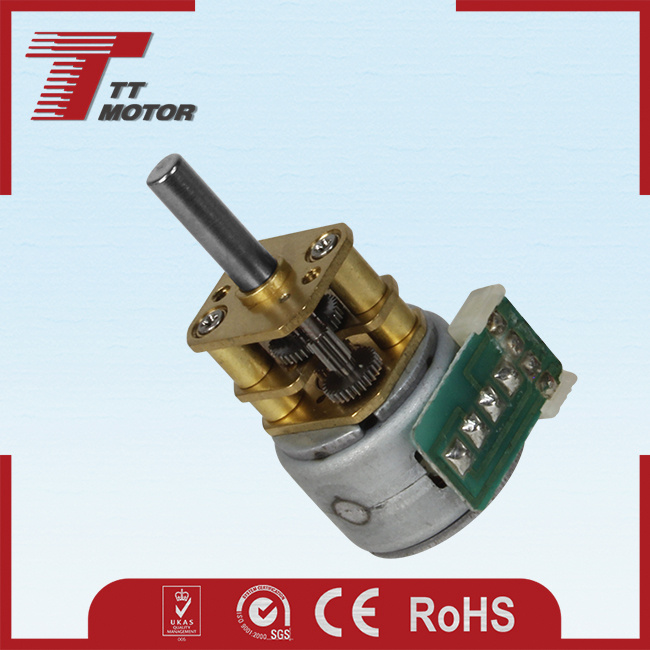

ROHS/CE micro stepper dc gear motor for Industrial automation control
Main Features
1.OEM/ODM 12*10mm gearbox plus 15mm stepping motor
2.Small size dc gear motor with low speed and big torque
3.12mm gear motor provide 0.05Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:3,5,10,20,30,50,63,100,150,210,250,298,380
| Motor model no. | Rated voltage | No.of Phase | Step Angle | Gear Ratio | Resistance | Holding Torque | current | Pull in Rate |
| VDC | | | | Ω | g.cm | mA | pps |
| GM12-15BY-30 | 5.0 | 2 | 18° | 1/30 | 10 | 500 | 500 | 800 |
| GM12-15BY-50 | 5.0 | 2 | 18° | 1/50 | 10 | 700 | 500 | 850 |
| GM12-15BY-110 | 5.0 | 2 | 18° | 1/110 | 10 | 1050 | 500 | 850 |
Product Application
Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
| Other Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |
Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country
