Ease Cable Termination&Accessories Co., Ltd. >> RoHS Ce Porcelain Ceramic Terminal Blocks

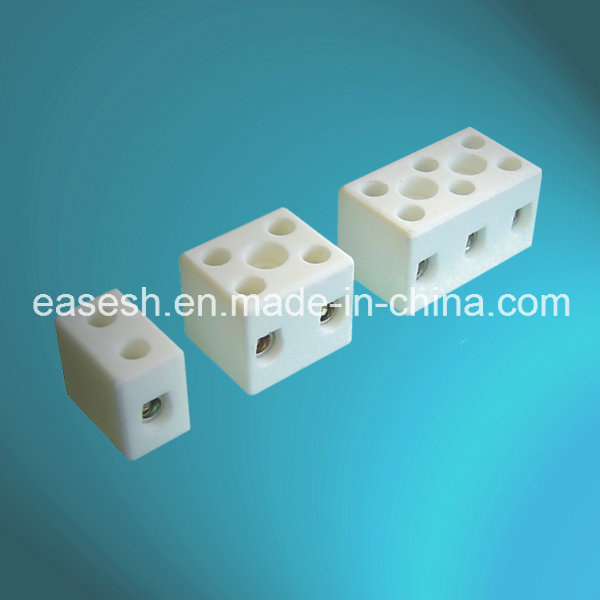

RoHS Ce Porcelain Ceramic Terminal Blocks

RoHS Ce Porcelain Ceramic Terminal Blocks
Price: US $ 0.01/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: CPO
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 4mm2, 10mm2, 16mm2
Inserts: Nickel Plated Brass
Housing: Porcelain
Colour: White
Application: Cable
Environmental Protection: General
Connection Mode: Push-Pull Connection
Shape: Rectangle
Contact Termination Form: Screws Fixed
Brand: Es

Product Description

Porcelain Terminal Blocks with Warehouse in the Europe



SPECIFICATIONS
INSERTS:NICKEL PLATED BRASS
HOUSING:PORCELAIN (GLAZED OPTION)
TEMP.:800°C (HOUSING), 350°C (INSERTS)
SCREWS:GALVANISED STEEL
STANDARD:CE (BS EN 60998)
COLOR:WHITE
FEATURE:HARD & SOLID
VERY HIGH TEMPERATURE
NON-INFLAMMABLE
RESISTANT TO CHEMICALS

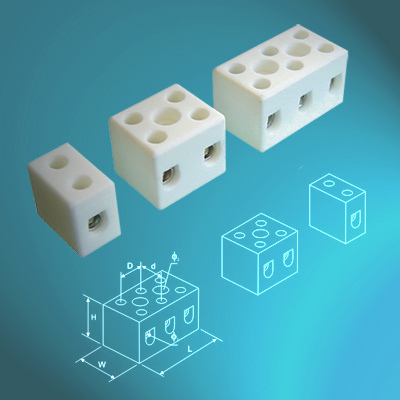

EASE CODECROSS SECTIONCURRENT RANGERATED VOLTAGEDIMENSIONS (mm)
WLΦ1Φ2DdH
CPO-5A-1P4 mm 25 - 32A450V13123.2--816
CPO-5A-2P4 mm 25 - 32A450V18213.24.512816
CPO-5A-3P4 mm 25 - 32A450V18333.24.512816
CPO-5A-4P4 mm 25 - 32A450V17.845.23.24.812815.8
CPO-15A-1P10 mm 215 - 57A450V21134.3--1020
CPO-15A-2P10 mm 215 - 57A450V21244.34.8141020
CPO-15A-3P10 mm 215 - 57A450V21364.34.8141020
CPO-15A-4P10 mm 215 - 57A450V20.748.64.34.9131019.5
CPO-30A-1P  16 mm 230 - 76A450V21156.1--1222
CPO-30A-2P16 mm 230 - 76A450V27316.15.0171222
CPO-30A-3P16 mm 230 - 76A450V27486.15.0171222
CPO-30A-4P16 mm 230 - 76A450V26.664.36.14.91712.521.3
Cross Section:rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6 mm 2  is4 mm 2
Φ1 wire entry hole diameter
Φ2 fixing hole diameter

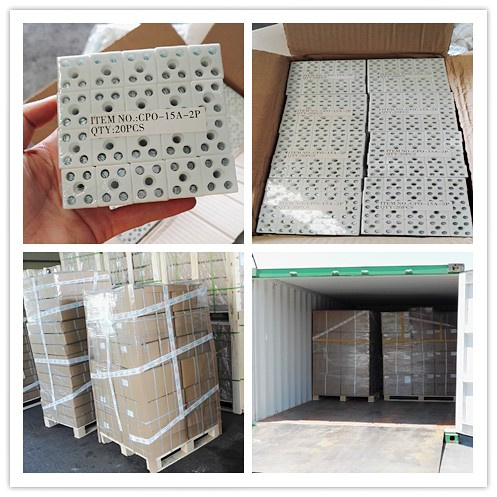

PACKAGE:

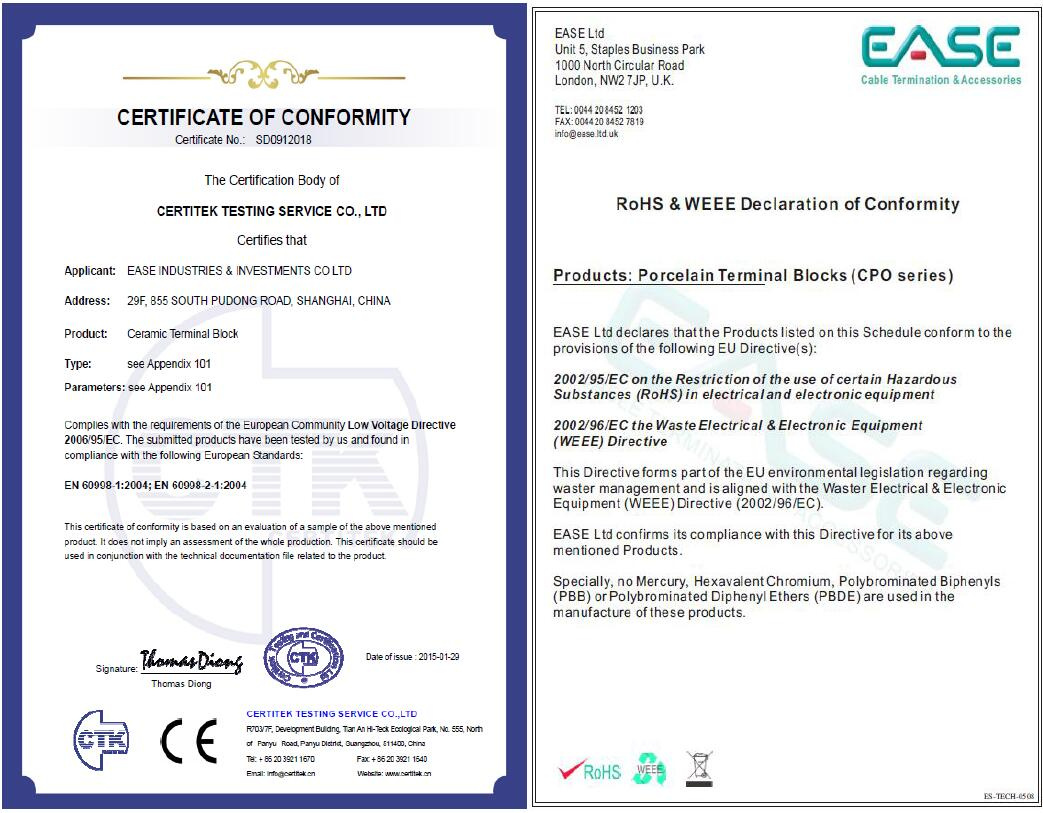

CERTIFICATES (CE & RoHS)

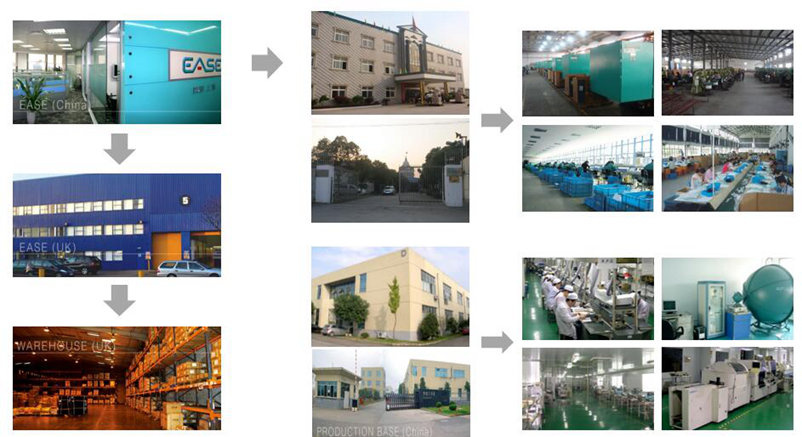

EASE FACILITIES


EXHIBITION:


Why Choose EASE?
1. Professional operation experience
2. Samples available for quality test.
3. Low MOQ, Low Price.
4. Safe packing and prompt delivery.
5. Sizes can be customized totally as request.
EASE, founded in 1996, the leading manufacture in Europe and China for Cable & Lighting Accessories. A totally positive business approach and delication to a policy of making outstanding quality from China is key to our continued Success. With Strong focus on products quality, heavy investment has been made in toolingdesign and mouldmaking for our group manufacturers. Strictly raw material control and evaluation guarantees the consistency of our mass production Quality.

All manufacturing is carried out under ISO 9001, with most of them complying with RoHS, REACH and certifiedby UL, VDE and IMQ making EASE products the envy of many competitors.

Predominately addressing the electrical OEM markets, our expertise and specialty fulfill the needs of those companies Who recognise the benefits of outsourcing products from hassle-free one-stop supplier' S service, leaving them to focus on their core business. With our comprehensive quality control systems, EASE ensures the consistency of all OEM Production from container to container shipments for many years.

The UK 85, 000 square feet warehouse is vital to the company' S efficiency and flexibility. The integrated logistic force Behind EASE combined with dedicated staff allowsthe Company to provide the fastest possible responses to the Customers ever changing needs in the UK and across Europe.

The Company' S ability to deliver on its motto, "European Quality, Chinese Price" has gained itself an excellent reputation in a broad spectrum of industries, and has become an approved supplier to many leading international companies in the UK, Europe and America. The company continues to move forward with an ever-increasingportfolio of high quality Electrical, lighting and LED product lines, with the aim to be an ultimate single source for our long-term business Partners and all new customers.
