RoHS UL Approved Digital Circuit Board for Digital Electronics

Name: RoHS UL Approved Digital Circuit Board for Digital Electronics
Brand: all-electronics-online.com
SKU: 810668565
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	US $ 1.89-2.3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Structure:	Multilayer Rigid PCB
Material:	Polyester Glass Fiber Mat Laminate

Product Description

High Quality Digital Circuit Board with Best Service

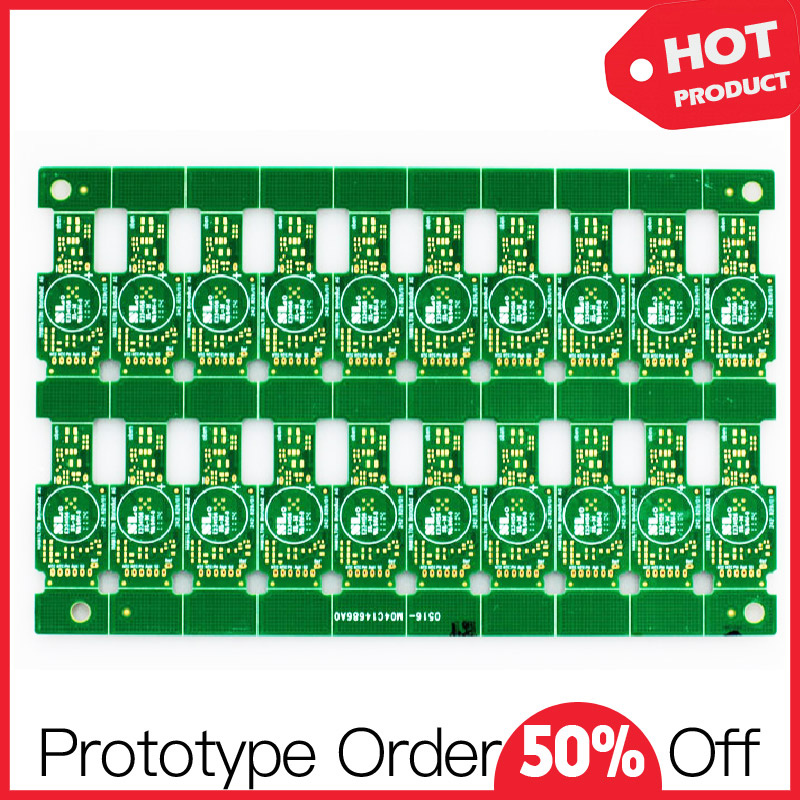

Products Display

Digital Circuit Board Manufacturing Capabilities

Total Pad Size	Standard	Advanced
Capture Pad	Drill + 0.008	Drill + 0.006
Landing Pad	Drill + 0.008	Drill + 0.006
BC Mechanical Drill (Type III)	0.008	0.006
Laser Drill Size	0.004-0.010	0.0025
Material Thickness	0.0035	0.0025
Stacked Via	Yes	Yes
Type I Capabilities single & Double Deep	Yes	Yes
Type II Capabilities Buried Vias with Microvias	Yes	Yes
Type III Capabilities	Yes	Yes
Copper Filled Microvia	Yes	Yes
Smallest Copper Filled Microvia	0.004	0.0025
Copper Filled Microvia Aspect Ratio	0.75:1	1:01
Smallest Laser Microvia Hole Size	0.004	0.0025
Laser Via Aspect Ratio (Depth:Diameter)	0.75:1	c

Digital Circuit Board Assembly Manufacturing Capabilities

Turn Times	Selected Volume	Selected Solder Types
Same day through four weeks turns	No minimum order quantity	Leaded
Scheduled deliveries	Engineering prototypes	Lead-free/RoHS compliant
	Low cost first article builds	No-clean process available
Parts Procurement	Selected Stencils	Selected Ball Grid Arrays (BGA)
Turnkey	Laser cut stainless steel	As small as .5mm pitch
Kitted/Consigned	Nano-coating available	All BGA placements are x-ray inspected
Partial Turnkey
Assembly Types	Selected Component Types	Selected Other Capabilities
Surface Mount (SMT)	As small as 0402 package	Pitch components as small as 15 mil
Thru-hole	As small as 0201 with design review	Repair/Rework services
Mixed Technology (SMT/Thru-hole)		Mechanical Assembly
Single or double sided placement		Box Build/Electromechanical Assembly
		Sub-assemblies

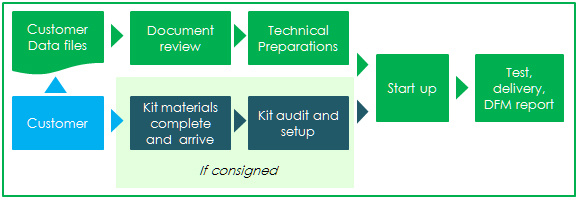

Digital Circuit Board Manufacturing Process

About Us
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We are offering digital circuit board manufacturing and assembly services to following big customers all over the world

Your digital circuit board demand will be perfectly handled by our professional production line and responsible work team.

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
