Prod Model: |
WJ122-5.0/10.0mm |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pitch: |
5mm,10mm |
Application: |
Battery |
Environmental Protection: |
Resistance to Environmental |
Connection Mode: |
In-Line Connector |
Shape: |
Rectangle |
Contact Termination Form: |
Screws Fixed |
Interface Type: |
Spring Cage |
Brand: |
Wanjie |
Product Description

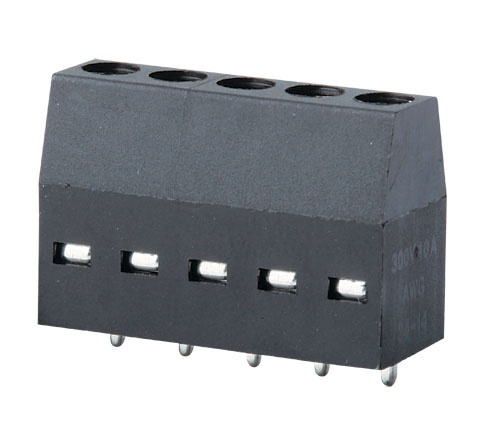

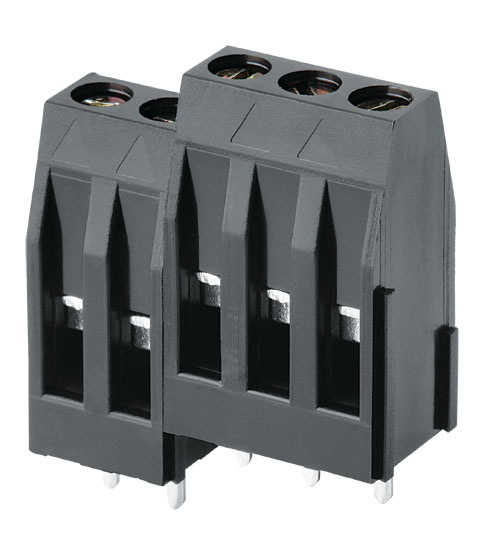

PCB Terminal block / Electronic connector / Screw terminal blockWe have passedthe ISO9001:2008 quality management system, the products have been approved by VDE, SGS, CE, CB, CQC, andC US.
An excellent management team,Fast delivery time,High quality
CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminalblocks, including screw, screwless, pluggable, feed through, barrier, din railterminal blocks, electronic housing, and solderless breadboard.Product Description Material
Screws: M3.0 steel Zn plated
Shrapnel: Brass,Ni plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Electrical
Rated voltage: 300V
Rated current: 10A
Wire range: 24-14AWG 2.5mm²
Contact resistance: 20mΩ
Insulation resistance: 500mΩ /DC500V
Withstanding voltage: AC 2000V/1 min
Mechanical
Temp. Range: -40º C ~ +105º C
Max soldering: +250º C, for 5 sec.
Torque: 5.10kgf-cm/0.5Nm/4.43 (lbin)
Strip length: 6-7mm

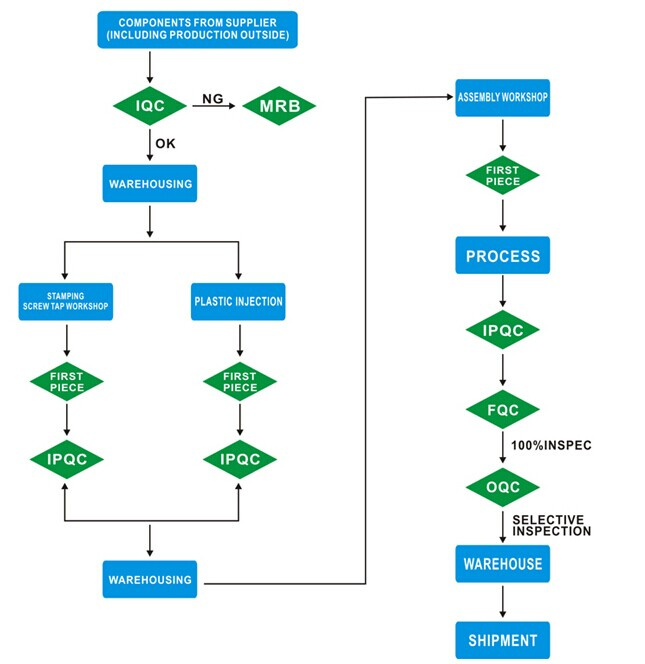

Continuous improvement and made customer satisfaction" is our eternal pursuit of the entrepreneurial spirit, the company depending on the quality of life, in the operation of the process of carrying out strict quality control system: ISO9001. From raw materials procurement to manufacturing, product shipment and after-sales service, every process and work stations, have a strict inspection and control; the company attaches great importance to continuing education and staff training, and believe that training can improve the professional skills and quality, make employees and enterprises with a total development and progress, and simultaneously to absorb advanced technology, and ultimately bring customers high quality and stable products.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. Equipped with advanced detection equipment, can be directly UL486E, UL1059, EN60998, EN60947, EN61984, GB13140, GB14048 standards, such as testing various types of terminals, for our new product development to provide a reliable basis for the Secretary to improve my products related to the efficiency and accuracy of certification.
For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.
With the advanced administration system, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Asia, Africa etc and get good comment from the customers.
Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.
With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.
We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.
With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.
All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
