Roll up Shutter Gate Door Remote Controller

Name: Roll up Shutter Gate Door Remote Controller
Brand: all-electronics-online.com
SKU: 836042395
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	US $ 6.3-8/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YET846
Control:	Roll up Shutter Gate Door Remote Controller
Remote Controlcapacity:	30
Sensitivity:	≥-105dBm
Receiving Sensitivity:≥:	-112dBm
Static Working Current:	<=7mA
Channels:	4 Channel
Working Temperature:	-40°c - +80°c
Use Range:	Industrial ,Car,Motorcycle,Door Opener,Windows Con
Control Voltage:	AC/DC 12V/24V/220V Ccan Be Choosed
Ransmitting Frequency:	315m/433.92m/Oters
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Voltage:	12V/24V
Battery Type:	No Battery

Product Description

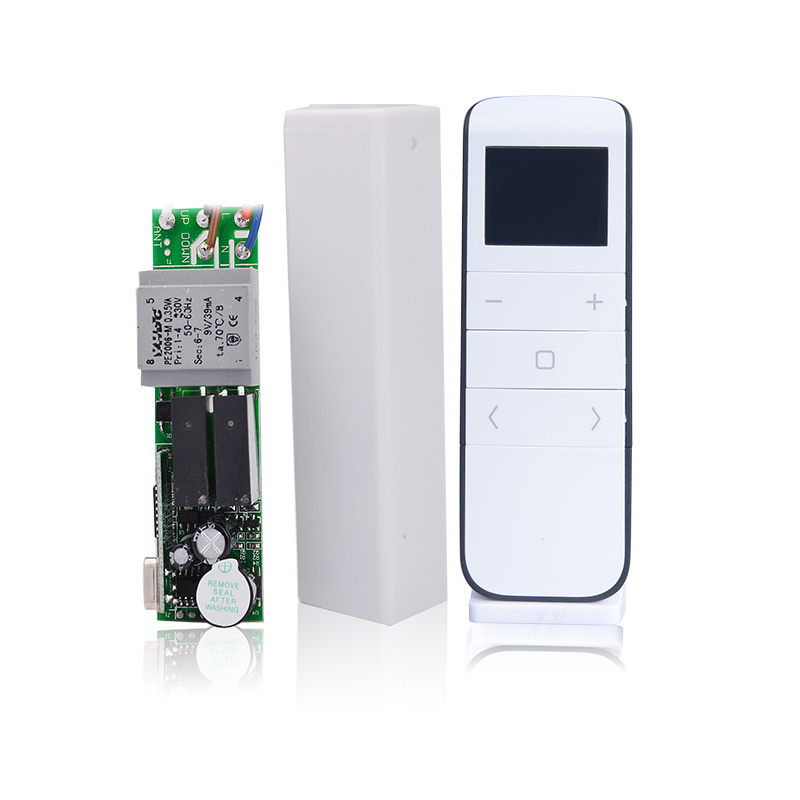

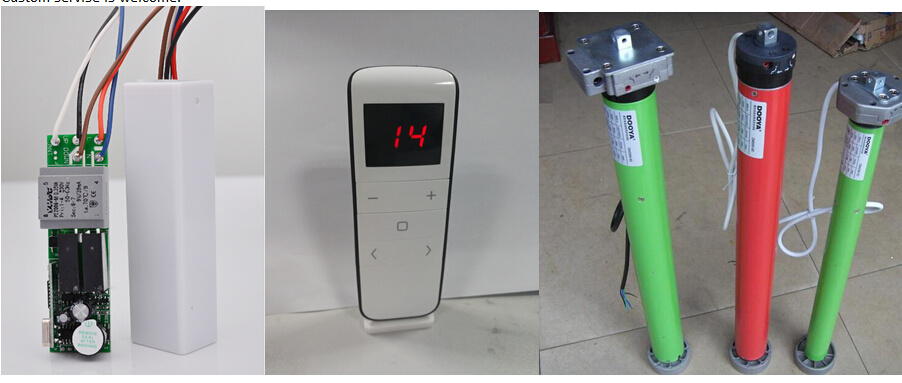

roll up shutter gate door remote controller

Loading:5A/250V

Wiring chart

L:220V Live wire
N:220V Neutral wire

UP:uplink of motor
DWN:downlink of motor
Connect the COM of motor with the 220V Neutral wire.

Remote control programming

Press the button P of the new remote control and then power up the receiver, 5s later receiver will buzz "BI BI" which indicates the receiver is into programming mode
If the remote control have been programmed before, receiver is powered up and into normal work status and then press the button P on the remote control exceed 5s, receiver will buzz "BI BI" and into learn mode.
In the programming mode, press the UP button of the remote which you want to program and the receiver buzz 3 time shortly indicates programming is successful. The receiver will exit programming mode if there is no more remote control programmed within 10s.
If the receiver works conversely as expected, press button P exceed 5s, receiver will buzz "BI BI" and then press Down button, receiver will buzz "BI BI" 3 times , then the uplink and downlink have been switched.

Memory clearance

Receiver powered up and into normal working status, press the Stop button of the programmed remote control exceed 8s, the LED light of the remote control will stop for 2s and then flash quickly, wait for another 5s and receiver will buzz 3 times shortly, all memory on the receiver have been erased.
