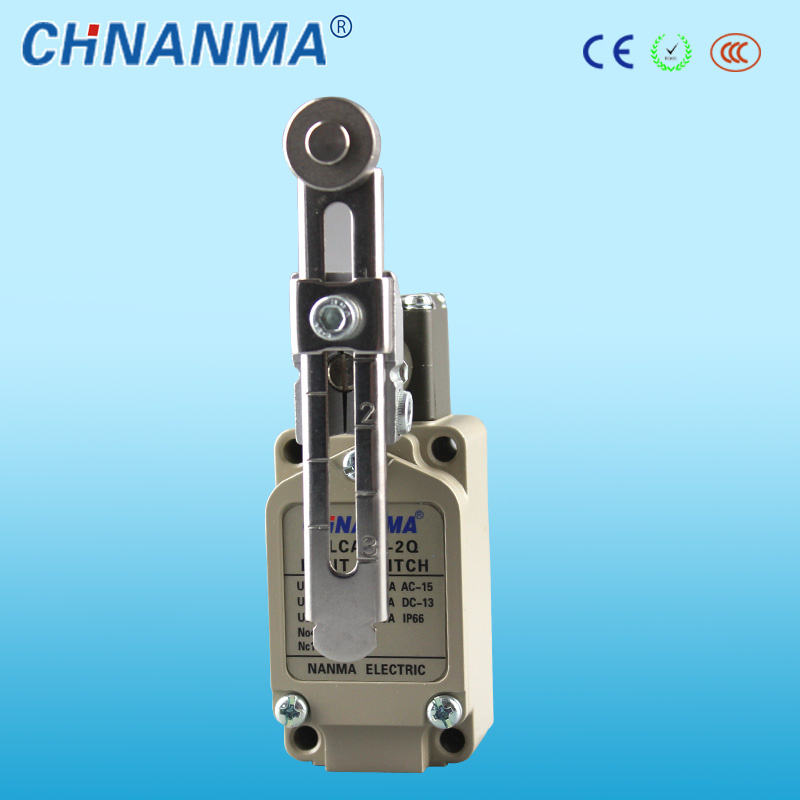

Roller Lever Type Wlca12 Type Wlca12-2 Type Limited Switch

Name: Roller Lever Type Wlca12 Type Wlca12-2 Type Limited Switch
Brand: all-electronics-online.com
SKU: 729135052
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WLCA2
Pressing Type:	Spring Roller
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electronic Equipment
Brand:	Chnanma

Product Description

O Double-circuit limit switch.is widely used

O Firm aluminum alloy enclosure

O High mechanical strength

O Structure preventing oil,water and pressure

O Indicating plate with setting position is installed in it,so it is easy to maintain

O Kinds of actuators is taken convenience for using

O Built-in contact stand has double-reed,so it has long mechanical life

Rated number

Rated voltage	Nonelectrical carry				Electrical carry
	Resistance carry		Bulb carry		Electrical carry		Motor carry
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	10		3	1.5	10		5	2
250VAC	5		2	1	5		3	1
480VAC	3		1.5	0.8	3		1.5	0.8
600VAC	1		1	0.5	1.5		1	0.5
8VDC	10		6	3	10		6
14VDC	10		6	3	10		6
30VDC	6		4	3	6		4
125VDC	0.8		0.2	0.2	0.8		0.2
250VDC	0.4		0.1	0.1	0.4		0.1

Characteristics

Operation speed	1mm to 2m/S
Action frequency	Mechanically:120 times/minute Electically:30 times/Minute
Contact resistance	Under 15mΩ (initial)
Insulation resistance	100mΩ above (under 500VDC)
Bearing voltage	Non-contact end:1,000VAC,50/60Hz for one minute Current parts and noncurrent parts and end and connect position :2,200VAC,50/60Hz for one minute
Vibration	Action:10 to 55Hz,1.5mm pairs swing
Hitting	Machine:1,000m/Sec2(about 100GS) Action:300m/Sec2(about 30G S)
Ambient temperature	-10 to+80ºC
Humidity	Max 95% RH
Serve life	Mechanically:15,000,000 times above(at rated ot) Electrically:500,000 times above
Weight	About 275g
Protection structure	IEC specification:IP67

eering, Photographing,Sample, Production)

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

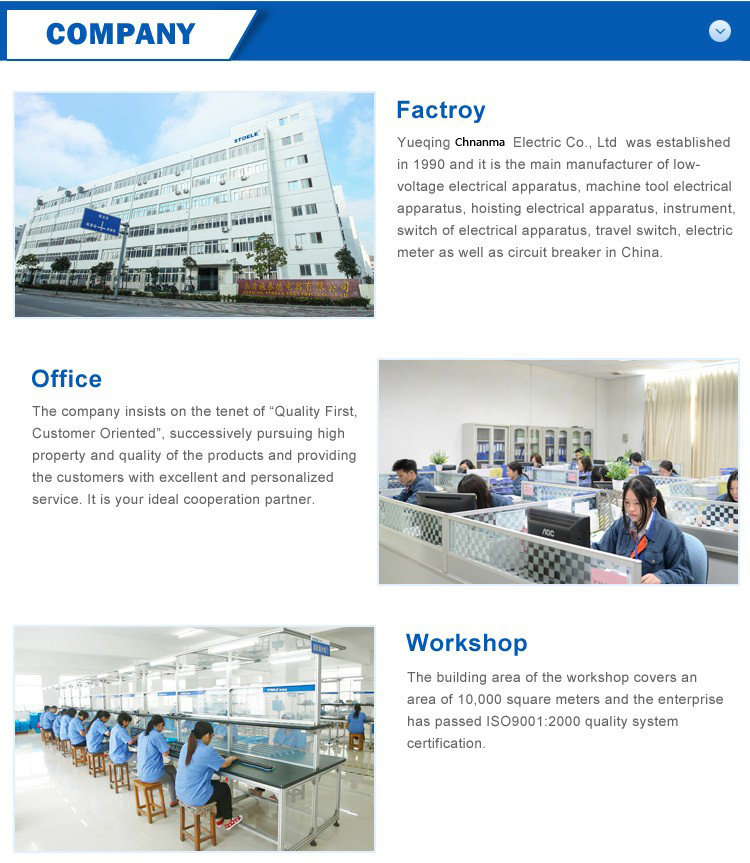

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
