Roller Shutter Control Board-433/868/110-220V Remote Control

Name: Roller Shutter Control Board-433/868/110-220V Remote Control
Brand: all-electronics-online.com
SKU: 830660775
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 14-20/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DR-2
Operation Temperature:	-20ºC~85ºC
External Manual Switch:	Open/Close
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	250VAC

Product Description

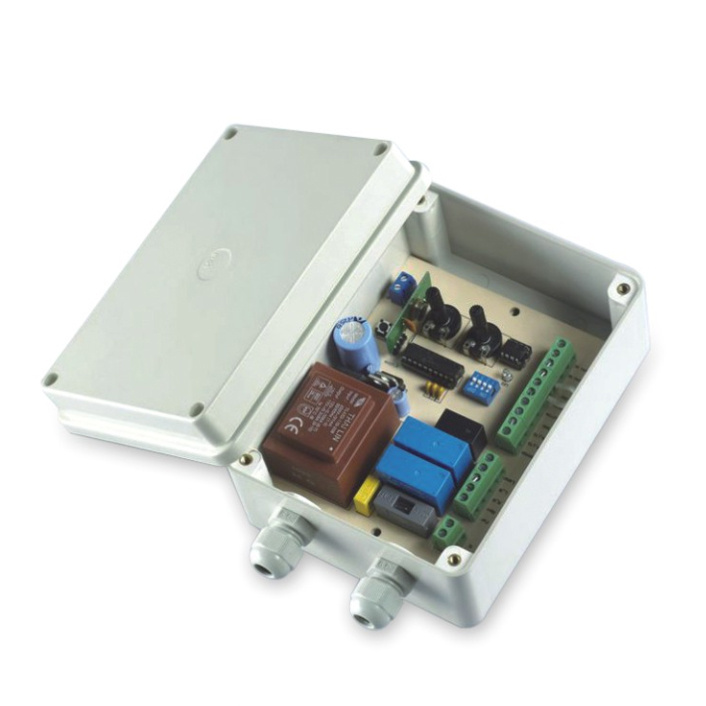

Roller Shutter Control Board-433/868/110-220V
1. Frequency: 433.92MHz/868.35MHz

2. Operation temperature: -25 to 85 ºC
3. Input voltage: 110V/60Hz or 230V/50Hz.
4. Load power:500W/2.2A

5.Static Power:1.1w/5mA
6. Can learn up to 30 transmitter codes.
7. Normal or Dead-man function selectable.
8. Photocell function set by DIP-switch.
9. Can be control by keypad or wireless transmitter.
10. Max loading power: 1000W
11. PCB dimension: 98*79*30mm.

Technical Spection
Frequency	868.35MHz/433.92MHz
Input Voltage	110V/60Hz-230V/50Hz
Load power	500W/2.2A
Static Power	1.1W/5mA
Transmission distance	≥130M(Open space)
Max loading power	1000W
function	Can learn up to 30 transmitter codes
	Normal or Dead-man function selectable
	Photocell function set by DIP-switch
	Can be control by keypad or wireless transmitter
