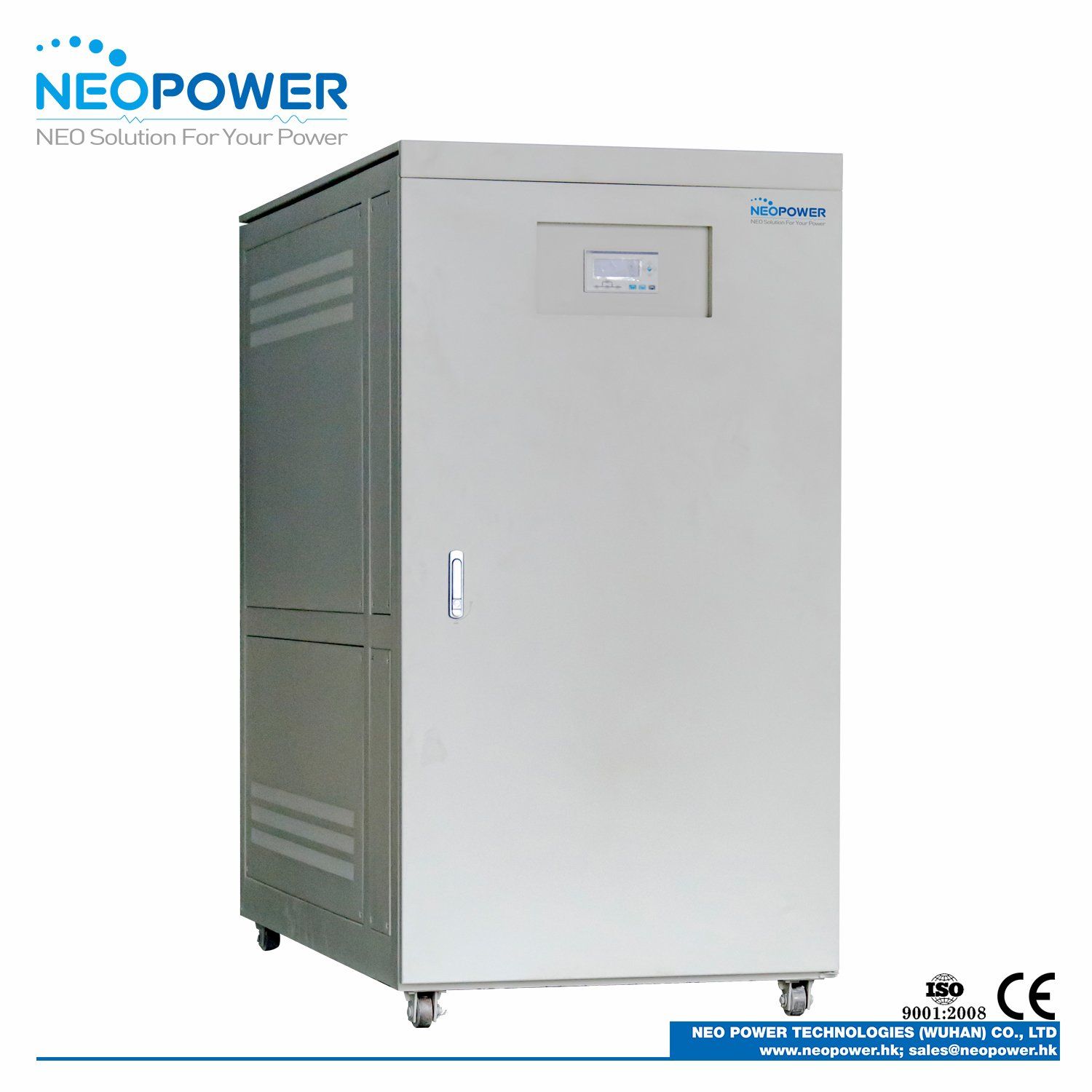

Roller Wiper Voltage Regulator 500kVA 20% Regulation Range

Name: Roller Wiper Voltage Regulator 500kVA 20% Regulation Range
Brand: all-electronics-online.com
SKU: 823427795
Availability: InStock
Rating: 5 (136 reviews)

Price:	US $ 8600-10100/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NPR-500H-3P-R20
Capacity:	500kVA
Nominal Voltage:	380V/400V/415V
Output Precision:	&Plusmn;1%
Control:	Servo
Response Time:	<200ms
Display:	LED/LCD
Communication:	RS232/RS485/Dry Contact/USB/Rj11/RJ45/Ethernet
Bypass:	Yes
Overload:	Yes
Short Circuit:	Yes
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	Industrial Frequency
Brand:	Neopower

Product Description

Model	NPR-500H-3P-R20
Capacity	500 kVA
Power Rating	400 kW
Input Voltage	380/400/415 Vac +/-20%, three phase + N + PE
Input Frequency	47 ~ 65 Hz
Output Voltage	380/400/415 Vac +/-1% ~ 5%, three phase + N + PE
Output Power Factor	0.8/0.9
Response Time	< 200 ms
Regulation Time	10% variation within 500 ms
Surge Rating	1000% max current for 2 seconds; 300% max current for 1 minute; 200% max current for 2 minutes
Harmonic Distortion	Less than 1%
Efficiency	98%
Display	LED display
Communication Port	RS485
Operation Temperature	-10 ~ 50ºC
Protection	over/low voltage, overload, short circuit, phase failure
Function	manual bypass mode
Option	isolation transformer, output circuit breaker, ATS, lightning surge arrestor, IP21 ~ IP54, LCD display, RS485 port
Protection Level	IP20
Noise	< 60 dB
Temperature	-15 ~ 45 ºC
Humidity	95% (non-condensing)
Altitude	1000 m
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMC Directive: 2004/108/EC; LV Directive: 2006/95/EC
Dimension	600 * 1250 * 2000 mm
Net Weight	1100 kG

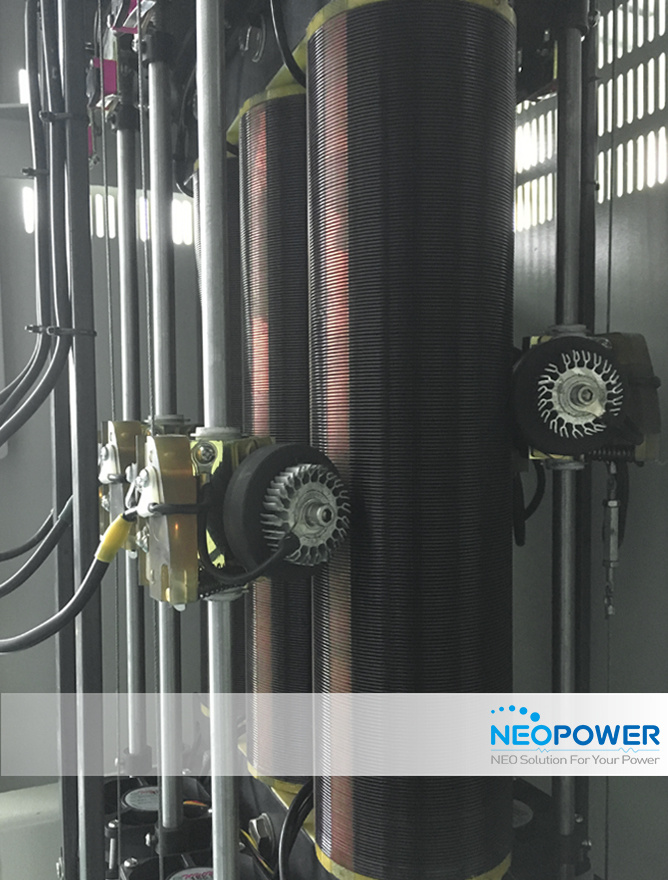

ROLLER CARBON BRUSH

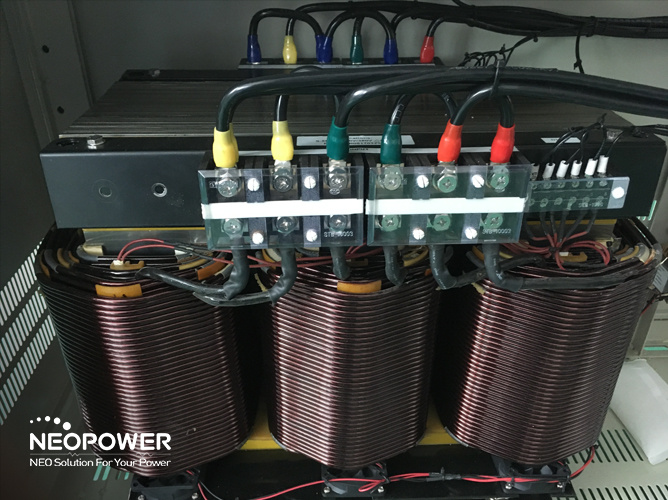

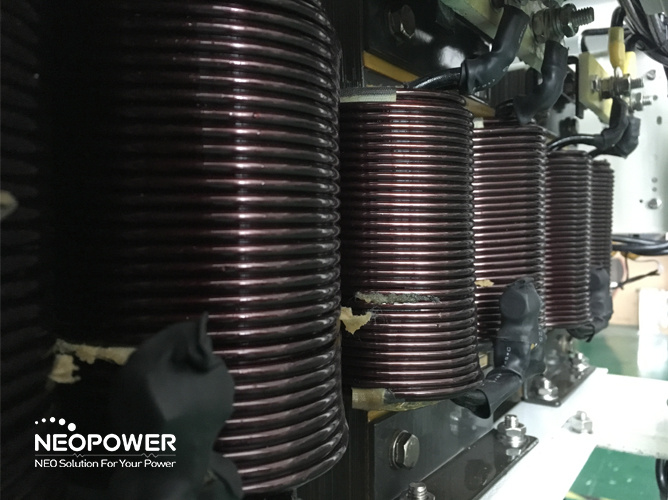

COMPENSATION TRANSFORMERS

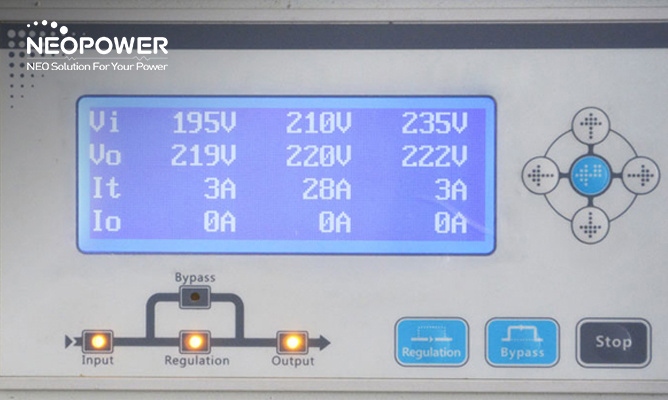

LCD CONTROL PANEL

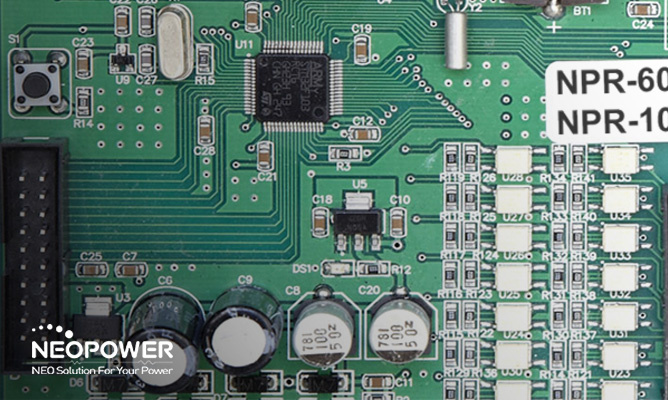

MAIN BOARD

OPTIONAL ISOLATION TRANSFORMERS

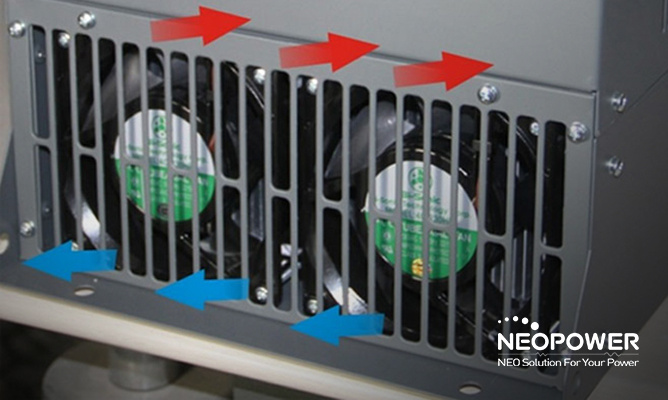

INTELLIGENT FANS

FEATURES

Roller Technology
Over-10-Year Lifespan
High Regulation Accuracy
Universal Compability
IP54 Outdoor Level
Slim Shape
Front Access
Low Noise Operation
