Rolling Door Motor for Garage Door

Name: Rolling Door Motor for Garage Door
Brand: all-electronics-online.com
SKU: 675715395
Availability: InStock
Rating: 4.7 (115 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLM92B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Slm 92
Application:	Roller Shutter,Roller Blind,Awning

Product Description

Rolling door motor Specifications

CE, TUV, RoHS, CB
For Garage door, Rolling door opener
140-300Nm, 230/110V
Lifespan up to 5 years

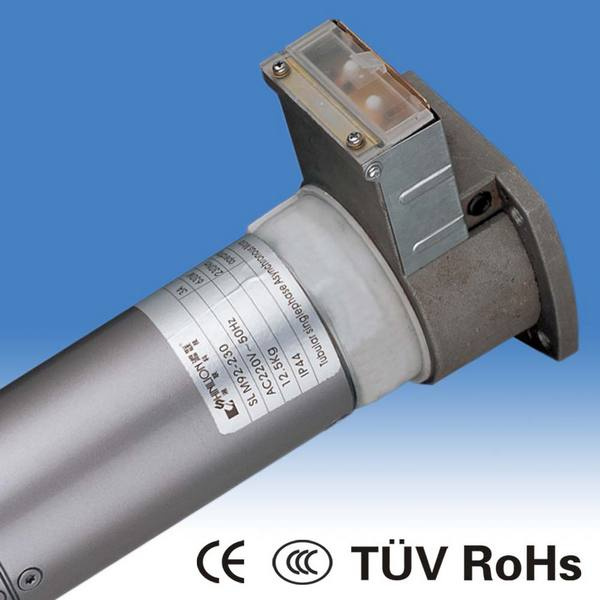

Shinlion Rolling door motor, With the advanced design (electronic, mechanicand control mixed together), it has characters of conpact structure, big torque, sensitive limited switch and accuracy.

This type of Rolling door motor can be used in rpller curtain, metal rolling door, garage door etc. Which the maximum lift capacity is less than 80kg.

Shinlion Rolling door motor Advantages
Non malfunction for the brake
Low noise
Long service life
Strong intensity
Oil proof
Accurate limit.
Large effective limit
Build-in remote control

Rolling door motor Packaging & Delivery
Packaging Detail: Aluminium roller shutter profiles are packed with plastic film and craft paper packing. Hardware components and ABS, PVC components, tubular motors, remote controls are packed in standard export hard paper packing. Aluminum roller shutter(whole product), Garage Doors and Awning are packed in plywood
Delivery Detail 20-30 days.

Professional Garage door motor Manufacturer in China!

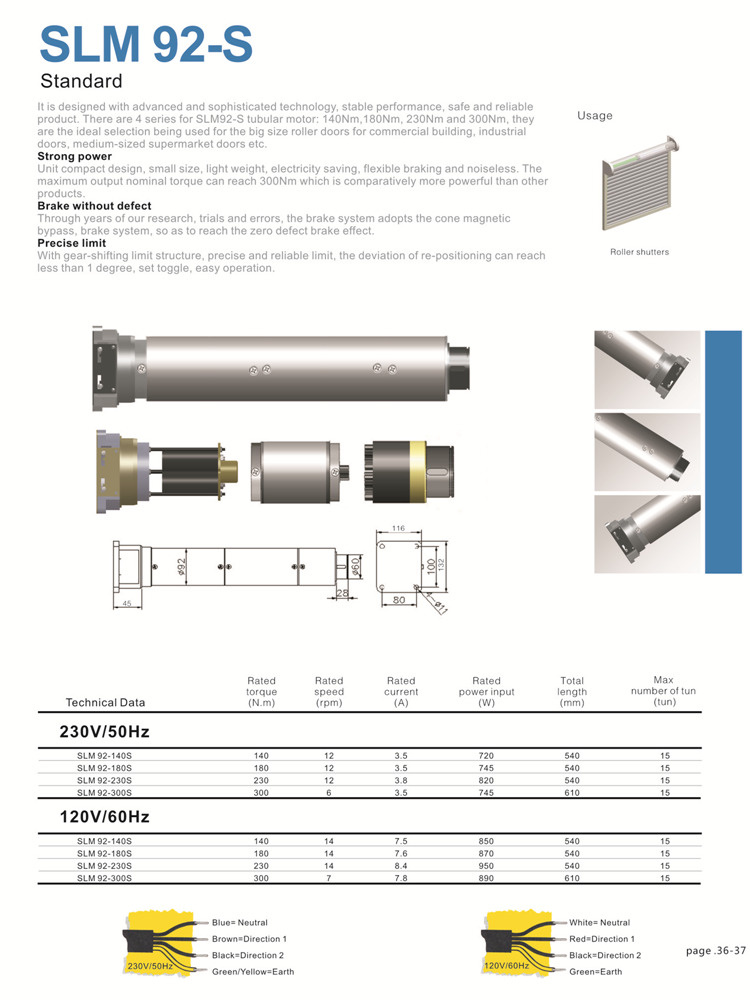

Model SLM92B	140	180	230	300
Voltage	230/110	230/110	230/110	230/110
Power (w)	685/804	710/825	780/910	710/850
Nominal speed (rpm)	12/14	12/14	12/14	6/7
Nominal torque (Nm)	140	180	230	300
Work time (min)	4	4	4	4
Insulation level	B	B	B	B
Protection	IP44	IP44	IP44	IP44
Tube Diameter (mm)	92	92	92	92
Size	538	538	538	538

No. 1 Professional roller shutters and tubular motors manufacturer in China!

No. 1 Professional roller shutters, rolling doors and tubular motors factory in China!

Ten Years experience in roller shutters and tubular motors!

Established in 2001, Hunan Shinilion Science & Technology Co., Ltd. is a private enterprise specializes in aluminium roller shutters and rolling doors.

As an all-around enterprise with the import & export right in China, we professionally produce and sell the following products:

1) Aluminium roller shutters, roller doors

2) Roller shutters and roller doors aluminum profiles (extrusion)

3) Tubular motors & other door operators

4) Sectional garage door & other automatic doors

5) Awnings (sunshades)

6) Construction hardware (locks, hinges, handles etc. )

7) Remote contorl for roller shutter door and window, awnings.

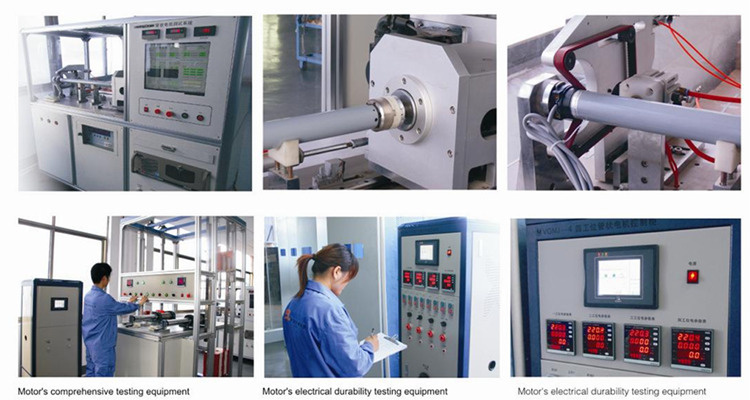

Covering an area of more than 50, 000 square meters, we now have about 500 employees. We have passed the the test of ISO9001: 2008 qualification certification and ISO14001: 2004 management certification, and our motors are CE, TUV, CB, RoHS, CCC approved.

With market as leading directions, high quality products, fine processing, perfect technology supporting and excellent service, we are making great effort to improve city building levels and create wonderful life together with our vast users.

If you are interested in any of our products, please feel free to contact us for more details. We hope to establish business relationships with both domestic and overseas clients in the near future. We are looking forward to receiving your inquiries.
