Room Thermostat (TR-TA3)

Room Thermostat (TR-TA3)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Prod Model: TR-TA3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 80X80X43.5 Cm
Certification: CE
Type: Temperature Controller
Usage: Air Conditioner
Control Type: Mechanical
Operating Principle: Gas Filled Sylphon
Display Type: Not Applicable
Material: ABS Material

Product Description

Application

TR-TA3 frost thermostat, gas filled sylphon/bellows operating, use for home industrial heating and air conditioning.The thermostat must be assembled at approx. 1.5 m from the floor, in a zone reflecting the medium room  temperature. Avoid the installation in zone where there is air stagnation, near the doors, the windows, heat sources and so on

With ON-OFF switch, With a LED indicator

CE approved

One-year warranty

OEM and ODM service



Specification

ModelTR-TA3
CertificateCE
HS code9032100000
Temperature range10`30 C
Voltage250 V/AC
Current16(4) A
Frequency50/60 Hz
Working ambient temperature0`60 C
Dimension80x80x44 cm
Protection levelIP 20
Packaging50 pcs/CTN
G.W.10 KGS

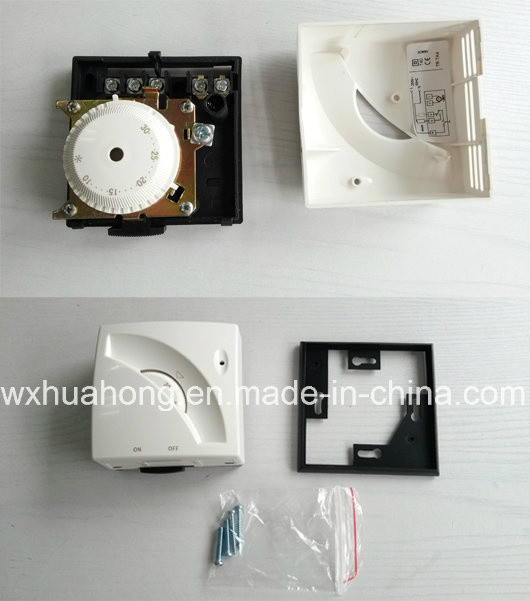

Detailed images


FAQ
Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
