Rotary Roller Limit Switch Chl-5050

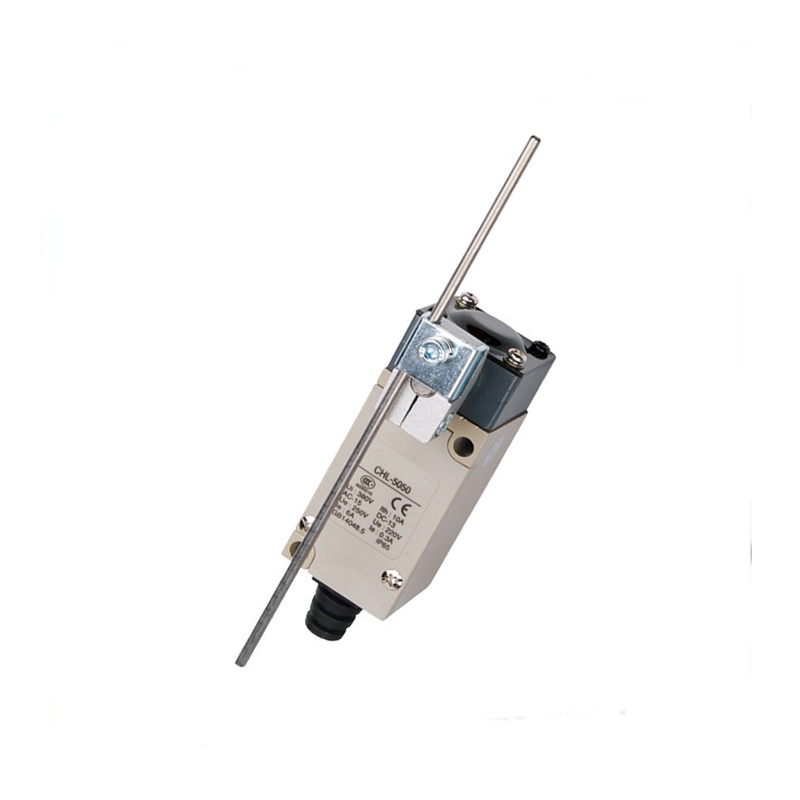

Name: Rotary Roller Limit Switch Chl-5050
Brand: all-electronics-online.com
SKU: 834719805
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CHL-5050
Max Current:	10A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000

Product Description

Metallic bottom shell
Built-in contact stand has double-spring,so it has long mechanical life
Strong electric property 10A,250V,for 500,000 times

Model	CHL	5000	5030	5050	5100	5200
Operating force	OF(Max.)	750g-cm	750g-cm	750g-cm	750g-cm	900g-cm
Release force	RF(Min.)	100g-cm	100g-cm	100g-cm	200g	200g
Pre-travel	PT(Max.)	20°	20°	20°	1.8mm	1.8mm
Tripping position	TP±10%	22.5°	22.5°	22.5°	2.0mm	2.0mm
Movement differential	MD(Max.)	10°	10°	10°	1.2mm	1.2mm
Over travel	OT(Min.)	75°	75°	75°	4.0mm	4.0mm
Total travel	TT(Min)	95°	95°	95°	5.8mm	5.8mm

Model	CHL	5220	5300	5330	5381	5391
Operating force	OF(Max.)	900g-cm	150g	150g	150g	550g-cm
Release force	RF(Min.)	200g	30g	30g	30g	100g-cm
Pre-travel	PT(Max.)	1.8mm	30mm	30mm	30mm	20°
Tripping position	TP±10%	2.0mm	22.5°	22.5°	22.5°	22.5°
Movement differential	MD(Max.)	1.2mm	14°	14°	14°	14°
Over travel	OT(Min.)	4.0mm	20mm	20mm	20mm	75°
Total travel	TT(Min)	5.8mm	50mm	50mm	50mm	95°
