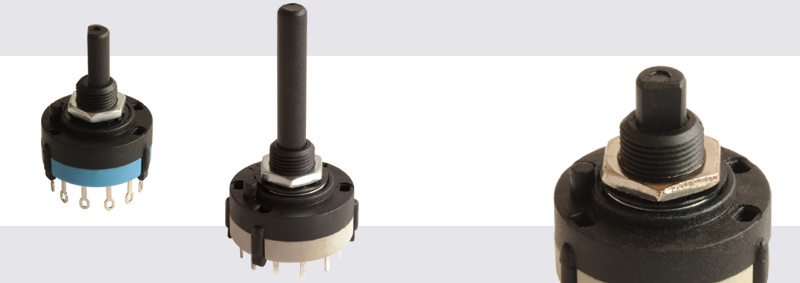

Rotary Switches, D-Shape or Round Actuator, up to 12 Positions

Rotary Switches, D-Shape or Round Actuator, up to 12 Positions
Price: US $ 0.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: T/T,Paypal
Prod Model: SR26 SERIES(SR26NS-1-3-4-18F)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotary Switches, D-Shape Or Round: 12 Positions
Rotary Number: Single Button
Usage: Electrical Appliance
Standard: Standard
Structure: Mushroom-Head
Operation: Emergency Style
Certification: CE

Product Description


rotary switch

SR26 SERIES
Rotary Switches, D-shape or Round Actuator, up to 12 Positions

  • Load Rating: 130mA 150VDC/AC
  • Contact Resistance: 25 m Max (initial)
  • Insulation Resistance: DC 500V 100M Min.
  • Dielectric Strength: 1000VAC 1 Minute
  • Mechanical Life:  20000 cycles Min.
  • Electrical Life: 15000 cycles Min.
  • Operating Torque: 1kgf-cm (Max)
  • Operating & Storage Temperature:
    0 ºC ~ + 60 ºC
  • Soldering spec:255 ºC ± 5 ºC Within 3 sec
  • Rotary Angle: 30
  • Cap/ Case/ Movement: PA
  • Moving Contact: PBS+Ag
  • Spring: SUS

SR26 SERIES
Rotary Switches, D-shape or Round Actuator, up to 12 Positions

 Electrical Rating

Load Rating: 125VAC 0.3A; DC30V/1A
Contact Resistance: <=25mΩ Initial
                                        <=50mΩ after 10000 cycles

Insulation Resistance: DC 500V 100MΩ MIN.
Dielectric Strength: AC  500V 1 minute.
Timing: Shorting or Non-shorting
Environmental

Temperature: -10ºC ~ +60ºC
Humidity: RH 30%~90%
Mechanical Characteristics

Operation force: 600 g ± 300 g
Soldering: 300 ºC 3 sec.
Life: 10,000 cycles.
Remark:There are silicon grease in the contactors, Super-sonic cleaning are prohibited.


BNE Harvest Tech Ltd.Specializes in producing and engineering for all kinds of switches, actuators, and electronical metal part you are looking for.

Our products have obtained VDE ENEC14 CE UL TUV CB CQC SGS and other certificates, in order to ensure product quality, customer confidence, and worry-free use of our high quality products, we strictly in accordance with ISO-9001 quality management system, ISO-14001 environmental management system management and operation standards.Welcome to the new and old customers call the funding.
We can custom make any component you like as well.We also have many suppliers who we do large quantity business with, so we get very good discounts which we pass onto you.

Thank you for looking at our company.Please allow me to tell you a little bit about myself.My name is Carel Pan, I am 31yrs old, I graduated from Suzhou university with a BA in business English and a minor in Japanese in 2006.Currently supply many famous brands in many countries like Germany, USA, Hill-ROM (hospital bed maker), Skytoy Aircraft Technologies (water proof switches), Korea (Semiconductor), Switzerland (Hairdrier switches), Israel (Alarm sensors), Poland, and many more.Please feel free to request a reference if you like.

We understand that dealing with most Chinese suppliers is very scary, difficult and frustrating.We can assure you that your money is safe with us and we stand behind our products.Our experience in the switch business is vast and we assure you will get what you asked for and it be to the highest of standards.I can speak 2 languages fluently and I have family that can speak and write German and Spanish fluently.Wir sprechen Deutsch, Se habla Espanol.

Our quality is of the highest standards hence our current customer base.We can supply you with large or small orders, prices are according to QTY.

Please feel free to email us for a quote.You will see we are different from the rest because we care about you.
