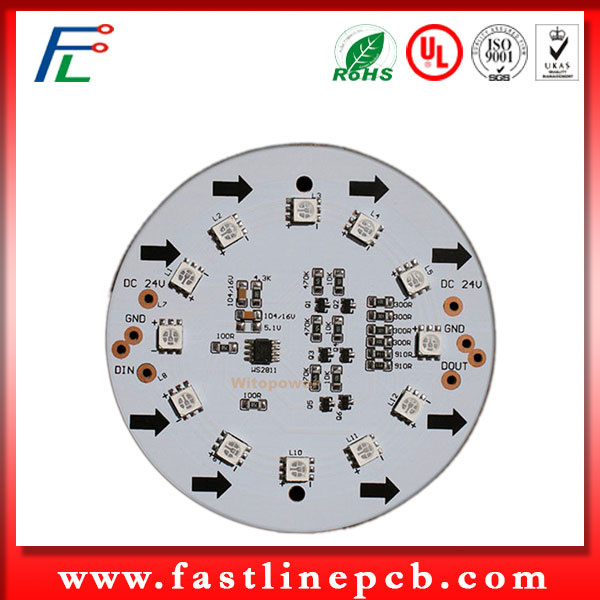

Round Aluminum LED PCB

Prod Model:	Fl3223
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Aluminum
Board Thickness:	1.5mm
Copper Thickness:	0.5oz
Min. Hole Size:	0.25mm
Min. Line Width:	0.15mm
Min. Line Spacing:	0.15mm
Surface Treatment:	HASL Lead Free
Lead Time:	5-7 Working Days
Small Order:	Accepted
PCB Type:	Aluminum LED PCB Board
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminum
Brand:	Fastline

Product Description

Fastline professional led aluminum pcb: Aluminum    PCBs are widely used in Light emitting diodes (LED) technologies to assist with heat dissipation and produce a specific illumination. LEDs are used in the below noted applications: Back light unit applications Street safety applications (streetlights, lighting, etc.) General lighting applications Automotive LED applications Power converters: telecom, industrial, high voltage regulator, power supplies Hybrid/electric motor control applications Photovoltaic Features-Our Products Advantage 1. Over 10 years experience manufacturer in led aluminum pcb and pcb field. 2.  Big scale of producing makes sure that your purchase cost is lower. 3. Advanced production line guarantees stable quality and long life span. 4. Design and produce almost any PCB as your requirement. 5. 100% test for all customized pcb products Product Exhibition Packaging & Shipping Inner packing : Vacuum packing,Plastic bag Outer packing : Standard carton packing Shipping type : UPS , DHL ,FedEx , EMS, China Post Air Mail etc. You can choose the shipping cost as you  want . Our Services Can we know your factory manufacture capability? Sure , please check the sheet below : TECHNICAL DETAILS OF Fastline Aluminum PCB MATERIALS Aluminum   MAXIMUM LAYER COUNT 4 Layers MAXIMUM PANEL SIZE 17" x 23" (432 x 584 mm2) MIN. BOARD THICKNESS 1.0mm Al, 4 mils (0.1 mm) FR4 COPPER CLAD (inner) 1/2 oz, 1 oz, 2 oz, 3 oz, 4oz COPPER CLAD (outer) 1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz SURFACE FINISHES ENTEK 106A, Immersion Gold, HAL, immersion silver SOLDER MASK LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA MINIMUM TRACE (width) 12.0 mils (0.30 mm) MINIMUM TRACE (spacing) 12.0 mils (0.30 mm) MINIMUM PAD-TO-PAD TOL. ± 3 mils (± 0.76 mm) HOLE SIZE TOLERANCE (NPTH) ± 2 mils (± 0.05 mm) HOLE SIZE TOLERANCE (PTH) ± 3 mils (± 0.076 mm) MINIMUM HOLE SIZE 20 mils (0.50 mm) OUTLINE DIMENSIONAL TOL. < ± 10 mils (0.25 mm) IONIC CLEANLINESS < 5 mg/in2 of NaCl (0.775 mg/cm2) IMPEDANCE CONTROL ± 10% (Differential) WARPAGE < 1% Can You Show Me some Picture of the factory? Why Choose you ? There are some advantages of us : 1) We have professional research team. 2) No MOQ,samall order are aslo welcome,From Prototype to Mass production. 3) All products are 100% tested working before sent to you. 4)  One stop PCB solution (PCB , PCB Assembly  and SMT stencil) 5) We have professional sales team, so please do not hesitate to contact us if you have any question! FAQ Q1: What's your minimum order quantity? A1: No MOQ , 1 pcs is accepted . Q2: what file we should offer? A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list. Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me? A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.   Q4: What payment terms do you have? A4: For small orders, we usually prefer Paypal and Western Union; For bigger order, pls pay by TT. Q5: How about the shipping method? A5:We have stable cooperationship with DHL, Fedex, EMS, UPS, TNT and other air flight way or sea freight company.Usually we will quote you the most reasonable shipping method according to your country, good types, weight and requested delivery time. How to Contact Us? Would like to know more about the product? Send us inquiry, click "Send" now!
