Round S Type Compression and Tension Load Cell for Weighing Scales (QH-32B)

Round S Type Compression and Tension Load Cell for Weighing Scales (QH-32B)
Price: US $ 35-40/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 2/Piece
Pay Type: T/T,D/P,Western Union,Paypal
Prod Model: QH-32B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 0.5t ~ 5t
Safe Overload: %Fs 150
Excitation Voltage: 9 ~ 12 VDC
Cable Length: 3 M
Material: Alloy Steel

Product Description

Round S Type Compression and Tension Load Cell for Weighing Scales (QH-32B)


Product Discription:

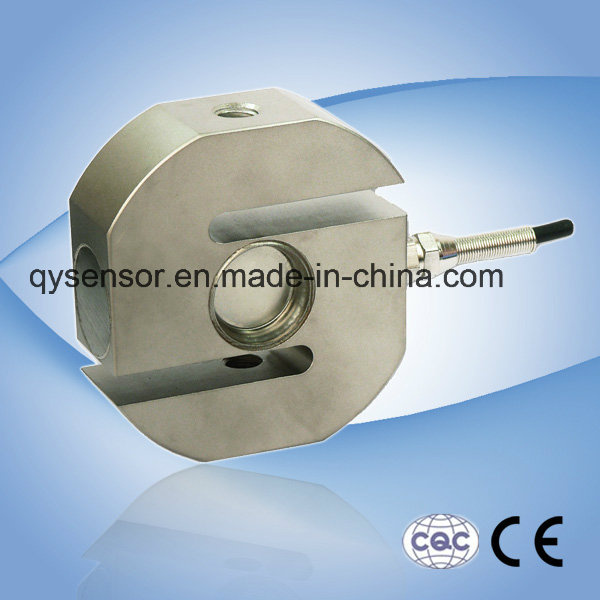

QH-32Bload cells are available in the capacities from 0.5t to 5t. Alloy construction with spoke type. S beam style. Tension and/or compression loading. Alloy steel or stainless steel,sealed welding , waterproof, anti-corrosion and suitable for all kinds of environment. Integral structure and easy installation. Suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.

Features:

Capacity :0.5t ~ 5t

Defend grade: IP67 & 68

High accuracy.

Alloy steel or stainless steel.

Integral installation, Low profile. reliable performance

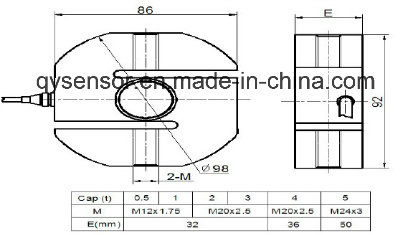

Electrical connection and Dimensions:



Technical Specifications

Specifications:

capacity

t

0.5~ 5

safe overload

%FS

150

ultimate overload

%FS

200

rated output

mV/V

2.0 ± 0.004

excitation voltage

Vdc

9 ~ 12

combined error

%FS

± 0.03

zero unbalance

%FS

± 1.0

non-linearity

%FS

± 0.03

hysteresis

%FS

± 0.03

repeatability

%FS

± 0.02

creep

%FS/30min

± 0.03

input resistance

Ω

350 ± 5

output resistance

Ω

350 ± 3

insulation resistance

M Ω

≥ 5000 @ 100 Vdc

operating temperature range

°C

-20 ~ +55

compensated temperature range

°C

-10 ~ +40

temperature coefficient of SPAN

%FS/10°C

± 0.02

temperature coefficient of ZERO

%FS/10°C

± 0.03





Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :¢ 5mm
Cable length:3 m


The cable length could be chose by customer's application.

Application
  • Assembly Processes
  • Bag Weighing Machine
  • Check Weighing
  • Conveyor Belt Weighing
  • Crane & Hoist Load Monitoring
  • Engine Test Dynamometer
  • Force & Impact Testing
  • Force Gage
  • Force in Product Testing
  • Hand held Push / Pull Force Gage
  • Hanging Scale
  • Hopper , Tank , Silo Weighing
  • Materials Testing
  • Pulling Force Measurement
  • Rope Tension Measurement
  • Steel Weigher
  • Structural Material Testing
  • Tablet Hardness Testing Machine
  • Tensile Testing
