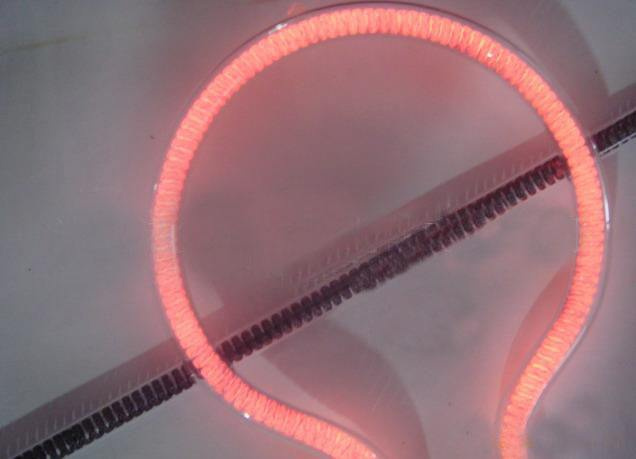

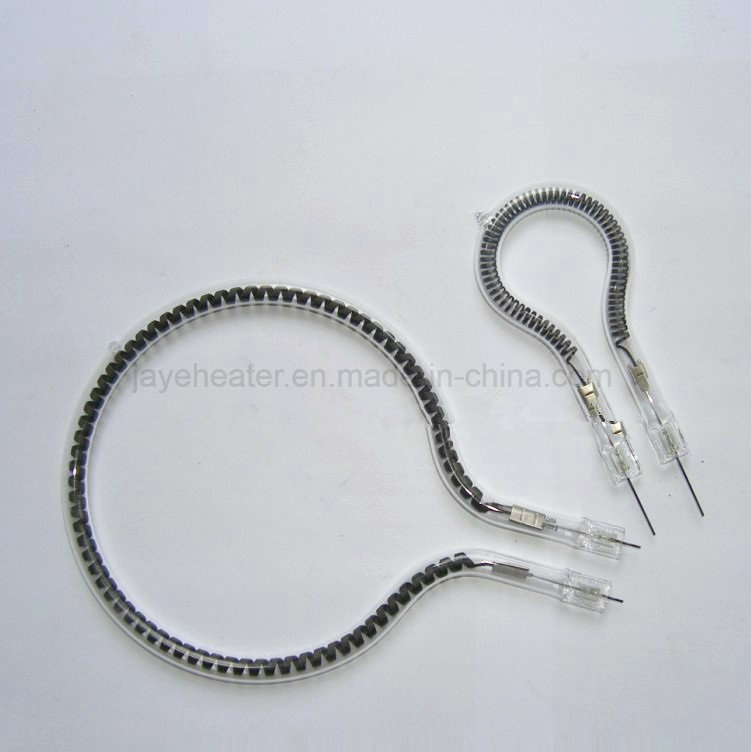

Round Shape Carbon Fiber Far Infrared Heating Element

Name: Round Shape Carbon Fiber Far Infrared Heating Element
Brand: all-electronics-online.com
SKU: 732217452
Availability: InStock
Rating: 4.5 (50 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-CFH006

Product Description

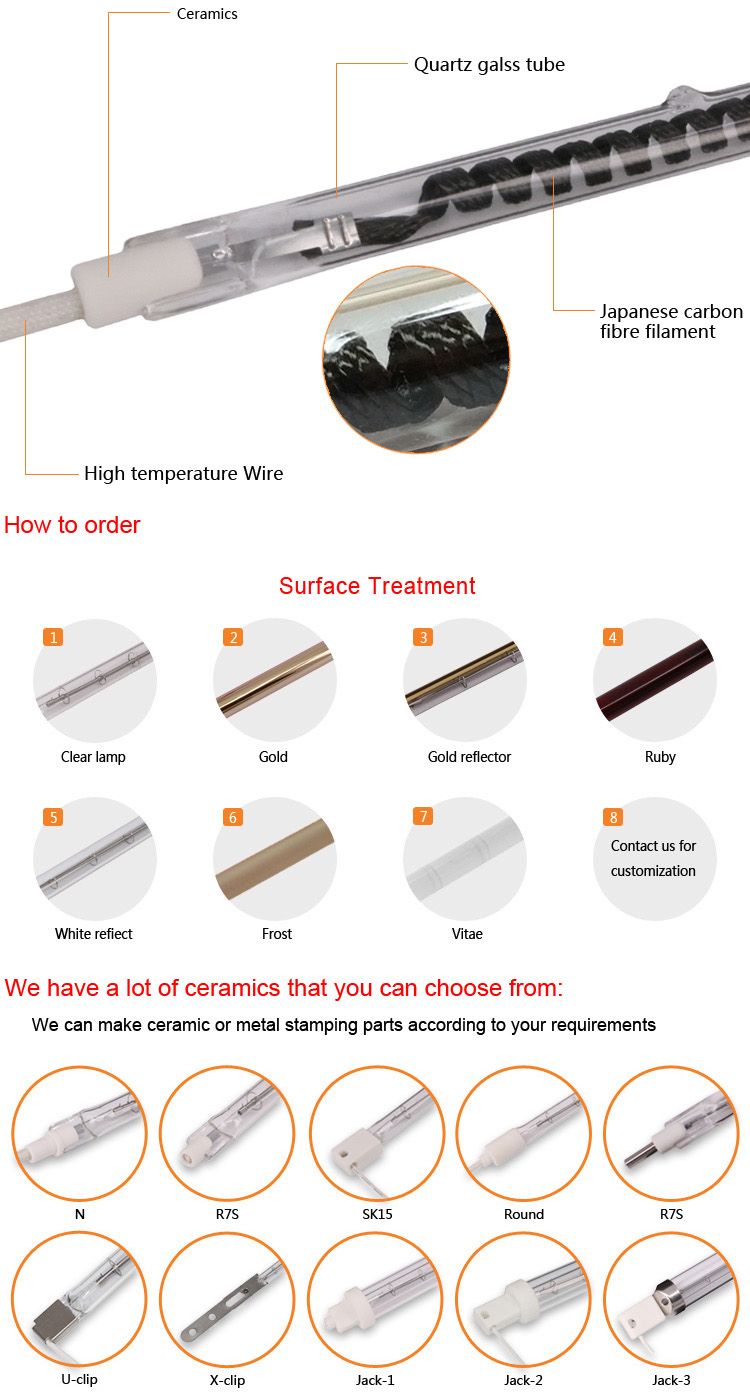

Far Radiant Carbon Fiber Heater Element

infrared heating tube carbon lamp
1. Highlights:

- FIR therapeutic function

- Energy Saving with electricity-heat transformation rate reaching 98%

- Environmental protecting and safe with dim light and no UV radiation

- Above 6, 000 hours of serving life

2. Technical Parameters:

- VOLT: 100, 110, 120, 220, 230, 240V

- WATT: 300-2000W

- HZ: 50-60 HZ

- Electricity saving ratio: 30%

- Infrared normal direction radiant ratio: ≥94%

- Electric heat transformation ratio: ≥98%

- Operating temperature:  ≤1800 Celsius degree

- Highest heat temperature endured: 1100 Celsius degree

- Color temperature: 700-1500 Celsius degree

- Surface temperature: 500-900 Celsius degree

- Continuous servicing hour: 5,000-8,000H

3. Application Area:

- Health care & heating apparatus

- Drying equipment

-Cooking device

- Medical equipment

- Fry & baking equipment

- Brewage & fermentation installation

- Sterilizing device
We can also produce as customers requirements.

Product details:

LW Carbon straight pipe

Model	Power W	Voltage V	Color temperature K	The peak wavelength um	Life H	Diameter MM	Size MM
LW-1	300	100-240	750	4-9.5	6500	8-10	250-600
LW-1	500	100-240	980	3.0-9.3	6500	10-11.5	250-600
LW-1	600	100-240	1000	2.8-8	6000	10-11.5	250-600
LW-1	800	100-240	1050	2.7-7.6	6000	10-11.5	350-800
LW-1	900	100-240	1100	2.6-5.5	5000	10-11.5	350-800
LW-1	1000	100-240	1200	2.5-5	5000	10-11.5	350-800
LW-1	1200	100-240	1250	2.3-4.8	5000	10-11.5	550-1000
LW-1	1500	100-240	1300	2.3-4.5	5000	10-11.5	550-1000

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
