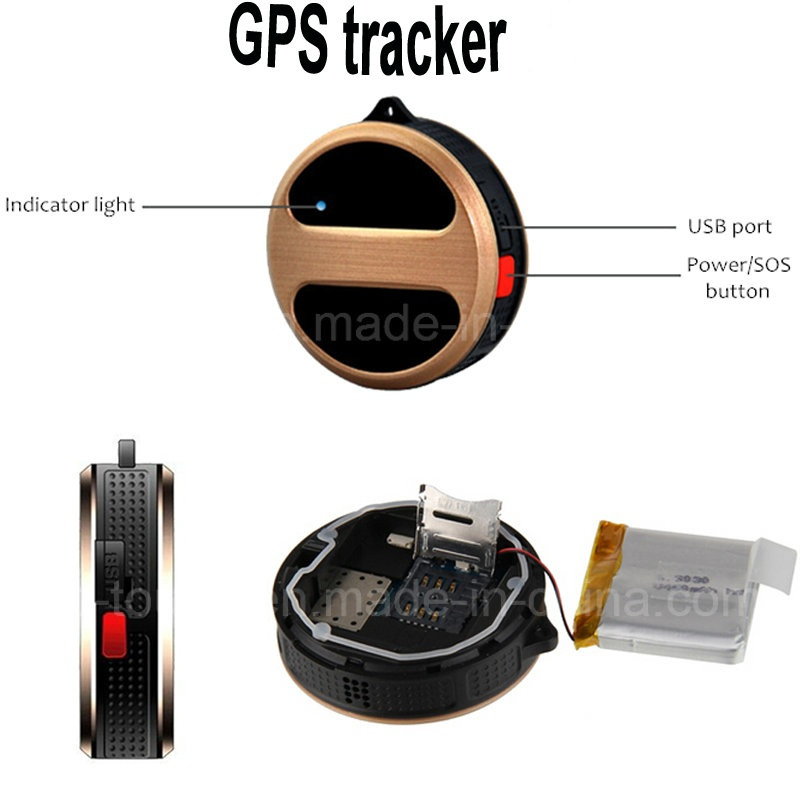

Round Shape Personal GPS Tracker with GPS+Lbs Dual Positioning (T8S)
| Price: |
US $ 20-21/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
T8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature 1: |
Splash Waterproof |
| Feature 2: |
Built-in 450mAh Battery |
| Feature 3: |
GPS+Lbs Dual Positioning |
| Feature 4: |
Support 13 Different Languages |
| Feature 5: |
Sos Function |
| Feature 6: |
Support Android and Ios |
| Feature 7: |
Built-in Four Frequency Pifa Antenna |
| Feature 8: |
Built-in High Sensitivity Ceramic Antenna |
| Feature 9: |
Support SIM Card Slot |
| Feature 10: |
LED Light Indicator |
Product Description

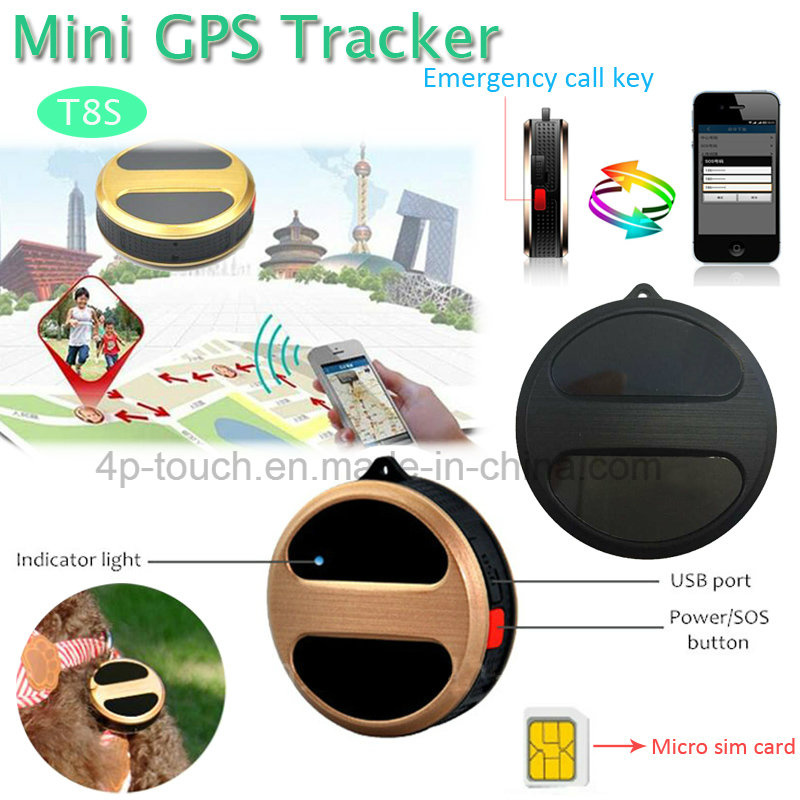

Mini GPS Tracker is a new generation of personal GPS tracking gadget for kids/elderly/pets/personal asset.
It is compact, accurate, discreet and reliable. With Quad-Band GSM connectivity, the GPS Tracker works anywhere in the world.
Specifications:
| Style | Stylish and elegant |
| Size | 44.5(d)X46X25mm |
| Button | One button(power button and SOS button) |
| LED light indicator | Yes |
| GPS antenna | Built-in high sensitivity ceramic antenna |
| GSM antenna | FPC |
| Battery | 450mAh |
| SIM card slot | One slot |
| I/O port | USB port |
| Waterproof level | splash waterproof |
| Chipset | MTK 6261 |
| GPS chip | MTK3337 |

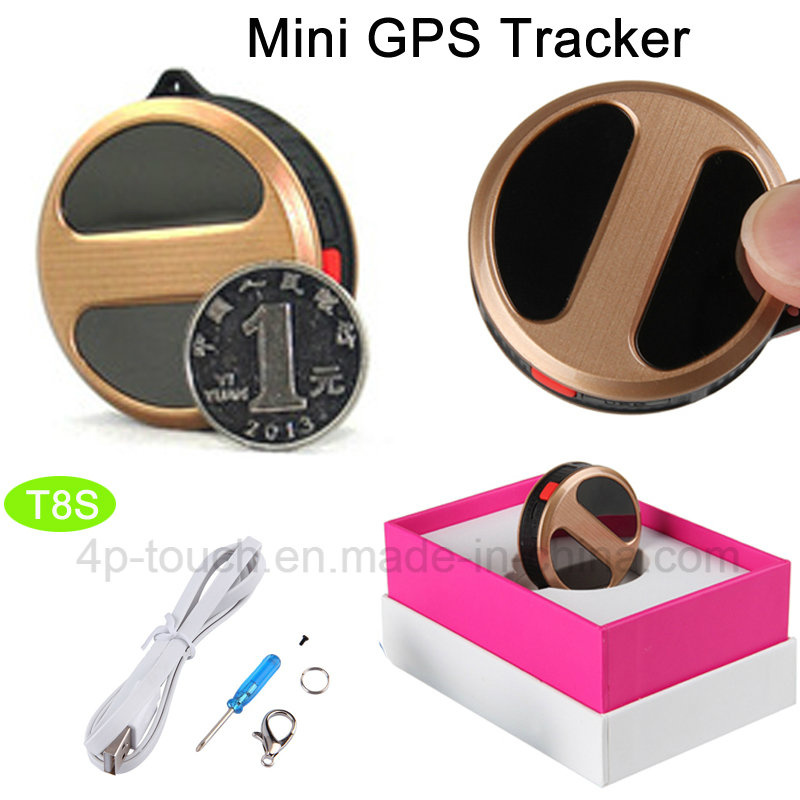

| Accessories | GPS tracker,Quick User Guide,USB cable,Screw driver |
| GPRS | Class12 |
| GPS singals | L1,1575.42MHz C/A code |
| GPS channels | 20 channels |
| GPS chip receiving sensitivity | Tracking sensitivity:-159dBm,acquisition sensitivity:-143dBm |
| GPS Positioning accuracy | 50-200m |
| Minimum standby current | <0.5 Ma |
| Average standby current | <2.5 mA |
| Average working current | <55mA |
| Temperature | -20~70ºC |
| Certification | Can pass national CTA,3C and CE certificate |
| GPS antenna | Built-in high sensitivity ceramic antenna |
| GSM antenna | Built-in four frequency PIFA antenna |
| Speaker | 1208 |
| MIC | Supported |
| Supported OS | Android 2.3 and above, IOS 4.0 and above |
| Familiarity number | Support familiarity number automatic answering, one-way conversation can also be setup |
| Language | Support 13 different languages |
| GSM+GPRS+GPS | GPS+LBS dual mode |
| AGPS | Supported, positioning after 26 seconds' cool start |
| Call function | Interference-free mode, Familiarity Number force feed, monitoring ambient environment |
| Battery management | Ultra-low power consumption of power management,smart stay |
| SOS emergency call | SOS call ,automatic dialing |
| Historical route | Three monthes' historical route can be checked |
| Remote update | Remote update,remote maintenance, |
| Device Status | Light status |
| Charging | Light on when charging; lights off when fully charged; |
| Normal work | Light off |
| GSM fault | Light flashing, restart every ten minutes |
| Emergency help | Light on after pressing red button for 3 seconds If SOS number is set successfully. |
| No power | Light off and no sound when press the power button |

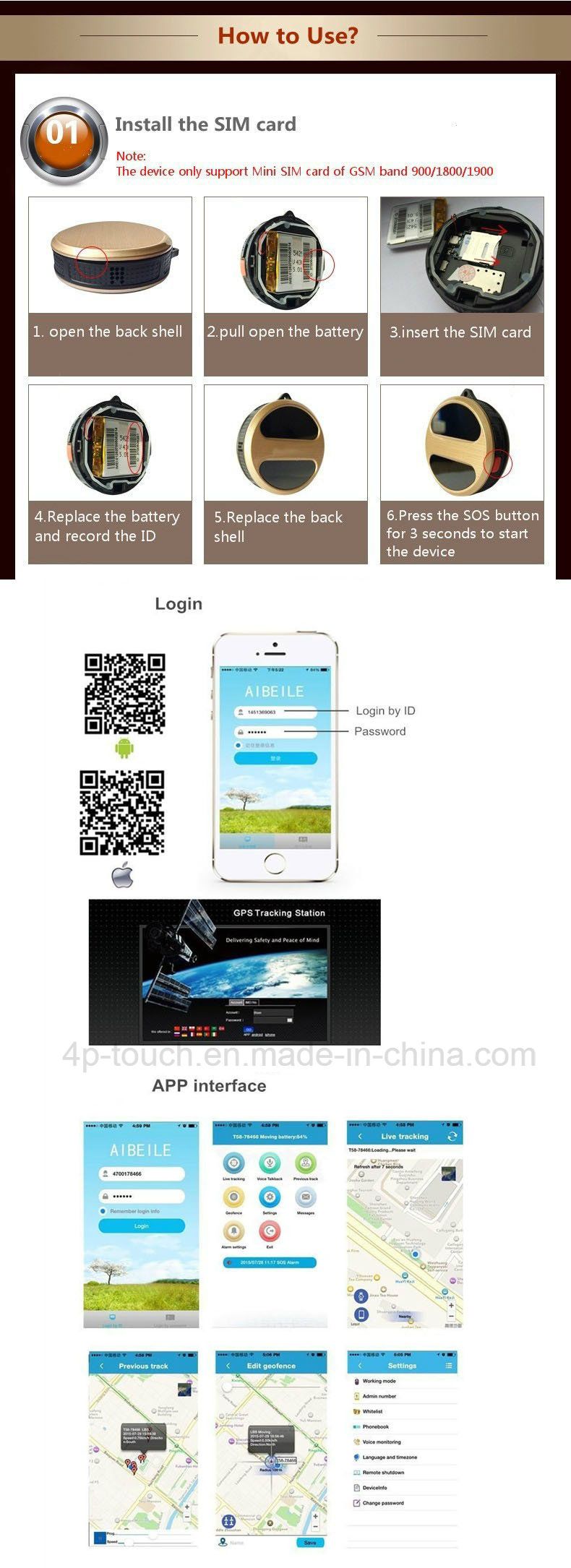

How to use it?
1,Install the SIM card
2 ,Setup apn for access of network
SIM card in some countries need to setup apn before access to GPRS network, please contact the SIM card operator or check the website of the SIM card for the apn information.
Setup APN
| Command | Example | Reply SMS |
| pw,123456,apn,apn name,user name,password,MCCMNC# | apnname=wap.tmobil.cl,
user name=wap, password=wap, MCC=730, MNC=02,
then the SMS will be: pw,123456,apn,wap.tmobil.cl,wap,wap,73002# | apn:wap.tmobil.cl;user:wap;passwork:wap;userdata:73002. |
3,
Install the app
User can check GPS tracker remotely via android/iOS app or PC,
For Android,
You can download the app from "play store" by searching "AIBEILE"
For iPhone,
You can download the app from "app store" by searching "ABEILE"
For PC:
http://202.105.131.199:8010/login.aspx
4 ,Login the app
Click the icon "AIBEILE" on desktop and then login the ID and the password of the device (the default password is 123456). User can login by ID or by username, user need to contact reseller to register an username if need to login by username.
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
*When can I get the prices?
Within 12 hours after we received your inquiries.
Please feel free to contact me if you have any question.
Thank you!
