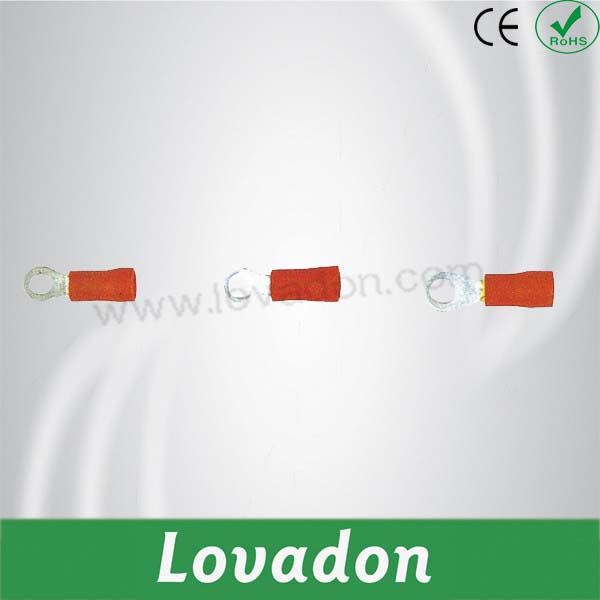

Round Shape Pre-Insulated Terminals (RV1.25-3)

Name: Round Shape Pre-Insulated Terminals (RV1.25-3)
Brand: all-electronics-online.com
SKU: 684301932
Availability: InStock
Rating: 4.5 (92 reviews)

Price:	US $ 0.001/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV1.25-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Characteristics:	Moisture
Contact Material:	Tin Plated Brass
Scope Of Application:	Cable
Operating Frequency:	Frequency
Type:	Single Hole Terminals
Application:	Transmission of Electrical Signals

Product Description

1. Item: Pre-insulation terminal RV1.25
2. Ires Range: AWG#28-#22
3. Temperature range: -25° C~85° C
4. Voltage rating: 250V. AC/DC
5. Voltage: ≥ 1000MΩ
6. Withstand voltage: 1000V. AC
7. Material: (Nylon)UL94V-0
8. Finish: Brass Tin/Plated

Round Shape Pre-Insulated Terminals
Model & Spes	Dimension(mm)						USA Screw	Wire Range (MM2)	A.W.G	Imax(A)	Color
Model & Spes	d	B	L	F	H	D	USA Screw	Wire Range (MM2)	A.W.G	Imax(A)	Color
RV1.25-3	3.2	5.7	17.8	4.95	10	4.3	#4	0.5-1.5	22-16	19	Red
RVS1.25-3.5	3.7	5.7	17.8	4.95			#6
RVM1.25-3.5	3.7	6.6	20.1	6.3			#6
RVL1.25-3.5	3.7	7.2	21.2	7.0			#6
RVS1.25-4	4.3	6.6	20.1	6.3			#8
RVL1.25-4	4.3	8.0	21.5	7.0			#8
RVL1.25-5	5.3	8.0	21.5	7.0			#10
RVL1.25-5	5.3	11.6	27.5	11.1			#10
RV1.25-6	6.5	11.6	27.5	11.1			1/4
RV1.25-8	8.4	11.6	27.5	11.1			5/16
RVS1.25-10	10.5	13.6	31.6	13.9			3/8
RVL1.25-10	10.5	19.2	35	16.0			3/8
RV1.25-12	13.0	19.2	35	16.0			1/2
RV 2-3	3.2	6.6	17.8	4.3		4.9	#4	1.5-2.5	16-14	27	Blue
RVS 2-3.5	3.7	6.6	17.8	4.3			#6
RVM 2-3.5	3.7	6.6	21	7.0			#6
RVL 2-3.5	3.7	8.5	22.5	7.8			#6
RVS 2-4	4.3	6.6	21	7.0			#8
RVL 2-4	4.3	8.5	22.5	7.75			#8
RVS 2-5	5.3	8.5	22.5	7.75			#10
RVL 2-5	5.3	9.5	22.5	7.25			#10
RV2-6	6.5	12	27.6	11			1/4
RV2-8	8.4	12	27.6	11			5/16
RV2-10	10.5	13.6	30.2	13.9			3/8
RVL2-10	10.5	19.2	35	16			3/8
RV 2-12	13	19.2	35	16			1/2
RV 3.5-4	4.3	8	24.5	7.7	12.5	6.2	#8	2.5-4	12-14	37	Black
RVS 3.5-5	5.3	8	24.5	7.7			#10
RVM 3.5-5	5.3	9.5	25.5	8.3			#10
RVL 3.5-5	5.3	12	27.9	7.7			#10
RV3.5-6	6.5	12	27.9	7.7			1/4
RV3.5-8	8.4	15	32	13.5			5/16
RV3.5-10	10.5	15	32	13.5			3/8
RV 5.5-3.5	3.7	7.2	21.4	5.9		6.7	#6	4-6	12-10	48	Yellow
RVS 5.5-4	4.3	7.2	21.4	5.9			#8
RVL 5.5-4	4.3	9.5	25.5	8.3			#8
RV 5.5-5	5.3	9.5	25.5	8.3			#10
RV 5.5-6	6.5	12	28.8	12			1/4
RV 5.5-8	8.4	15	33.7	13.7			5/16
RV 5.5-10	10.5	15	33.7	13.7			3/8
RV 5.5-12	13	19.2	38.1	16			1/2
