| Prod Model: |
power capacitor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
220-1000vac |
| Type: |
Polypropylene Capacitor |
| Package Type: |
Through Hole |
| Application: |
Automobile |
| Structure: |
Power Capacitor |
| Capacitance: |
1-60kvar |
Product Description
Round Three Phase Self-healing Shunt Power CapacitorAir conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.
1. Apply standard: GB/T12747.1-2004 IEC60831-1: 1996
2. Apply condition: Indoor, -25° C~40° C, humidity: <=80%RH, height<=2000MSL
3. Rated voltage: 230VAC. 250VAC. 400VAC. 415VAC. 440VAC, 450VAC. 525VAC. 690VAC
4. Rated output: 1~60kvar
5. Capacitance tolence: 0~10%
6. Voltage endurance: 2Un 10 seconds between T-T, 3000VAC 10 seconds between T-C.
7. Loss angle tangent: Less than 0.1%(rated voltage at 20° C).
8. Ceiling voltage: 1.1Un(root mean square value )
9. Ceiling current: 1.3In(root mean square value )
10. Self-discharge feature: The terminal voltage will reduce below 50V in 3 minutes after disconnecting from power line.
For more information,you can contact and view our website:
www.capacitorfilm.com
|
Series |
Round Three Phase Self-healing Shunt Power Capacitor |
|
Rated Voltage Range |
From 220-1000 VAC |
|
Connection |
3 phase (1 phase on request) |
|
Frequency |
50/60 Hz. |
|
PowerRange |
1-100 Kvar |
|
Dielectric |
Metalized polyprolilene film |
|
Protection |
IP 42 (IP 54 on request) |
|
Discharge Resistors |
Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor |
|
Tolerance |
± 5% |
|
Maximum Ambient Temperature |
-25 º C--50º C (Other temperature range on request) |
|
Average temperature within 24 hours below 40º C& average |
|
temperature with a year below 30º C |
|
Max. Relative Humidity |
≤ 90% |
|
Max. Altitude |
≤ 2000m (Other altitude on request |
|
Over Voltage Tolerance |
1.1 UN (8 hours max. in every 24 hours) |
|
1.15 UN (30 minutes in every 24 hours) |
|
1.2 UN (5 minutes in every 24 hours) |
|
1.3 UN (1 minutes in every 24 hours) |
|
Over Current Tolerance |
30% permanently |
|
Max. Surge Current |
200 times of rated current |
|
Dielectric Loss |
≤ 0.2 Watt / Kvar |
|
Voltage Test |
Between terminals: 2.15 Un for 10 seconds. |
|
Between terminals to container: 3000VAC for 10 seconds |
|
Safety System |
Self protection device |
|
Case Material |
Rust-proof tinplate |
|
Execution |
Indoor, minimum distance between units : 50mm |
|
Standard |
IEC60831 / GBT12747 |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

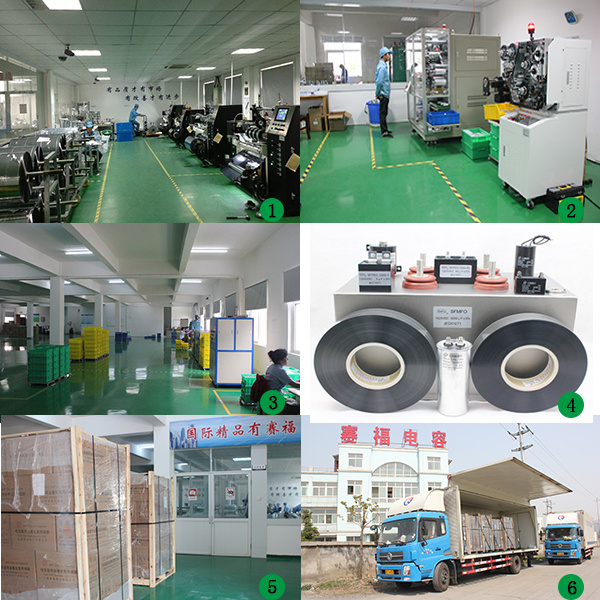

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
