RP-TNC Jack (Male) Bulkhead O-Ring Crimp LMR100 Rg316 Rg174 Cable Connector

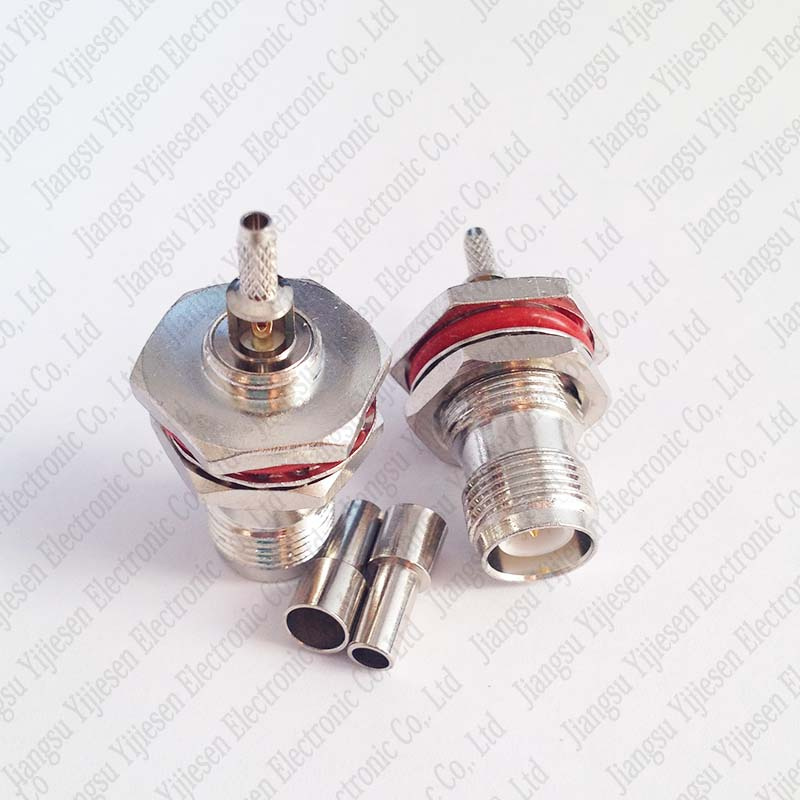

Name: RP-TNC Jack (Male) Bulkhead O-Ring Crimp LMR100 Rg316 Rg174 Cable Connector
Brand: all-electronics-online.com
SKU: 826339725
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 0.45-0.8/Piece
Min Order:	1000/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG174 RG316 LMR100
Materials:	Brass
Plating:	Nickel
Impedance:	50 Ohm
Frequency Range:	DC~1GHz
Temperature Range:	-40~+60
Color:	Silvery
Type:	Generally Coaxial Connector
Coupling Mechanism:	Crimp
Interface Type:	TNC
Brand:	Yjs

Product Description

TNC CONNECTOR SERIES

The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC - 3 GHz.

TNC connectors are produced with standard and reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Amphenol accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality. Other manufacturers may use reverse threading to accomplish reverse polarity keying.

Because of their versatility and durability, TNC connectors are used in many applications.

FEATURES AND BENEFITS

Threaded coupling interface ensures connector with not de-couple in vibration-intense applications
Durable construction
Performance from DC - 3GHz operations in many applications

APPLICATIONS

Antennas
Industrial
Wireless
Military
Broadband

TNC SPECIFICATIONS

Electrical
Impedance	50 Ohm nominal
Frequency Range	0-3 GHz
VSWR
M39012 Straight Connectors	1.3 max
M39012 Right Angle Connectors	1.35 max
Dielectric Withstanding Voltage	1500 VRMS
RF Leakage	-60dB min at 3 GHz
Insulation Resistance	5000 MΩ min
Contact Resistance
Center Contact	1.5 mΩ
Outer Contact	0.2 mΩ
Braid to Body	0.1 mΩ
Insertion Loss	0.18 dB at 9 GHz
Voltage Rating	500 volts peak

Environmental
Temperature Range	-65ºC to +165ºC
Clamp Gaskets	Clamps
Heat Shrink Tubing	Crimps
Hermetic Seals	Pass helium leak test of 2 x 10^-8 cc/sec
Shock	Mil-STD-202, Method 202
Vibration	Mil-STD-202, Method 204 (test cond. D)
Moisture Resistance	MIL-STD-202, Method 106
Corrosion	Mil-STD-202, Method 101 ( test cond. B)
Temperature Cycling	Mil-STD-202, Method 102 (test cond. D)
Altitude	MIL-STD-202 Method 105 (test cond. C)

Mechanical
Mating	7/16 threaded coupling
Cable Affixment (Braid or Jacket)
All Crimps	Hex braid crimp
Clamps	Screw-thread nut and braid clamp
Cable Affixment (Center Conductor)
Crimps	Crimp or solder
All Others	Solder only
Captivated Contact
All Crimps	Yes
Others	Where specified
Cable Retention
Crimps	20-100 lbs
Clamps	20-50 lbs

These characteristics are typical and may not apply to all connectors.

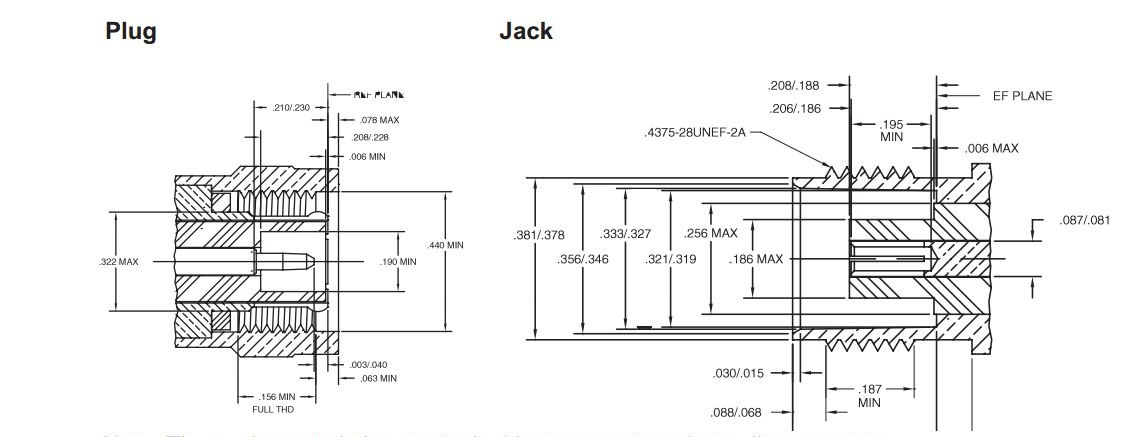

INTERFACE DIMENSIONS
