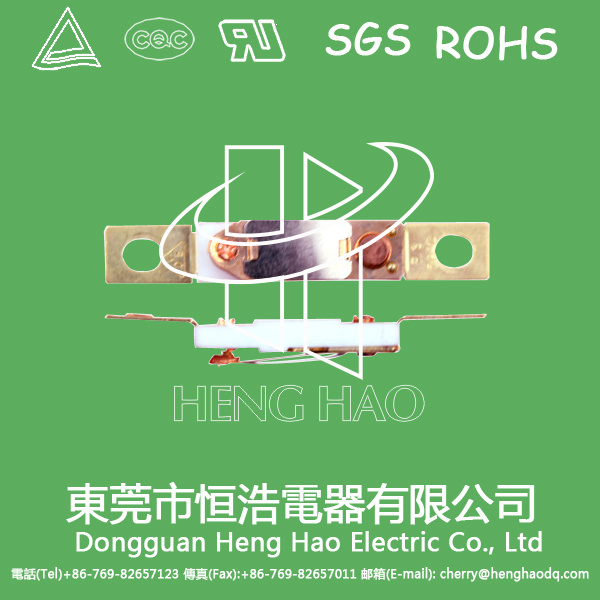

RS-03 Temperature Thermostat, RS-03 Thermostat

Prod Model:	RS-03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life Cycle:	10000 Times

Product Description

RS03 thermal Protector / RS03 thermostat / RS03 temperature protector


1. RS03 thermal protector's Principle and structure
Quickly respond to the variation of temperature, and has the function of automatic reset. No current flows through bimetal so the influence of self-heating effect is avoided and it leads to a long service life with little change in temperature. Environmental friendly high-power sliver contact is adopted, being accord with the demands of safety approval for export.
2. RS03 thermostat's Specification
2.1. Electrical rating and current: AC-250V 10A; AC-125V 16A
2.2. Normally Closed, automatically reset
2.3. Operating temperature range: 40-160° C (one step for every 5° C )
2.4. Temperature tolerance: ± 3° C± 5° C
2.5. Reset Temperature range: Operating temperature decrease by 15~45° C
2.6. Contact Closure resistance: ≤ 50MΩ
2.7. Insulation resistance: ≥ 100MΩ
2.8. Life cycles: 10000 times


3. RS03 thermal protector's Application

RS03 thermostat is applicable to the thermal radiation control on various electric heating appliance including electric Hair Dryer, Electric Fan Heaters, Popcorn Machines, Electric Ovens, Dish Dryers, Electric heaters, dehumidifiers, stewpots etc.

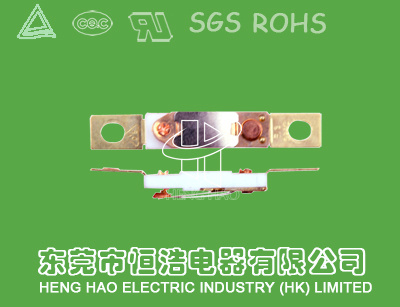

4. RS03 temperature switch's Product Drawing

The product UL, CQC, VDE and RoHS certification approval.
