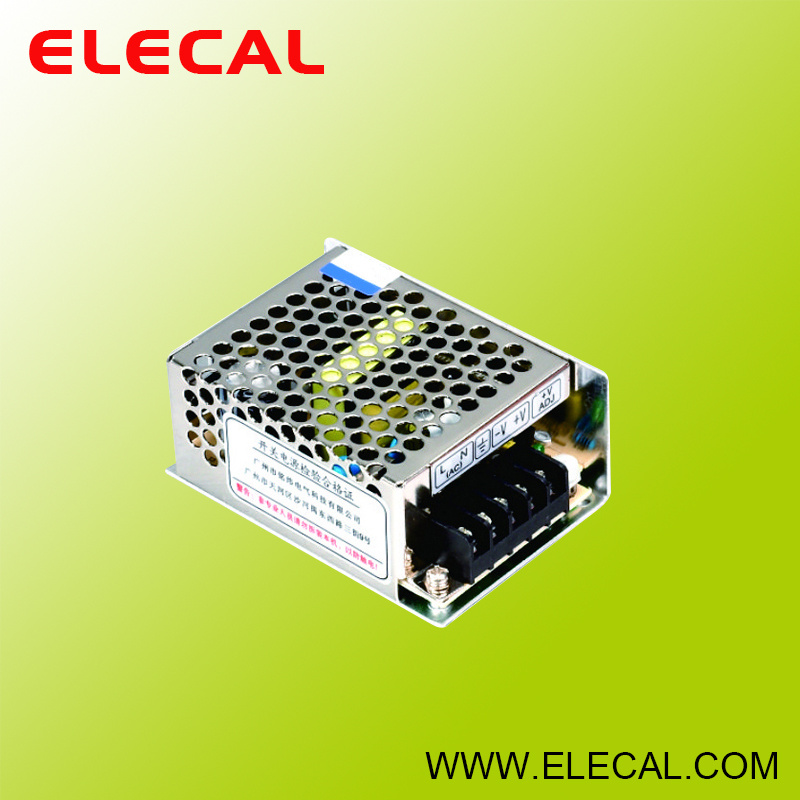

RS-25 Single Output Switching Power Supply

Name: RS-25 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828969905
Availability: InStock
Rating: 4.8 (50 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS-25
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	25W
Input Voltage:	88~264VAC 125~373VDC
Brand:	Elecal

Product Description

MODEL		RS-25-3.3	RS-25-5	RS-25-12	RS-25-15	RS-25-24	RS-25-48
OUTPUT	DC VOLTAGE	3.3V	5V	12V	15V	24V	48V
	RATED CURRENT	6A	5A	2.1A	1.7A	1.1A	0.57A
	CURRENT RANGE	0 ~ 6A	0 ~ 5A	0 ~ 2.1A	0 ~ 1.7A	0 ~ 1.1A	0 ~ 0.57A
	RATED POWER	19.8W	25W	25.2W	25.5W	26.4W	27.36W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	200mVp-p
	VOLTAGE ADJ. RANGE	2.85 ~ 3.6V	4.75 ~ 5.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	22 ~ 27.6V	42 ~ 54V
	VOLTAGE TOLERANCE Note.3	±3.0%	± 2.0%	±1.0%	± 1.0%	± 1.0%	± 1.0%
	LINE REGULATION Note.4	±0.5%	± 0.5%	±0.5%	± 0.5%	± 0.5%	± 0.5%
	LOAD REGULATION Note.5	± 2.0%	± 1.0%	±0.5%	± 0.5%	± 0.5%	± 0.5%
	SETUP, RISE TIME	1800ms, 23ms/230VAC 4000ms, 30ms/1 15VAC at full load
	HOLD UP TIME (Typ.)	80ms/230VAC 14ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 ~ 264VAC 125 ~373VDC (Withstand 300VAC surge for 5sec. Without damage)
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY(Typ.)	73.5%	78.5%	81.5%	83.5%	86%		85%
	AC CURRENT (Typ.)	0.7A/115VAC 0.4A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVERLOAD	110 ~ 180% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	3.8 ~ 4.45V	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V	55.2 ~ 64.8V
		Protection type : Shut off o/p voltage, clamping by zener diode
	WORKING TEMP.	-20 ~ +70 C (Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
ENVIRONMENT	STORAGE TEMP., HUMIDITY	-40 ~ +85 C, 10 ~ 95% RH
	TEMP. COEFFICIENT	± 0.03%/C (0~50C)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC (Note 6)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KV AC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 C/ 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B,EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	309.7Khrs min. MIL-HDBK-217F (25 C)
	DIMENSION	785128mm (LWH)
	PACKING	0.2Kg; 60pcs/13Kg/0.46CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12M twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load.
