RS232|RS485 to 4-20mA|0-5V D-a Converter with Modbus RTU
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
ISO DA Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Precision: |
>0.2% |
| Input: |
RS232/485 |
| Output Signal: |
4-20mA/0-10V/0-5V/0-10V/0-75mv, etc |
| Communication Port: |
RS232/485 |
| Package: |
DIN35 Rail Mounting |
| Operating Temperature: |
-45-+85 Cel. Deg, . |
| Highlight: |
Small Size, Customized Product Is Available |
| Usage: |
Consumption Sensor, Acceleration Sensor, Ray Sensor, Position Sensor, Liquid Level Sensor, Speed Sensor, Angular Velocity Sensor, Thermal Sensor, Pressure Sensitive Sensor |
Product Description

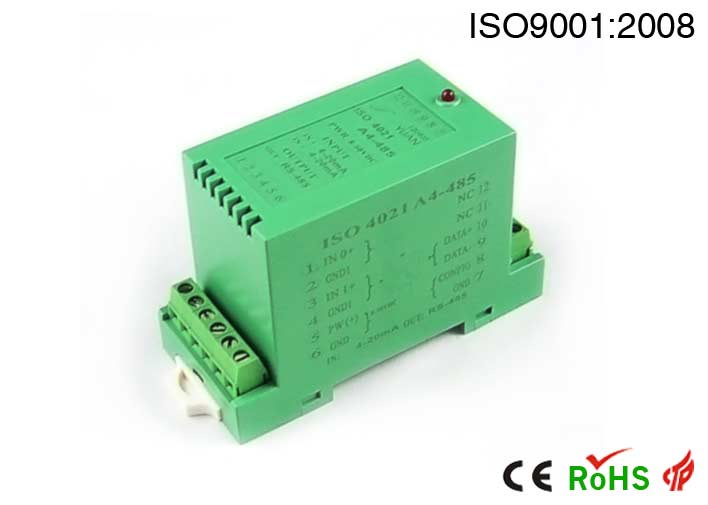

RS485/232 to 4-20ma/0-5V/0-10V/0-2.5V D-A Converter with Modbus RTU
ISO DA Series
RS485|RS232 to 4-20mA|0-5V D-A Converter Features:>>Low cost. small size. analog signal output precision>0.2%.
>>wide power supply range: 8 ~ 50VDC.
>>Converting RS-485/232 digital signal into standard analogsignal output.
>>Can be remotely reconfigured for modules accuracy.
>>Signal output/ communication interface 3kVDC isolation.
>>High reliability. convenient to programme. easy to do installation and wiring.
>>Setting module address and baud rate. etc is available byprogramming
>>Realize remote acquisition by setting the host to read ISO DA data.
>>Support Modbus RTU communication protocol
RS485|RS232 to 4-20mA|0-5V D-A Converter Applications:>>Standard analog signal outputs.
>>Intelligent building control. security and engineering applications.
>>RS-232/485 industrial automation control system.
>>Industrial fields signal isolation and long-term transmission.
>>Debugging and controlling of equipment.
>>Remote transmission and signal restore of sensor signal.
>>Given industrial field data to an actuator.
>>Development of medical and industrial products.
>>4-20mA signal output.

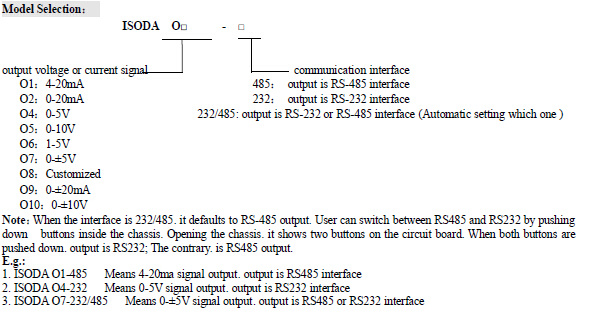

RS232|RS485 to 0-5V|4-20MA|0-10V Converter Model Selection

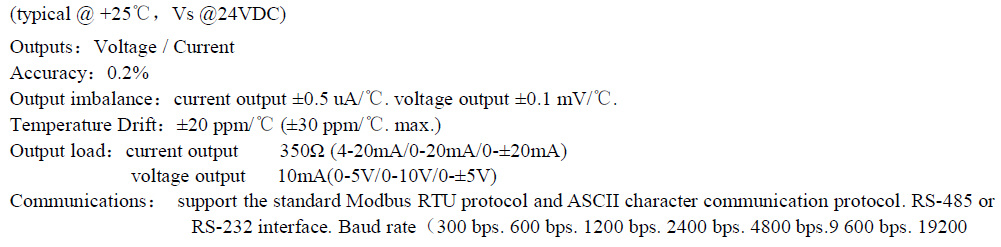

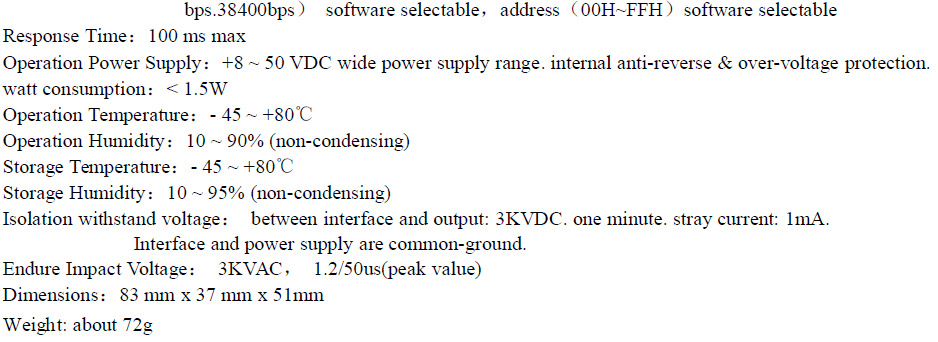

RS232|RS485 to 0-5v|0-10V D-A Converter General Parameters:
Note: Please tell me your input, output and amount of channels when placing orders, many thanks for your support,
