| Prod Model: |
PV3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| MPPT: |
40A |
| PV Input: |
15 to 55VDC |
| AC Bypass: |
Provide AC Power for Load When DC Voltage Low |
| AC Charge Auto-Starts: |
Battery DC Voltage Low to 11V |
| PV Charge: |
in Priority |
| Battery Energy: |
in Priority |
| AC Charger: |
Max 70AMP |
| Communication Interface: |
RS232 |
Product Description
Solar power inverter 1kw-3kw integrated MPPT charge controller
-- solar power inverter rated power: 1-3kw (off grid), higher power coming soon, and grid-tied units
-- solar power inverter, solar charger dc ac nominal: 12vdc/24vdc, 220vac, 110vac
-- home power inverter Ac charger: Max 70amp
-- solar power system, solar charge controller Pv charger(MPPT design): 45amp
-- solar system PV energy in priority for re-charge battery, or provide load in small load power
-- solar inverter with Ac charger will be activated when battery voltage low than 11vdc, ac will provide power for load
On condition that pv insufficient and battery exausted(10.3vdc per cell)
-- solar system Battery energy supply in priority means secure power backup solution.
Solar power system, solar inverter, solar power inverter, pure sine wave solar inverter enviromental, economic, power-saving application:
Home use for household electric appliance.
Solar battery charge controller specification:
Solar power inverter specification

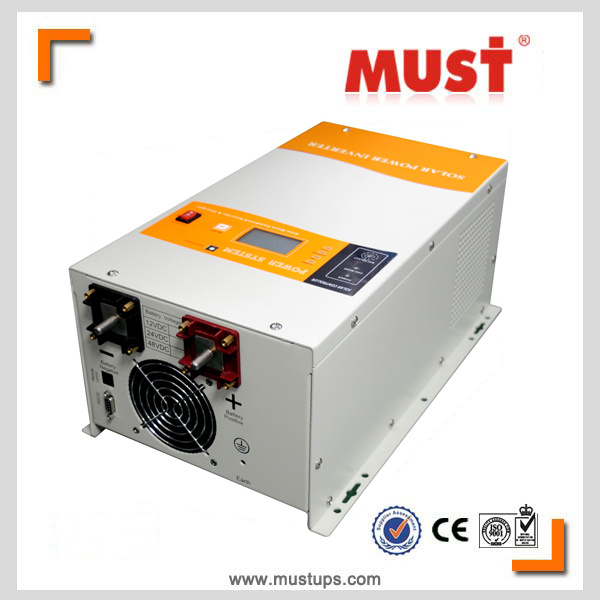

Solar power inverter electrical view
Solar power inverter back view terminals block
Solar power inverter back view RS232 port
Solar power inverter battery cable accessory
| Model | PV1012C | PV1024C | PV2012C | PV2024C | PV3012C | PV3024C |
| Rated Output Power(W) | 1000 | 2000 | 3000 |
| Line mode specifications |
| Input Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Input Frequency | 50Hz@40-80Hz/60Hz@40-80Hz |
| Output Voltage Waveform | Pure Sine Wave |
| Output Short Circuit Protection | Current limit (Fault after 10s) |
| Inverter Mode Specifications |
| Output Voltage Waveform | Pure Sine Wave |
| Power Factor | 1 |
| Output Voltage (V) | 110Vac/120Vac/220Vac/230Vac ±10% |
| Output Frequency (Hz) | 60Hz ± 0.3Hz / 50Hz ± 0.3Hz |
| Auto Tracking Main Frequency | Yes (Following main first connection) 50Hz @40-80Hz 60Hz @40-80Hz |
| Output Voltage Regulation | ±10% rms |
| Efficiency | >80% |
| Over-Load Protection | (110%150 ±10%: Fault (shutdown output) after 20s |
| Surge Rating | 3000VA | 6000VA | 9000VA |
| Capable Of Starting Electric Motor | 1HP | 1HP | 2HP |
| Inverter Breaker Size | 10A | 30A |
| DC Input Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Min DC Start Voltage | 11V/22V |
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc for 12V battery 21.0Vdc ± 0.6Vdc for 24V battery |
| Low DC Input Shut-Down | 10.0Vdc ± 0.3Vdc for 12V battery 20.0Vdc ± 0.6Vdc for 24V battery |
| High DC Input Alarm & Fault | 16.0Vdc ± 0.3Vdc for 12V battery 32.0Vdc ± 0.6Vdc for 24V battery |
| High DC Input Recovery | 15.5Vdc ± 0.3Vdc for 12V battery 31.0Vdc ± 0.6Vdc for 24V battery |
| Power Saver | Load ≤25W |
| Charger Mode Specifications |
| Input Voltage | 110Vac/120Vac/220Vac/230Vac |
| Input Voltage Range | 96~127Vac/ 155~265Vac |
| Output Voltage | 110Vac/120Vac/220Vac/230Vac ±10% |
| Charge Current |
| Charge Current Regulation | Charge Current Adjustable: 25%, 50%, 75%, 100%. (Optional) |
| Battery Initial Voltage | 0-15.7Vdc / 31.4Vdc (can operate with 0V battery) |
| Charger Short Circuit Protection | Circuit breaker |
| Over Charge Protection | Bat. V ≥15.7Vdc/ 31.4Vdc , beeps 0.5s every 1s & fault after 60s |
| General Specifications |
| Certification | CE / ISO9001 |
| Operating Temperature Range | 0°Cto 40°C |
| Storage Temperature | -15°C to Sheet3!C3 |
| Operation Humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Size | 1012C / 1024C / 2012C / 2024C / 3012C / 3024C: 460x260x185MM |
| Gross Weight | 21KG | 26KG | 29.8KG |
| MPPT solar controller function |
| Rated voltage | 12/24V DC |
| Rated charge current | 40A |
| Load current | 15A |
| Input voltage range | 15-55V DC |
| Max. PV open circuit array voltage | 55V DC |
| Typical idle consumption | At idle< 10mA |
| Overload protection(DC load) | 2.0 * Inom>5s; 1.5 * Inom>20s; 1.25 * Inom temperature controlled |
| Bulk charge | 14.6V(default) | 29.2V(default) |
| Floating charge | 13.4V(default) | 26.8V(default) |
| Equalization charge | 14.0V(default) | 28.0V(default) |
| Over charge disconnection | 14.8V | 29.6V |
| Over charge recovery | 13.6V | 27.2V |
| Over discharge disconnection | 10.8V(default) | 21.6V(default) |
| Over discharge reconnection | 12.3V | 24.6V |
| Temperature compensation | 13.2mV/C | 26.4mV/C |
| Lead acid battery settings | Adjustable |
| NiCad battery settings | Adjustable |
| Load control mode | 1.Low Voltage Reconnect(LVR):Adjustable; 2.Low Voltage Disconnect(LVD):Automatic disconnection; 3.Reconnection:Includes warning flash before disconnect and reconnection |
| Low voltage reconnect | 12.0-14.0Vdc | 24.0-28.0Vdc |
| low voltage disconnet | 10.5-12.5Vdc | 21.0-25.0Vdc |
| Ambient temperature | 0to 40°C(full load) 40-60°C(de-rating) |
| Altitude | Operating5000m, Non-Operating 16000m |
| Protection class | IP21 |
| Battery temperature sensor | BTS-optional remote battery temperature sensor for increased charging precision |
| Terminal size(fine/single wire) | #8 AWG |
