| Prod Model: |
S2100S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
0.4~11kw |
| Output Frequency Range: |
0~400Hz |
| Control: |

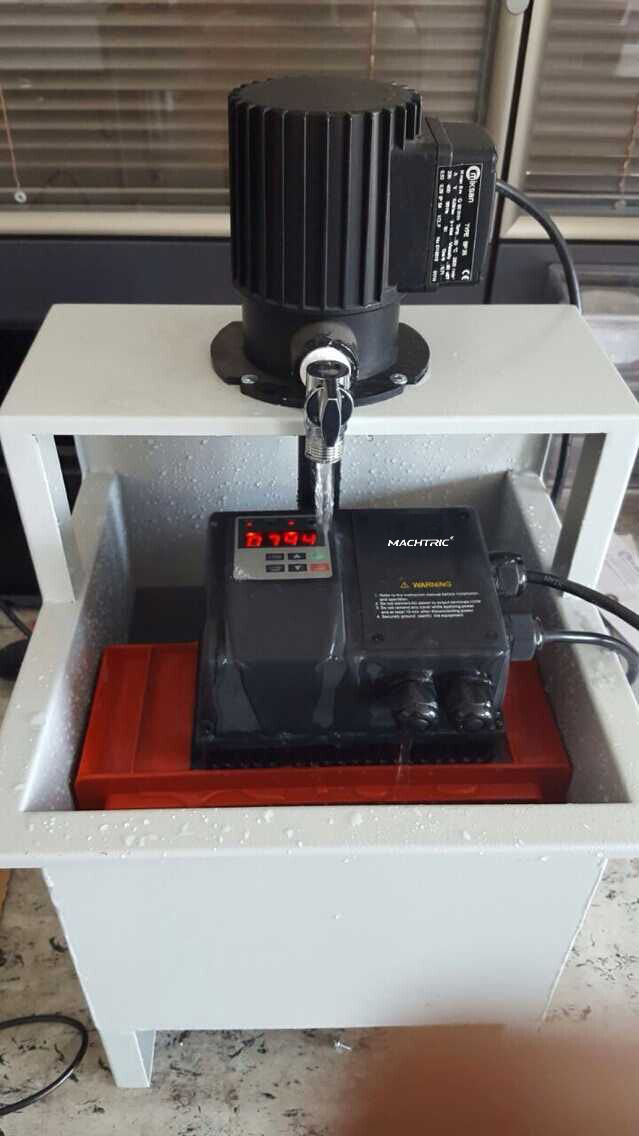

Waterproof |
| Protection: |
Overload |
| Warranty: |
12 Months |
| Protective Structure: |
IP65 |
| Color: |
OEM |
| Down Time: |
Minimum |
| Pid Control: |
Built-in Pid Control |
| Rei: |
Built-in |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |

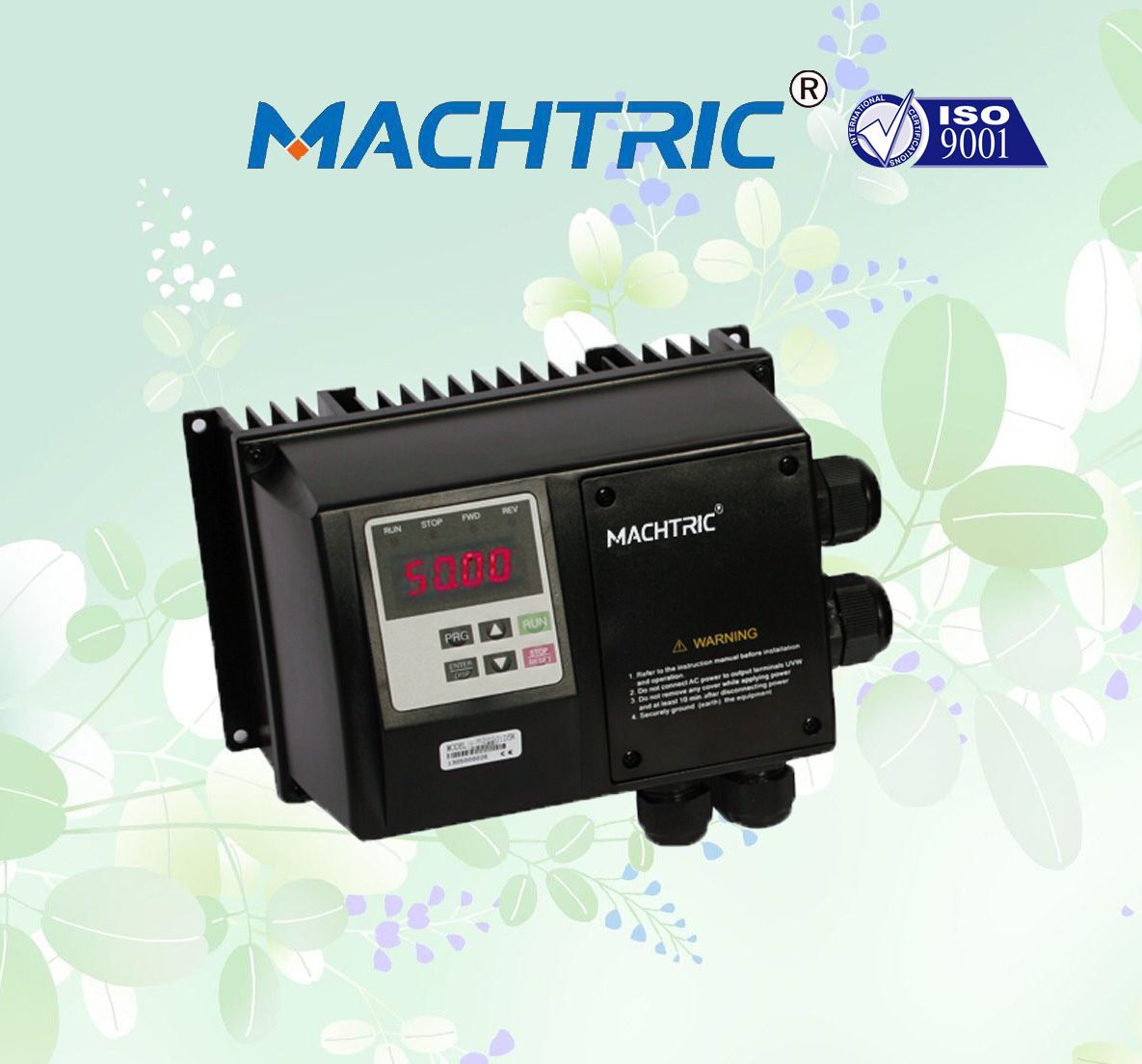

Product Description
1.Can be used together with the pump.
2. Widely used in industries of plastic, textile, powder and so on.
3. power range: 220V(0.4~3.7kw) 380V(0.75~11kw)
Product specification:
| Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| | Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| | Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| | Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| | Output Frequency Accuracy | 0.01 Hz. |
| | V/F Control | Setting V/F curve to satisfy various load requirements |
| | Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| | Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| | Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
| | | 8 multifunitinal output terminals, 1 inverter can control 4 ciircular variable frequency pumps |
| | Acceleration/deceleration Time Setting | 0~6000 s acceleration/deceleration time can be set individually |
| Other functions | PID Control | Built-in PID control |
| | RS485 | Standard RS485 communication function (MODBUS) |
| | Frequency Setting | Analog input 0~10V, 0~20, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN |
| | Multi-speed | Eight multifunction input terminals,15 section speed can be set |
| | Automatic voltage regulation | Automatic voltage regulation function can be selected |
| | Counter | Built-in 2 group of counters |
| | Overload | 120%,60second (variable torque) |
| | Over Voltage | Over voltage protection can be set |
| | Under Voltage | Under voltage protection can be set |
| | Other Protections | Overheat,output shortcircuit,over current,and parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC~40ºC(non-freezing) |
| | Ambient Humidity | Max. 95% (non-condensing) |
| | Altitude | Lower than 1000. |
| | Vibration | Max. 0.5 g |
| Structure | Cooling Mode | Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling |
| | Protective Structure | IP 65 |
| Model | Suitable Motor | Output Current | Assembly Dimension(mm) |
| W | H | D | A | B | b |
| S2100-2S0.75GS | 0.75KW | 5 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-2S1.5GS | 1.5KW | 7 |
| S2100-2S2.2GS | 2.2KW | 11 |
| S2100-4T0.75GS | 0.75KW | 2.7 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-4T1.5GS | 1.5KW | 4 |
| S2100-4T2.2GS | 2.2KW | 5 |
| S2100-4T3.7GS | 3.7KW | 8.6 | 235 | 154 | 179 | 125 | 221 | M4 |
| S2100-4T5.5GS | 5.5KW | 12.5 |
| S2100-4T7.5GS | 7.5KW | 17.5 |
| S2100-4T11GS | 11KW | 24 |
Package:export standard package.
Delivery time: 7 weekdays after get the payment.
Delivery mode: Ocean shipping, Air transport, Express delivery/( Choose by the customer).
Payment terms: L/C/ T/T / Western Union / MoneyGram.
About us:
Our products have been broadly applied in Textile, Packing, Plastic, Ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment.
We also have other frequency inverter. If you have any questions, please don't hesitate contact with me.
Wendy
TEL:86-18850877082
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.

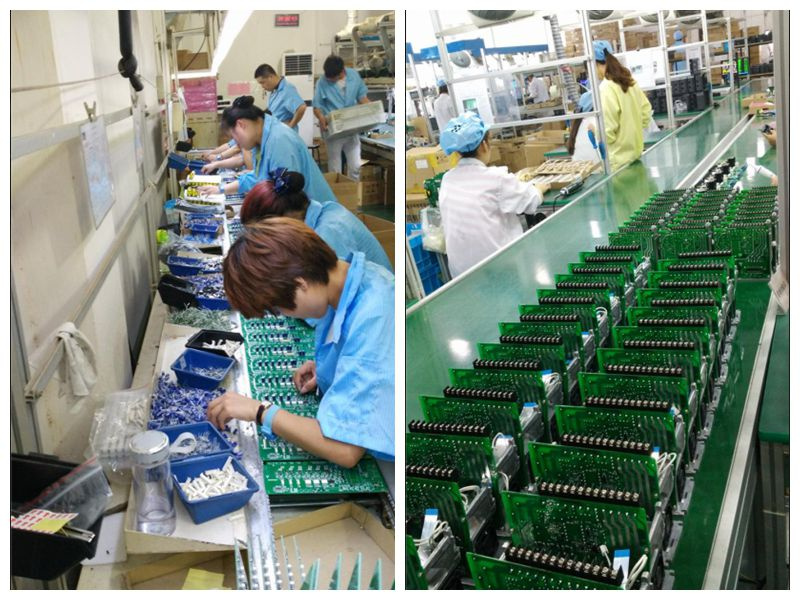

Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
