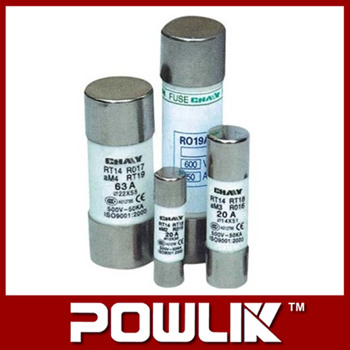

Rt14 Wholesale Ceramic Thermal16A Fuse with Base

Name: Rt14 Wholesale Ceramic Thermal16A Fuse with Base
Brand: all-electronics-online.com
SKU: 773641495
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 0.08/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RT14
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	2A-63A
Rated Voltage:	300V
Size:	10*38
Breaking Capacity:	High
Type:	Resettable Fuse
Usaga:	Low Voltage
Standard:	IEC

Product Description

RT14 Wholesale Ceramic Thermal16A Fuse With Base

1.Applicable Range:Base

Fuse Base used in the situation of AC50Hz and up to 400V rate voltage and up to 63 rate current. Protection of overload, and short-circuit current for power supply.

2.Applicable Standards: Base

National Standard: GB 13539

International Standard: IEC 60269

3.Features: Base

1. Fuse Base made of high quality material, it has long service life. The fusant is made of pure copper strip. The fusion tube is made of high strength china. The extinguishing medium is made of pure quartz sand.

2. Fuse Base easy installation and maintenance. The terminal of fusant contacting with the end-plate (or the connecting plate) use the technology of spot welding.

3.Safe indication. The fuse with the indicator can be show the fusing when the indicator pop-up.

4.Durable and reliable

4.Technical Parameters: Base

1. Product Name: RT14 Ceramic Thermal Fuse Base

2. Model: RT14

3. Rated voltage: 400V

4. Rated current: 2~63A

5. Frequency:AC 50/60Hz

6. Size: 10*38mm for Fuse Base

Type	Rated voltage	Rated current(A)		Rated breaking capacity		Rated power dissipation of fuse link(W)	weight of holder(g)	Weight of fuse link(g)
		Holder	Fuse link	1kA	cos
RT14-20	400V	20	2,4,6,8,10,12,16,20	100	0.1~0.2	≤3	40	8
RT14-32		32	2,4,6,8,10,12,16,20,25,32			≤5	155	20
RT14-63		63	16,20,25,32,40,50,63			≤9.5	240	55
