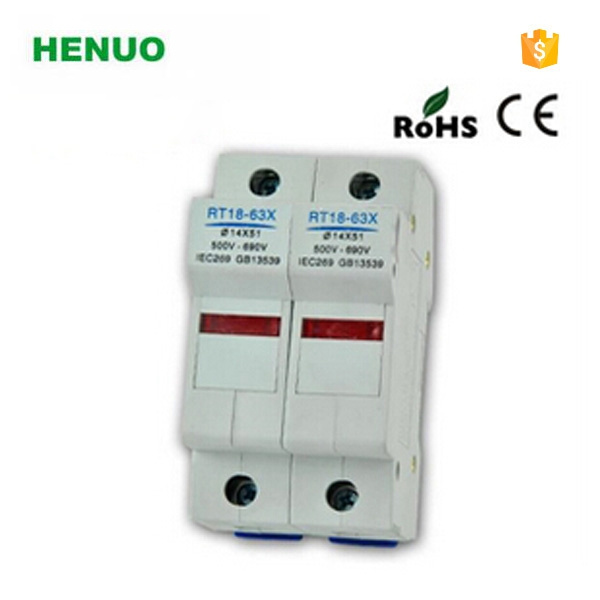

Rt18-63 Rt18L-125 Rt14-20 Rt14-32 Rt14-63 Cylindrical Contact Cap Fuse

Name: Rt18-63 Rt18L-125 Rt14-20 Rt14-32 Rt14-63 Cylindrical Contact Cap Fuse
Brand: all-electronics-online.com
SKU: 698270632
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	rt14 rt18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Curerent:	200A,400A,630A
Rated Voltage:	AC 400V/500V/690V
Breaking Capacity:	High
Type:	Temperature Fuse
Usaga:	High Voltage
Standard:	GB13539\IEC60269 and BS88

Product Description

RT14 Series cylinder cap fuse

Scope of application

It is applicable distributing equipment in indusrtial electrial distributing installation of AC50Hz(or60Hz) rated voltage 400V ,rated current 63A and below.against damage due to overload or short eircuit.

Type and meaning

Main technical parameter

Type	Rated voltage	Rated cuttent		Rated breaking capacity		Rated power dissipation of fuse-link	Weight of Holder	Weight of fuse-link
Type	Rated voltage	Holder	Fuse-link	l1 kA	COSφ	Rated power dissipation of fuse-link	Weight of Holder	Weight of fuse-link
RT14-10	500V		2,4,6,8,10	100	0.1~0.2	≤3		4
RT14-16			2,4,6,8,10,12,16			≤3		6
RT14-20		20	2,4,6,8,10,12,16,20			≤3	40	8
RT14-32		32	2,4,6,8,10,12,16,20,25,32			≤5	155	20
RT14-63		63	16,20,25,32,40,50,63			≤9.5	240	55

Outline and installation

1,The outline size of the fuse-link see the following map and table

Type

Size

Hmax

RT14-10

10×25

25±0.6

10.3±0.1

10.5

RT14-16

8.5×31

31±0.8

8.5±0.1

13.8

RT14-20

10×31

38±0.6

10.3±0.1

16.2

RT14-32

14×51

51	+0.6
	-0.1

14.3±0.1

RT14-63

22×58

58	+0.1
	-2.0

22.2±0.1

13.5
