| Prod Model: |
ISO Z-W-P-O-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
PT100/PT10/Cu100/Cu50, etc |
| Output Signal: |
0-20mA/4-20mA/0-5V/0-10V, etc |
| Power Supply: |
5V, 12V, 15V, 24VDC, etc. |
| Installation: |
DIP 24pin PCB-Mounted Type |
| Operation Temperature Range: |
-40--+85celsius Deg. |
| Installation Type: |
PCB-Mounted |
| Accuracy: |
0.2 |
Product Description

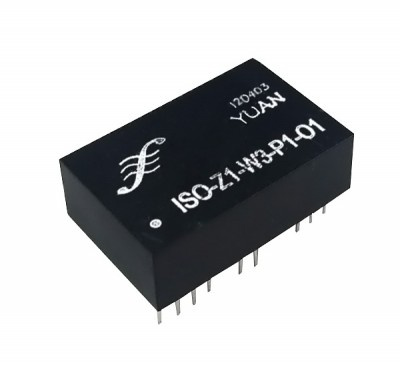

RTD PT100 to 4-20mA Temperature Signal Transmitter DIP 24PIN Package
RTD PT100 to 4-20mA Converter Features:
-Three-wire, four-wire or two-wire PT100 thermal resistance signal input
-Accuracy, Linearization error grade: 0.2
-Linearization disposal and long line compensate circuit
-Isolation Voltage: 3000VDC input/power/output
-Power: 5V\12V\15V or 24VDC
-International standard signal output: 4-20mA/0-5V/0-10V etc.
-Small size, low cost
-Standard, UL94V-0 anti-fire
-Industrial temperature range: - 45 ~ + 85 centigrade
PT100 to 4-20mA Converter Applications:
-PLC/DCS systemic temperature signal isolation, acquisition.
-Industrial high accuracy temperature measurement
-Thermal resistance signa isolation and temperature control
-Ground-loop elimination
-Temperature sensor signal converter to standard signal
-Oil temperature measurement and alarm
-No distortion in long distance signal transmission
-Electric supervision, medical application and safe isolated bar.
PT100 to 4-20mA Converter Description:
ISO W-Z Series is a mixed integrate circuit that thermal resistance signal as temperature high/low Isolation converter to linearity standard signal to temperature. It integrated a set of isolated DC/DC Converters, Linearization disposal and long line compensate circuit, can bring two group of each other Isolated power to input port for magnifying circuit, modulating circuit powered and output port Demodulation. They can meet industrial wide temperature, humidity, shaky poor operation condition.
Part number and description:
ISO Z - W - P - O-D
Type
Z1: PT100 Z2: PT10
Z3: Cu100 Z4: Cu50
Input T Range
W1: -20-100 grade. C
W2: 0-100 grade. C
W3: 0-150 grade. C
W4: 0-200 grade. C
W5: 0-400 grade. C
W6: User-defined
Power Supply
P1: DC24V P2: DC12V
P3: DC5V P4: DC15V P5: User-defined
Output Signal
O1: 4-20mA O2: 0-20mA O4: 0-5V O5: 0-10V
O6: 1-5V O7: User-defined
Examples:
1. Signal Input: PT100, temperature range: 0~100 grade. C; Signal output: 4-20mA; Power: 24V
Part No.: ISO Z1-W1-P1-O1
2. Signal input: Cu50, temperature range: 0~100 grade. C; Signal output: 0-5V; Power: 12V
Part No.: ISO Z4-W2-P2-O4
Continue isolation voltage value 3000VDC P
Ower Vin range: ± 10%Vin
Jointing temperature(10sec. ) +300 grade. C
Vout signal load(MIN) 2kΩ
