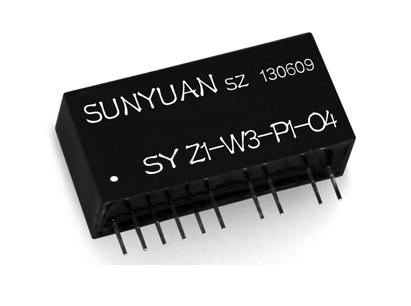

RTD Thermal Resistance Signal Transducer (SIP12 PIN)
SY Z-W Series
Features:
Three-wire, four or two-wire PT100/Cu50 signal input.
Accuracy, Linearization error grade:0.2 (Relative Temperature).
Built-in linear processing and long-term compensation circuit.
Isolation Voltage: 3000VDC between power and singal I/O.
Auxiliary Power Supply: 5V, 12V, 15V or 24VDC.
International standard signal output: 4-20mA/0-5V/0-10V,etc.
Small size, low cost, easy use and high reliability.
Standard DIP 24/SIP12 Pin, UL94V-0 package.
Industrial temperature range: - 45ºC ~ + 85 ºC
Applications:
Temperature signal isolation, acquisition and transfer.
Industry site high-precision temperature measure.
Terminal resistance signal isolation and temp. control.
Ground interference suppression.
Temperature sensor signal converter to standard signal.
Oil temperature measure and alarm.
Signal remote without distortion transmission.
Power monitoring, medical equipments, temperature control isolation barrier
Specifications:
SY ZW Series is a mixed integrate circuit that thermal resistance signal as temperature high/low isolation converter
to linearity standard signal to temperature. It integrated a set of isolated DC/DC converters, Linearization
disposal and long line compensate circuit, can bring two group of each other isolated power to input port for
magnifying circuit, modulating circuit powered and output port demodulation. They can meet industrial wide
temperature, humidity, shaky poor operation condition.SY WZ Series temperatures signal isolation amplifier
is very convenient, with minimal external components, can be realized Pt100 RTD signal isolation transmitter.
And can achieve the industrial site temperature control signal into two, into four functions.

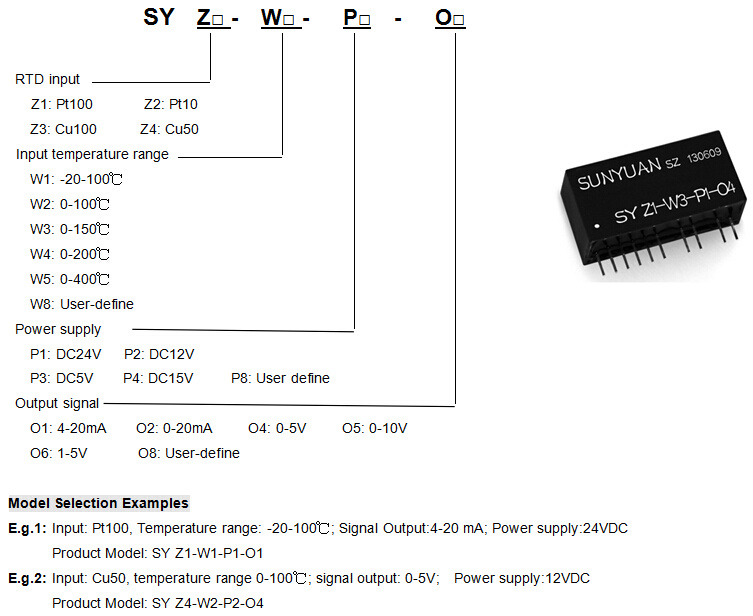

Model selection guide:

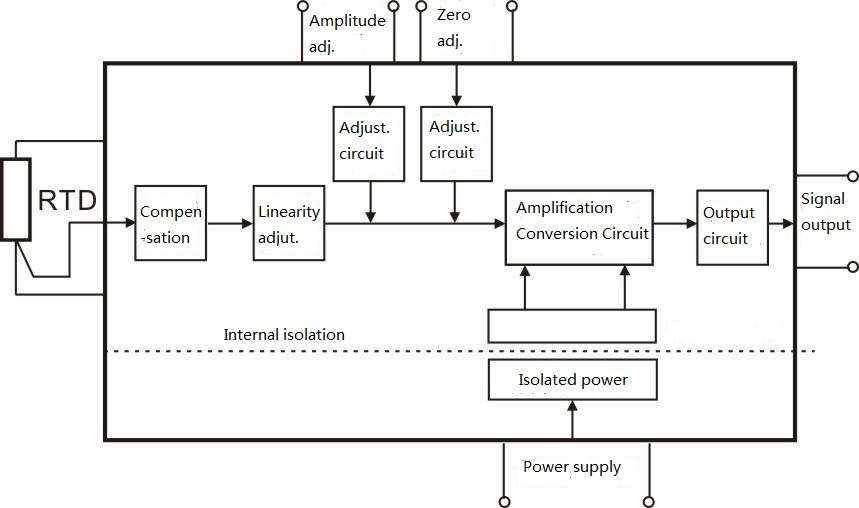

Functional block:

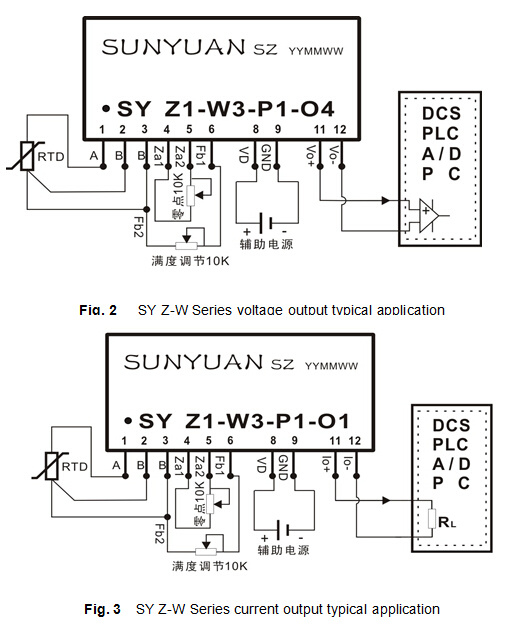

PT100 TO 0-5V transmitter application:
|
Parameter |
Test Conditions |
Min. |
Typical |
Max. |
Unit |
|
Isolated voltage |
1min |
1500 |
3000 |
|
VDC |
|
Non-linearity(to temperature) |
|
|
0.2 |
0.5 |
%FSR |
|
Output signal |
Voltage |
|
|
5 |
10 |
V |
|
Current |
|
|
20 |
|
mA |
|
Frequency response |
|
|
10 |
|
mS |
|
Load capability |
Voltage |
Vout=10V |
|
2 |
|
kΩ |
|
Current |
Iout=20mA |
|
500 |
650 |
Ω |
|
Signal output ripple |
No-filter |
|
10 |
|
mV |
|
Output temperature drift |
|
|
100 |
|
ppm/ºC |
Auxiliary
power supply |
Voltage |
User-define |
3.3 |
12 |
24 |
VDC |
|
Current |
VD=12V |
|
42 |
|
mA |
|
Power consumption |
|
0.3 |
0.5 |
1 |
W |
|
Operating temperature |
|
-45 |
|
85 |
ºC |
|
Storage temperature |
|
-55 |
|
125 |
ºC |
