Prod Model:	X91
Name And Model:	Chc Rtk GPS X91
Type:	GPS Receiver
Use:	Automotive&Hand Held

Product Description

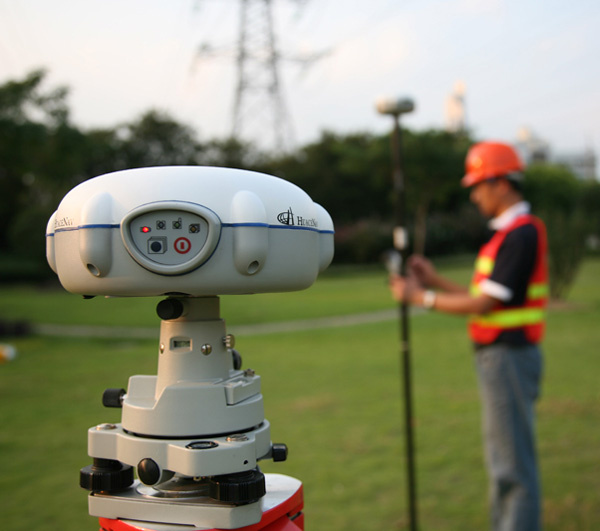

CHC X91 RTK GNSS GPS

Description

The X91 GNSS receiver brings extremely affordable and reliable GPS+GLONASS
Real-time centimeter level solution to surveyors without the conventional cost associated with GNSS solutions.
The X900 GNSS combines field proven 72 channels GPS+GLONASS Novatel ™ Technology and
State-of-the art RTK solution for either traditional base + rover configuration and RTK networks thanks to
Its flexible GPRS and UHF communication systems.
In a difficult economy situation with higher investment constraints,
Surveyors are expecting a wider range of GNSS solutions. Complementing our X91 GNSS high-end solution,
We have designed the X900 to offer accurate and reliable RTK solution whilst being more affordable.
The X900 is available in various bundled packages to fit end users need for data collection software
And handheld controllers.

Horizontal:		+(10mm+1ppm) RMS
Vertical:		+(20mm+1ppm) RMS
Initializing Time:		10S
Initialization Reliability:		Typical >99.9%
Static
Horizontal:	+(5mm+1ppm) RMS
Vertical:	+(10mm+2ppm) RMS
Physical Reference
Size (HXLXW):	84mmX190mmX200mm
Weight:	1.4Kg (With Battery)
Electrical Reference
Power Consumption:	2.8W
Battery Volume:	2200mAh
Battery Life:	8 Hours (Static) 4.5 Hours (RTK) 1000 Recharges
External Power:	9-18VDC
Environment
Working Temperature:	-30 C- +65 C
Storage Temperature:	-40 C- +75 C
Humidity:	100% condensation
Waterproof and Dustproof:	IP67, protected from temporary immersion to depth of 1 meter, floating.
Shock and Vibration:	Survive from 2 meters drop onto concretes
Characteristics
Buttons and Display:	2 buttons/4 LED lights
I/O:	RS232, USB, Bluetooth®
Channel:	72 channels
Datalink
Power (UHF):	1W-20W Adjustable
Band Width:	410-430MHz/430-450MHz/450-470MHz
