Rubber Safety Edge for Agv Automated Guided Vehicle

Name: Rubber Safety Edge for Agv Automated Guided Vehicle
Brand: all-electronics-online.com
SKU: 724378952
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 2.6/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TB-AGV-001
Use:	Safety Edge
Size:	45*45mm
Length:	100-5000mm
Standards:	GB/Ce
Material:	EPDM
Application:	Household Appliance
Effect:	Safety Edge

Product Description

Rubber Safety Edge for Agv Automated Guided Vehicle

Safety Edges Series Theory

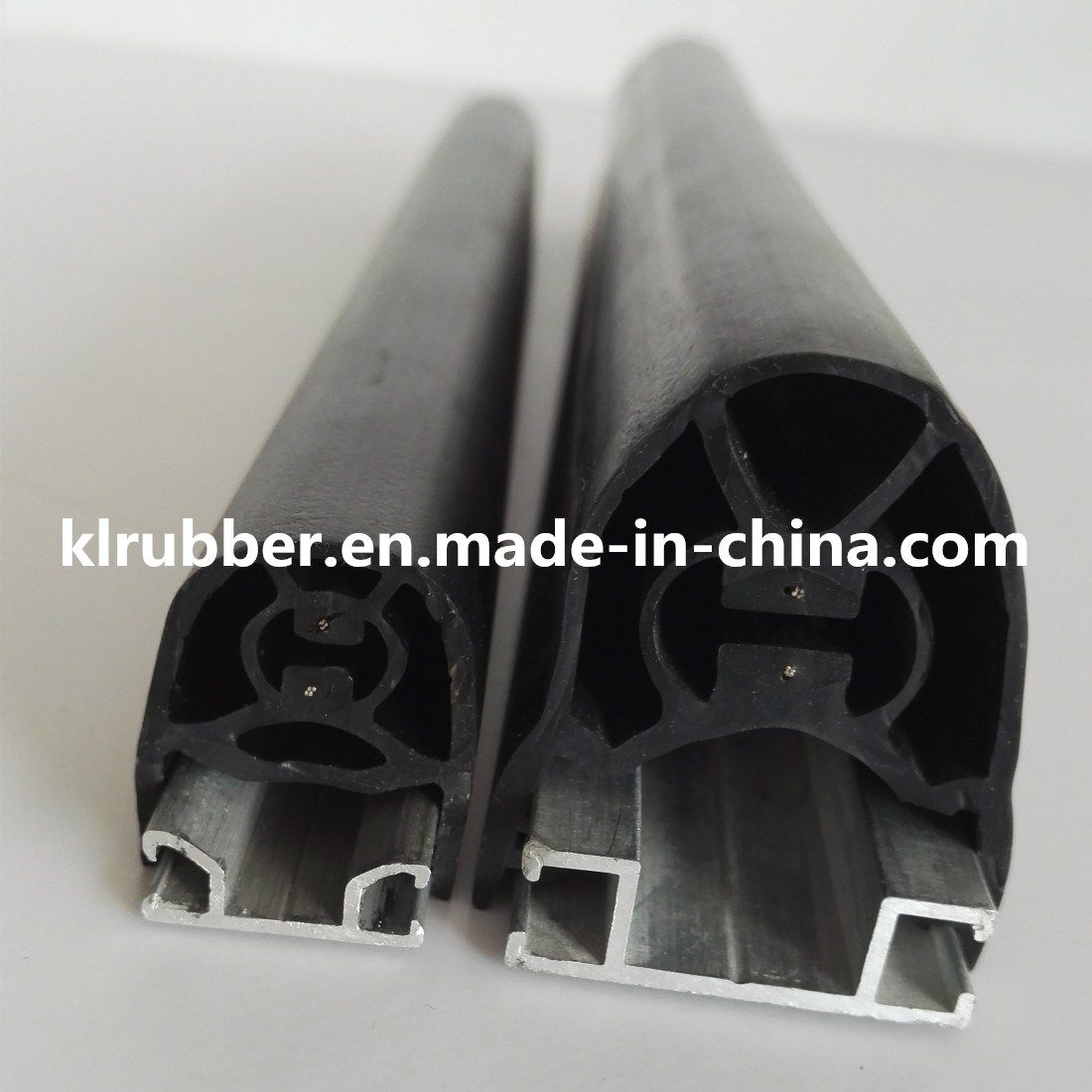

All safety edges internal structure has two or three switch contact surface, each switch inside containing a copper wire line, which was separated from each other under static state certain distance between them. The safety edges was assembled by a terminal resistance finally,which was monitoring the whole system. On one hand, this special design could prevent the short circuits and fittings problem, on the other hand, if the edges change,the resistance will instruct the whole system working to prevent the danger happening immediately.

Safety Edges Series Application

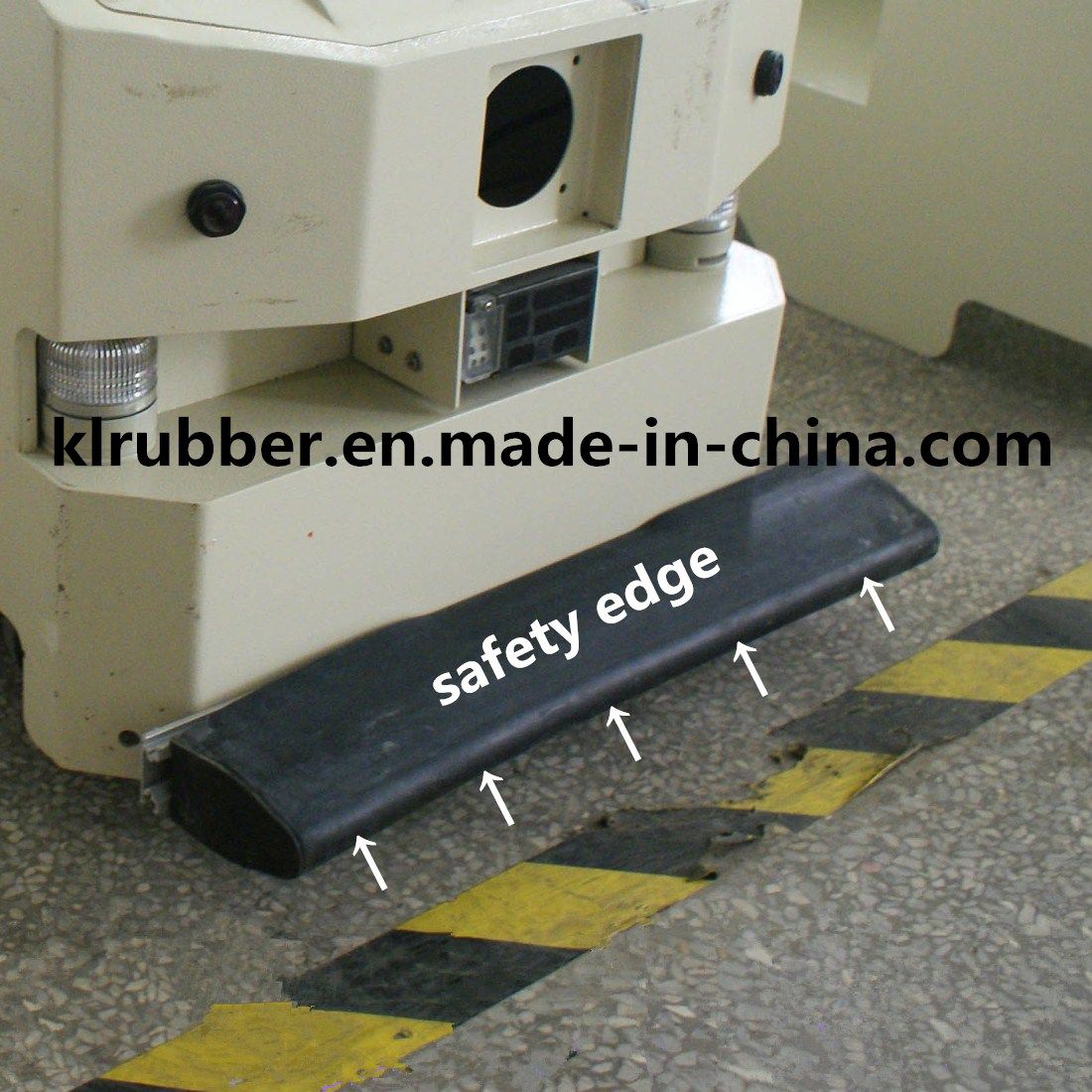

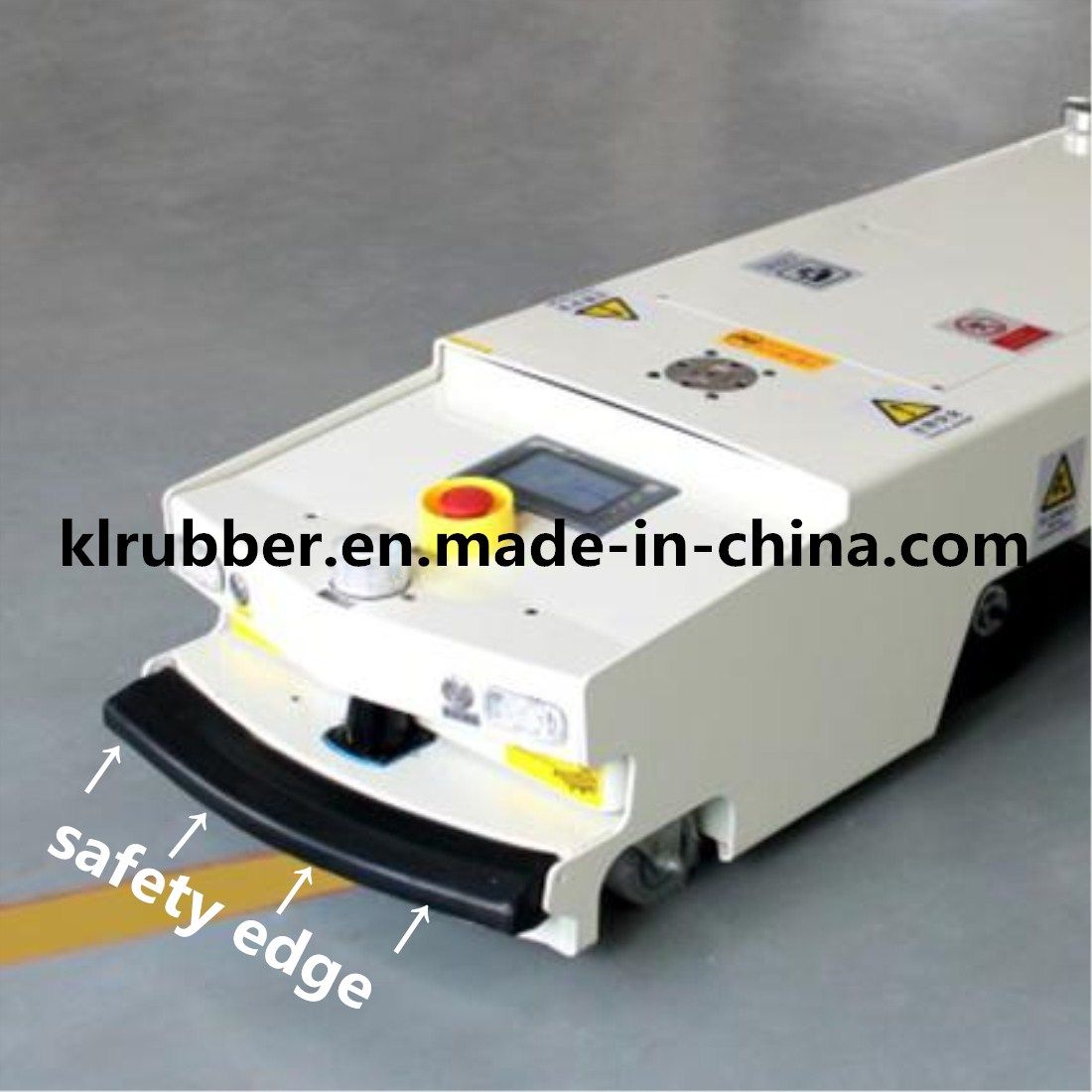

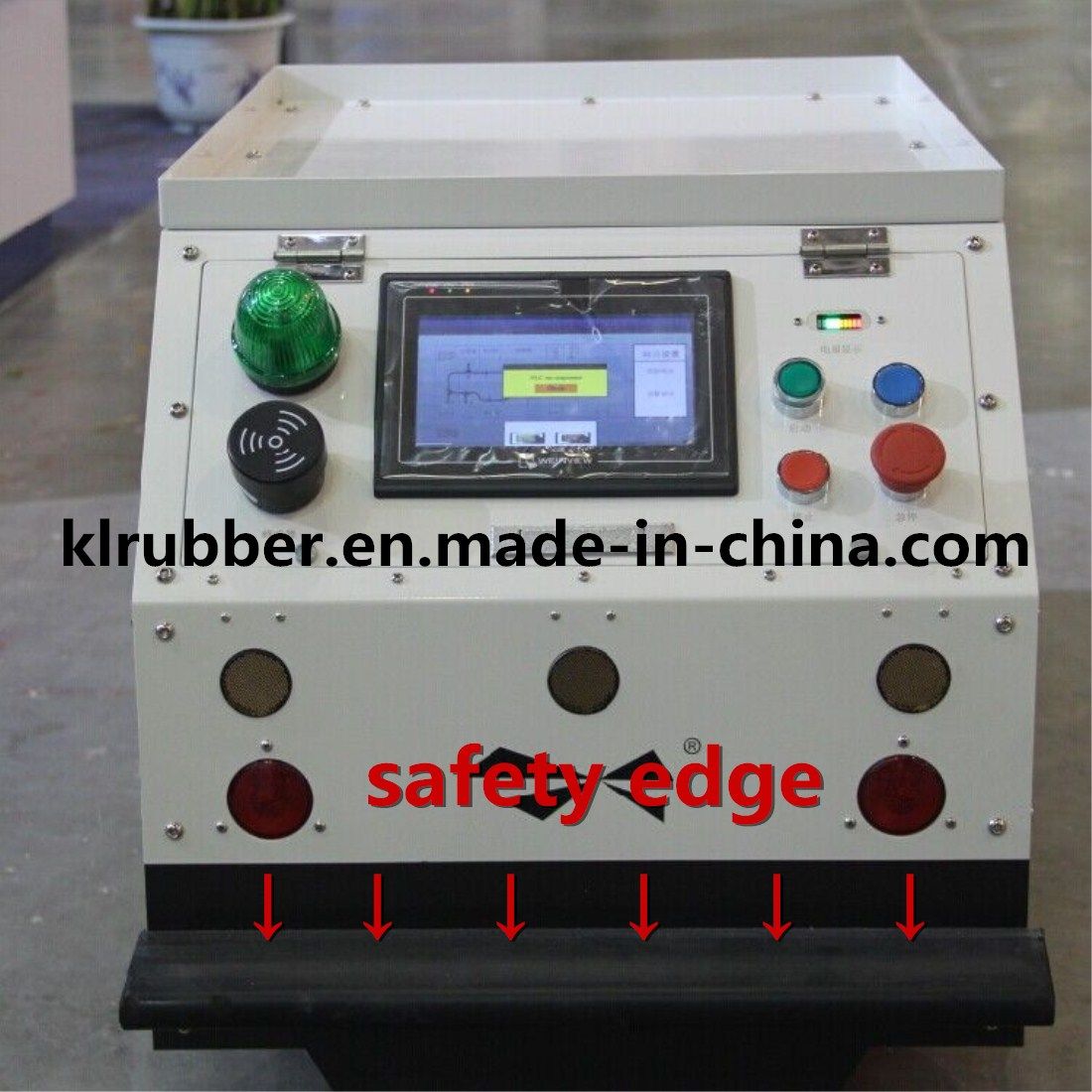

safety contact edge products in security solution are used for easy accident extrusion and shear on the edge of the opening and closing of a pressure sensor products, which are widely used, such as AGV car, the tyre machine,lifting stage,car sunroof or automobile skylight , passenger luggage doors, welding robot, rubber and plastic machinery, assembly, material handling, packaging machine, stamping machine, pressure machine, automobile tail door system, automotive safety field or a shear sliding door, mobile risk bulkhead, automatic sliding door, electric door, and so on.

Safety Edges Technical Parameters
the product use the innovation of epdm and butadiene-acrylonitrile rubber mixed, to ensure it more flexible in the low temperature. Application temperature from -25 ºC to + 60 ºC. Resistance generally < 150-500 Ω, launch distance up to the product specification , bending Angle up to 15 degrees.

Technical deta:

Application temperature range	-30° C ~70° C
Sensor tape material	silastic composite copper wire
Alternate capacity	0.2A/42V AC/DC
Resistance transmission capacity	0.5Kohm/m
Launch distance	1.6mm
Finished product specifications	9.0*5.2mm
Connecting cable Insulated wire	2x0.34mm2. DM type
Insulation strength	1500V AC
Bending angle maximum	15 degree
