Running and Starting Capacitor Cbb65 440V 450V
| Price: |
US $ 0.5-3.95/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
CBB61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Cbb65 Capacitor |
| Rated Voltage: |
200~500VAC |
| Operating Temperature: |
40/70/21 or 40/85/21 |
| Capacitance Tolerance: |
±5% |
| Class Of Operation: |
Class B, Class C |
| Class Of Safety Protection: |
P2/P1 |
| MOQ: |
1 PCS |
| Shape: |
Cylinder or Ellipse |
| Capacitor Case: |
Aluminum Case |
| Size: |
Available on Request (Customized Capacitor) |
| Type: |
Polypropylene Capacitor |
| Application: |
Water Pump |
| Package Type: |
Surface Mount |
| Capacitance: |
1~35UF |
| Manufacturing Material: |
Plastic Case and Capacitor Mpp Film |
| Electrolyte: |
Film Capacitor |
| Usage: |
Fan, AC Motor, Air Conditioner |
| Filter: |
Film Capacitor |
Product Description

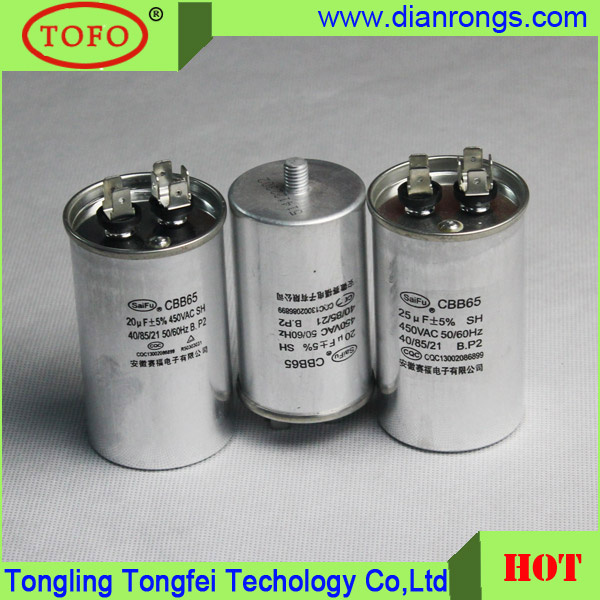

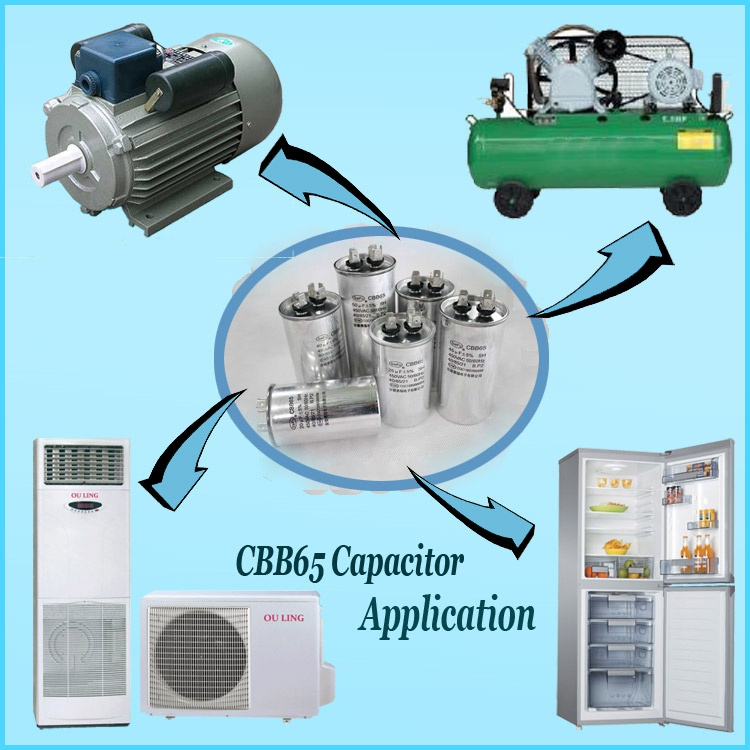

& Basic Info.# Basic specifications:Model No.:Air Conditioner & Motor on Starting & Running Cbb65 CapacitorType: Polypropylene CapacitorCapacitance: 2~120uFCapacitance Tolerance: ±5%Rated Voltage: 200~500VACStructure: Single CapacitorManufacturing Material: PolypropyleneElectrolyte: Polypropylene FilmOperating Temperature: 40/70/21 or 40/85/21Class of Safety Protection: P1/P2Class of Operation: Class B,Class CPackage Type: Export Carton for CBB65 CapacitorProduction Capacity: 500,000pcs/MonthMOQ: 1pcsSize: Available on Request (Customized Capacitor) # Appearance and Application:Application: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc.Installation Type: Through HoleShape: Cylinder or EllipseCapacitor Case: Aluminum Case & Additional Info.Company Name: Tongling Tongfei Technology Co.,LtdTrademark: TOFOStandard: GB/T 3667.1 or IEC 60252-1Origin: China(Mainland)Packing: Export Stand Carton Packing for CapacitorsDelivery Detail:7~15 days after paymentPort: Shanghai or NingboExport Market: Global & Product DescriptionThe capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.The elements of CBB65 capacitor are tight winded by high-velocity winders and canned in aluminum cases.The second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors.And the reliability is more affirmatively enhanced. # Application:CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.
# Technical Specifications:| Reference standards | GB/T3667.1(IEC60252-1) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety protection | P2/P1 |
| Voltage range | 200~500VAC |
| Capacitance range | 2~120μF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20×10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ. μF(100Hz,20ºC,1min) |
# Dimensions(mm):| No | Specifications | Terminal | Size |
| 1 | CBB65-450VAC 2μF ~9μF | 2×4 or 2×2 pin | Φ40×60 |
| 2 | CBB65-450VAC-10μF | 2×4 or 2×2 pin | Φ40×60 |
| 3 | CBB65-450VAC-12.5μF | 2×4 or 2×2 pin | Φ40×70 |
| 4 | CBB65-450VAC-15μF | 2×4 or 2×2 pin | Φ45×70 |
| 5 | CBB65-450VAC-20μF | 2×4 or 2×2 pin | Φ45×75 |
| 6 | CBB65-450VAC-25μF | 2×4 or 2×2 pin | Φ50×85 |
| 7 | CBB65-450VAC-30μF | 2×4 or 2×2 pin | Φ50×100 |
| 8 | CBB65-450VAC-35μF | 2×4 or 2×2 pin | Φ50×100 |
| 9 | CBB65-450VAC-40μF | 2×4 or 2×2 pin | Φ50×100 |
| 10 | CBB65-450VAC-45μF | 2×4 or 2×2 pin | Φ50×100 |
| 11 | CBB65-450VAC-50μF | 2×4 or 2×2 pin | Φ50×125 |
| 12 | CBB65-450VAC-55μF | 2×4 or 2×2 pin | Φ50×125 |
| 13 | CBB65-450VAC-60μF | 2×4 or 2×2 pin | Φ50×125 |
| 14 | CBB65-450VAC-65μF | 2×4 or 2×2 pin | Φ55×125 |
| 15 | CBB65-450VAC-70μF | 2×4 or 2×2 pin | Φ55×125 |
| 16 | CBB65-450VAC-80μF | 2×4 or 2×2 pin | Φ60×125 |
| 17 | CBB65-450VAC-90μF | 2×4 or 2×2 pin | Φ60×125 |
| 18 | CBB65-450VAC-100μF | 2×4 or 2×2 pin | Φ63.5×125 |
* Note:1.Other capacitance and dimension serials can be specified in compliance with customer's request. 2.Terminal forms can be made in conformity to the requirements of agreements with customers.& Our advantages# LeadingTechnology:Have a number of invention patents# Stable Quality:The company has the world's most advanced production equipment, and implement ISO9001 standard management.# Reasonable Price:Executive "Industrial products 10% Profit in the first"# Cordial Service:7*24 hours online, prompt reply and timely delivery & Welcome to Contact UsCompany Name: Tongling Tongfei Technology Co.,Ltd.Add: No.695 North Taishan Road,Tongling,Anhui,China Tel: 0086 0562 2821018Fax: 0086 0562 2821558Mobile Phone: 13305620368 (Helen Hu) For more information, please contact and view our website:www.dianrongs.com
Tongling Tongfei Technolygy Co., Ltd. Is a development, design, manufacture and market integrated professional capacitor manufacture, the company's main products: Metallized film for capacitor use, CBB series AC motor capacitor, SFPEC series power electronics capacitors, capacitors accessories, blank inkjet printable PVC card and compatible PVC card tray.
The company registered capital of 10 million, covers a total factory area of more than 6000 square meters. Existing staff of 76 people, and has set up a management platform of the management layer, production department, technical department, domestic trade department, foreign trade department, financial department and R& D center according to the standard system.

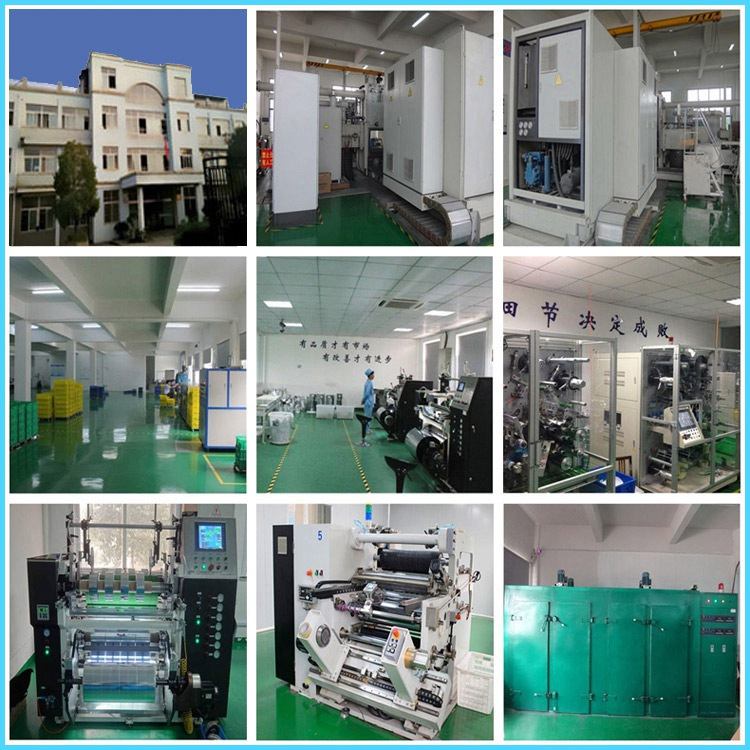

The company is equiped with professional capacitor manufacturing equipment and testing instruments as coating machine, high precision metallized film slitter, imported Rod automatic winding machine, automatic spraying machines, vacuum packaging equipment, special capacitor voltage measurement, constant temperature dehumidify box, special test bridge for capacitor use, all these equipment provide a reliable guarantee for product quality.
We have the business idea of total integrity and globalization service. With international and professional service, we make great efforts to translate Chinese characteristics and industrial benefits into product advantages, at the same time, provide domestic and oversea clients with the most suitable high quality products.
We are very appreciated to developing and creating of splendent tomorrow together with all the friends!
Quality policy:
Quality first, Customer foremost, Knight service, Sustainable improvement
We adhere to the customer as the main body, meet and lead the customer 's demand, provide customers with the first-class service.
Enterprise target:
To be a leading supplier with reliable quality and knight service.
Enterprise spirit:
Realistic, enterprising, collaborative, innovation
Enterprise mission:
Providing satisfied service for customer, society, employee
Business philosophy:
Details determine success or failure
Management policy:
To promote innovation with talents, to increase competitiveness with teams
