HUANGSHAN SAFETY ELECTRIC TECHNOLOGY CO., LTD. >> Running Capacitor for Energy Saving Lamps, High Temperature

Running Capacitor for Energy Saving Lamps, High Temperature

Running Capacitor for Energy Saving Lamps, High Temperature
Price: US $ 0.4-1.5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: CBB80
Service: OEM and ODM
Warranty Time: 3 Years
Temperature: -40 to 105
Material: Plastic Can or Al Can Design
Delivery Time: 2 Weeks
Application: Lighting
Package Type: Surface Mount
Capacitance: 1-50uf

Product Description

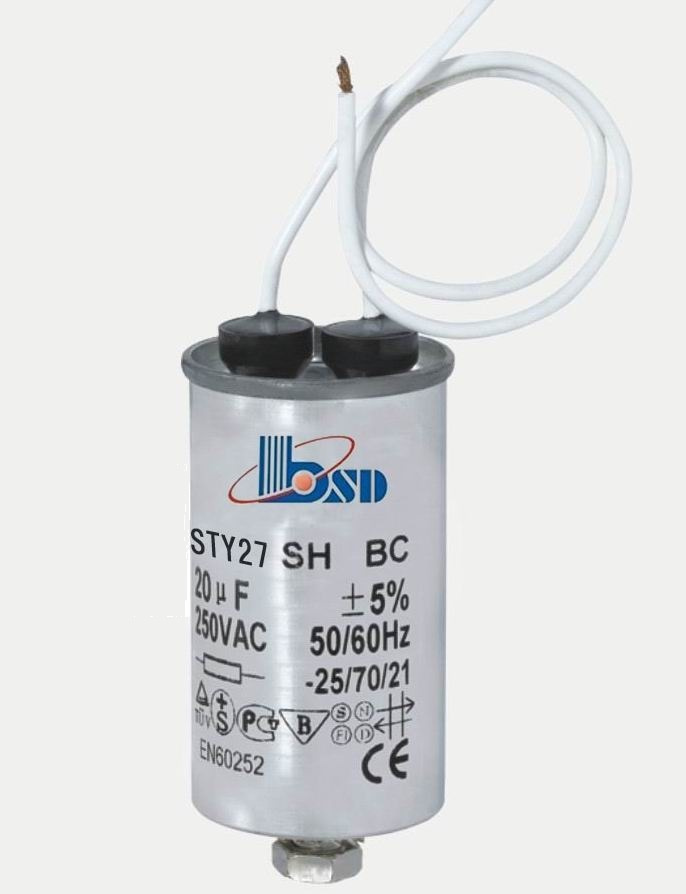

CBB80 Series  sh lighting capacitor are designed to improve the power factor of discharge lamps

Capacitance: 2 to 60uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.


Features:
1, Small, light weight
2, Very low loss, long lifespan, good self-healing
3, High insulation resistance, safety and stable.
4, Built-in the explosion-proof device and discharge resistance
5, Used for grille lamps or energy-saving lamps

Structure:
1). The capacitor body is convoluted with metallized film.
2). The container is adoptted flame & temperature resistant engineering plastic or aluminum, etc metal material. It is enveloped with epoxy resin.
3). The install part is screw at bottom of container or double hanging hook.
4). Connection terminals: Plastic-sealed wire, fast connected terminal and discharge resistance.
5). We can design the particular specification and connection terminal according to clients' requirement.

Application:
Used for AC electronic power system at 50HZ(60HZ). Especially for fluorescent lamps, efficient metal-halogenide lamps for debase current in circuit and save electric energy.

Itemslight cbb80 sh capacitor
Capacitance2 to 60uF
Working voltage250 to 630VAC
standardIEC61048&IEC61049
MaterialPlastic Can or Al Can Design

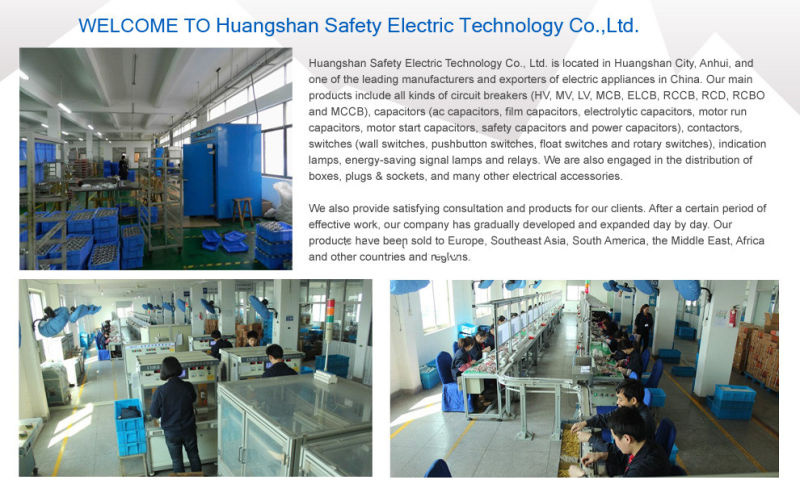

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
