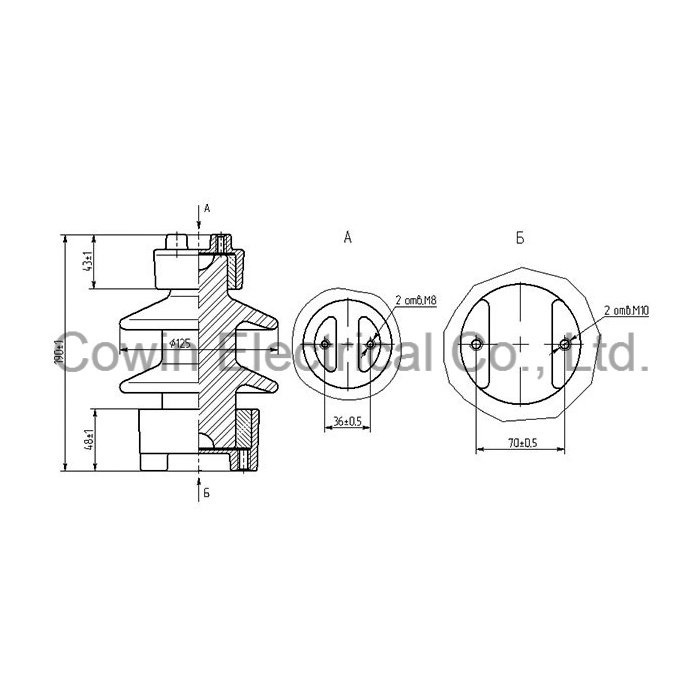

Russia 10kv Line Post Insulator Porcelain Insulator

Name: Russia 10kv Line Post Insulator Porcelain Insulator
Brand: all-electronics-online.com
SKU: 791125325
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 2/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	C4-80 II
Rated Voltage:	10kv
Creepage Distance:	320mm
Load:	4kn
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	Russia Type
Size Of Bearing Capacity:	4kn
Brand:	Cowinelec, OEM or ODM

Product Description

Марка изолятора: С4-80 II
Номинальное напряжение: 10 кВ
Испытательное напряжение: 80 кВ
Минимальная разрушающая сила, кН: 4
Климатическое исполнение: УХЛ1
Масса, кг: 2,75
Изоляторы С4-80 II, опорно-стержневые, класса напряжения 10 кВ применяются в высоковольтных разъединителях и выключателях распределительных устройств.
Материалы применяемые при изготовлении изолятора С4-80 II:
Изоляционная часть- материал керамический электротехнический группы 120, ГОСТ 20419-83
Арматура - сплав алюминиевый АК12, ГОСТ 1583-93; or Nodular Iron
Армирующий состав- портландцемент ПЦ-500 ДОН, ГОСТ 10178-85
Защита армировочных швов- герметик силиконовый

Product Model	Rated voltage (kV)	Rated mechanical bending load (kN)	Structure height (mm)	Min. arcing distance (mm)	Min. nominal creepage distance (mm)	Uimp wts(peak) (kV)	Uw. 1min wts (peak) (kV)
C4-80	10	4	190	1	320	230	95

PROFESSOINAL: High Voltage Electrical Materials and Poleline Hardwares

Cowin Electrical Co., Ltd, is located in the largest manufacturing base of low-voltage electric equipment of Liushi China, which is called "the Electric Device Metropolis of China".

Cowin regards quality of products as life. We have standard Management System. We produce and widely sell over 300 series, more than 10000 types in high-and-low voltage electrical device, complete equipment, power transformer, cable and wire, instrument and meter, welding equipment, which are praised by all users. A number of new independent intellectual property right, intelligent appliances is moving into the market.

We are keeping our business principles for "Approaching the first-class management, producing the first-class products, providing the first-class service". All Cowin staffs are working hard and constantly innovate.

Honest Cowin are welcome to all users to fighting a better tomorrow hand in hand, Cowin -Cooperation and doulbe win.

www.powerfitting.net; www.cowinelec.com
