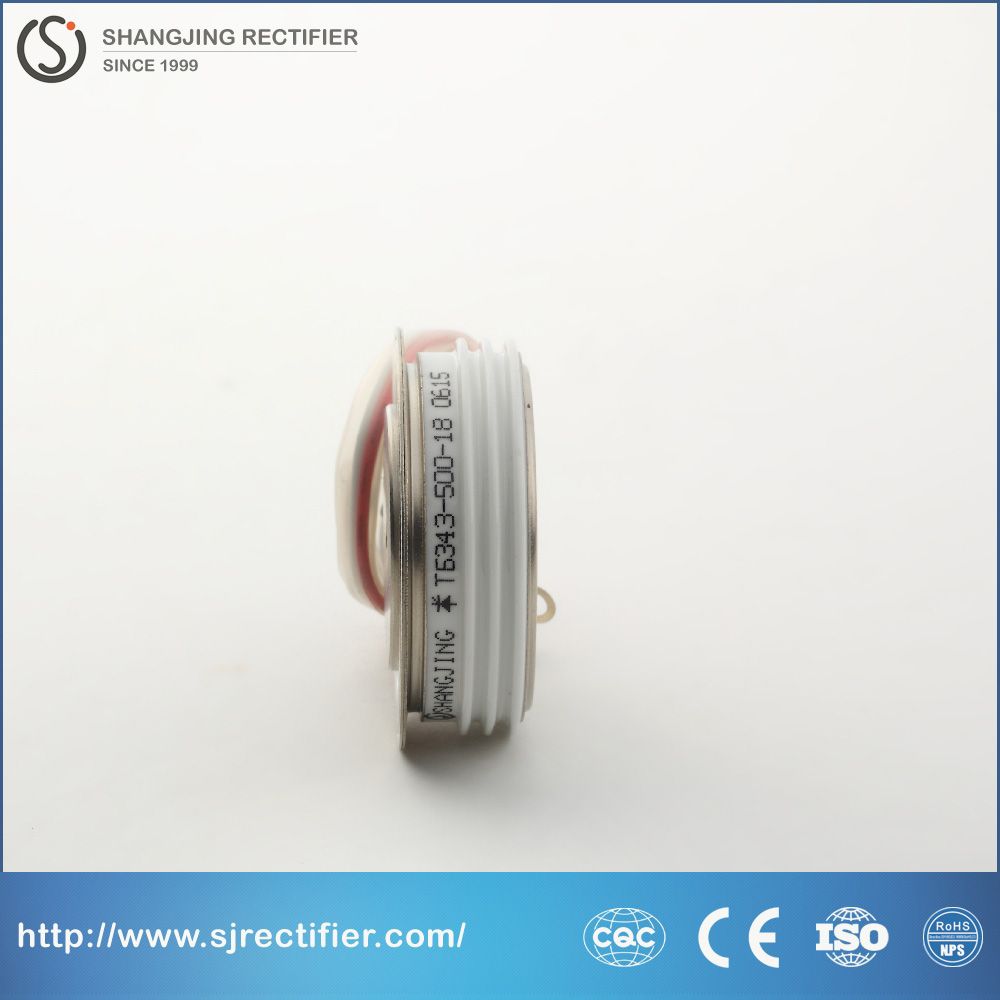

Russian Type Fast Thyristor for Motor Control

Name: Russian Type Fast Thyristor for Motor Control
Brand: all-electronics-online.com
SKU: 708593632
Availability: InStock
Rating: 4.4 (59 reviews)

Price:	US $ 36-43/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TB343-500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	1400-2400V
Irrm:	50mA
It(AV):	500A
Vtm:	2.6V
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Ceramic Disc Type Seal
Application:	Battery Charges ,Converter,Power Supply
Model:	Tb343-500
Batch Number:	2016+
Brand:	Shangjig

Product Description

Features
All diffuse techinics
Ceramic disc type seal
Middle trigger
Bi-facial cooled
High current

Typical Applications
Big power transformer
AC & DC motor control
AC & DC switch
Phase control rectification
Inverter
Welder

Explanation
IGT, VGT, IH are all TA=25° C test data, others are all TA=Tjm test data.
I2t=I2TSM× TW/2: TW=Half sine wave current, when at 50Hz, I2t=0.005I2TSM(A2S)
When at 60Hz, ITSM(8.3ms)=ITSM(10ms)× 1.066, Tj=Tjm I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type	VRRM	IRRM	IT(AV)	IT(RMS)	ITSM	VTM/ITM	di/dt	dv/dt	VGT	IGT	IH	Tj	Rjc	tq	M2	Wt	Outline
			Tc55° C	Tc70° C	10ms	25° C				25° C
	V	mA	A	A	kA	V/A	A/μ s	V/μ s	V	mA	mA	° C	° C /W	μ s	kN	kg
TB323-400	300-1400	40	400	628	6.5	2.7/1250	500	500-1000	3.5	300	≤ 200	-40 ~ +125	0.035	12.5, 16, 32, 40	10	0.10	RC2 RC3
TB333-500	300-1400	40	500	785	7.5	2.2/1570	500	500-1000	3.5	300	≤ 200		0.035	16, 20, 25, 32, 40	10	0.18	RC2 RC3
TB343-500	500-1000	50	500	785	9.0	2.6/1570	500	500-1000	3.5	300	≤ 200		0.028	25, 2, 40	15	0.16	RC4
TB143-630	500-1400	50	630	990	10.5	2.1/2000	500	500-1000	3.5	300	≤ 300		0.028	25, 32, 40, 50	15	0.16	RC4
TB153-630	600-1400	100	630	990	1.5	2.4/2000	630	1000-1600	3.5	400	≤ 300		0.021	20, 25, 32, 40, 50	24	0.55	RC5
TB453-800	600-1400	100	800	1250	15.0	2.3/2500	630	1000-1600	3.5	400	≤ 300		0.021	25, 32, 40, 50, 63	24	0.55	RC5
TB143-500″	1400-2400	70	500	800	9.0	2.5/1570	500	500-1000	2.5	300	≤ 200		0.035	25, 32, 40, 50, 63	15	0.24	RC4
TB553-800″	1400-2400	120	800	1250	17.0	2.8/2500	630	500-1000	2.5	400	≤ 400		0.021	25, 32, 40, 50, 63	24	0.55	RC6
TB453-1000″	600-1400	100	1000	1600	16.0	2.5/3140	630	1000-1600	3.5	400	≤ 400		0.021	40, 50, 63	24	0.55	RC6
TB273-2000″	1400-2400	120	2000	3200	40.0	1.85/6280	1000	500-1000	5.0	400	≤ 400		0.021	40, 50, 63	45	1.20	RC8
