| Prod Model: |
RV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

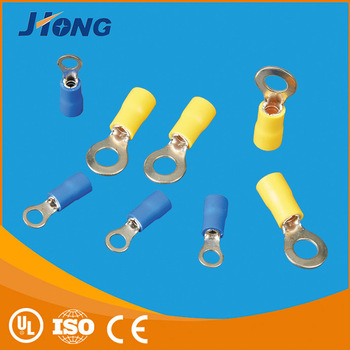

RV Type Round Pre-Insulated Terminal |
| Sample: |
Free |
| Size Of Cable: |
0.5mm~1.5mm |
| Max.Current: |
19A |
| Color: |
Yellow, Blue |
| MOQ: |
1000 |
| PCS/Bag: |
100 |
| Type: |
Socket Terminals |
| Material: |
Copper |
| Application: |
Transmission of Electrical Signals |
| Certification: |
Iaf, ISO9001, UL |
| Brand: |
Jiong |
Product Description
Product Description
RV Type Round Pre-insulated Terminal
Product Features
Size of Cable:0.5~1.5mm2(American standar 22-16)
Max.current=19A
Product Parameters
| 0.5~1.5mm(22-16) Imax=19A |
| Type | USA Screw | Dimension(mm) | Color |
| d2 | B | L | F | H | DQ |
| RV1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | Red |
| RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | Red |
| RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | 10 | 4.3 | Red |
| RVL1.25-3.5 | #6 | 3.7 | 8 | 21.5 | 7 | 10 | 4.3 | Red |
| RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | 10 | 4.3 | Red |
| RVL1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | 10 | 4.3 | Red |
| RV1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | 10 | 4.3 | Red |
| RVL1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | 10 | 4.3 | Red |
| RV1.25-6 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | 10 | 4.3 | Red |
| RVS1.25-6 | 1/4 | 6.5 | 9.8 | 23 | 8.5 | 10 | 4.3 | Red |
| RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | 10 | 4.3 | Red |
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | 10 | 4.3 | Red |
| RV1.25-12 | 1/2 | 13 | 19.2 | 36 | 16 | 10 | 4.3 | Red |
| 1.5~2.5mm(16-14) Imax=27A |
| Type | USA Screw | Dimension(mm) | Color |
| d2 | B | L | F | H | DQ |
| RV2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
| RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
| RVM2-3.5 | #6 | 3.7 | 6.6 | 21 | 7 | 10 | 4.9 | Blue |
| RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | 10 | 4.9 | Blue |
| RVS2-4 | #8 | 4.3 | 6.6 | 21 | 7 | 10 | 4.9 | Blue |
| RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | 10 | 4.9 | Blue |
| RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | 10 | 4.9 | Blue |
| RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | 10 | 4.9 | Blue |
| RV2-6 | 1/4 | 6.5 | 12 | 27.6 | 11 | 10 | 4.9 | Blue |
| RV2-8 | 5/16 | 8.4 | 12 | 27.6 | 11 | 10 | 4.9 | Blue |
| RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | 10 | 4.9 | Blue |
| RV2-12 | 1/2 | 13 | 19.2 | 36.5 | 16.5 | 10 | 4.9 | Blue |
| 2.5~4MM(14-12) Imax=37A |
| Type | USA Screw | Dimension(mm) | Color |
| d2 | B | L | F | H | DQ |
| RV3.5-4 | #8 | 4.3 | 8 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| RVS3.5-5 | #10 | 5.3 | 8 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| RVL3.5-5 | #10 | 5.3 | 12 | 27.9 | 7.7 | 12.5 | 6.2 | Black |
| RV3.5-6 | 1/4 | 6.5 | 12 | 27.9 | 7.7 | 12.5 | 6.2 | Black |
| 4~6MM(12-10) Imax=48A |
| Type | USA Screw | Dimension(mm) | Color |
| d2 | B | L | F | H | DQ |
| RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | Yellow |
| RVS5.5-4 | #8 | 4.3 | 7.2 | 21.5 | 5.9 | 12.5 | 6.7 | Yellow |
| RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | 12.5 | 6.7 | Yellow |
| RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | 12.5 | 6.7 | Yellow |
| RV5.5-6 | 1/4 | 6.5 | 12 | 31.5 | 13 | 12.5 | 6.7 | Yellow |
| RV5.5-8 | 5/16 | 8.4 | 15 | 33.7 | 13.7 | 12.5 | 6.7 | Yellow |
| RV5.5-10 | 3/8 | 10.5 | 15 | 33.7 | 13.7 | 12.5 | 6.7 | Yellow |
| RV5.5-12 | 1/2 | 13 | 19.2 | 38.1 | 16 | 12.5 | 6.7 | Yellow |
