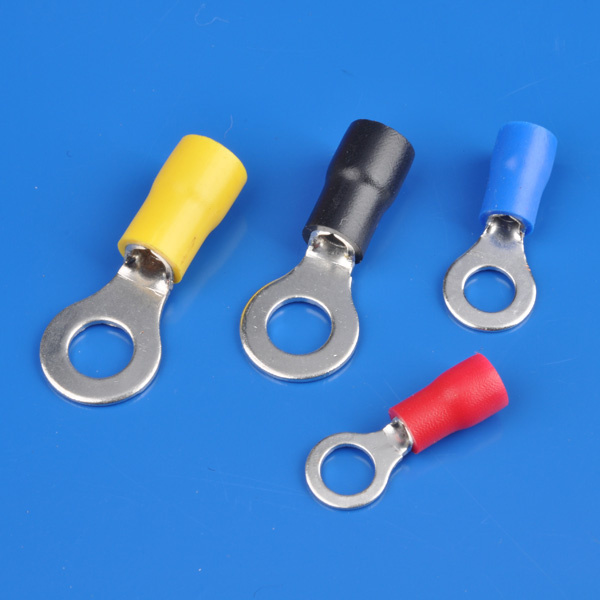

RV2-3 Insulated Ring Terminal for Copper

Name: RV2-3 Insulated Ring Terminal for Copper
Brand: all-electronics-online.com
SKU: 726101275
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	US $ 10/Bag
Trade Terms:	FOB,CIF
Min Order:	1000/Bag
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	Red,Black,Yellow,Blue
Application:	Conduct Electricity
Type:	Socket Terminals
Material:	Copper

Product Description

CHANGHONG PLASTICS GROUP IMPERIAL PLASTICS CO., LTD
Insulated Ring Terminal

0.5~1.5mm 2 (22-16) Imax=19A

ITEM.NO.	US SYSTEM OF BOLTS	d2	DIMENSION					COLOR
ITEM.NO.	US SYSTEM OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D (mm)	COLOR
RV1.25-3	#4	3.2	5.7	17.8	4.95	10.0	4.3	Red
RVS1.25-3.5	#6	3.7	5.7	17.8	4.95
RVM1.25-3.5	#6	3.7	6.6	20.1	6.3
RVL1.25-3.5	#6	3.7	8.0	21.5	7.0
RVS1.25-4	#8	4.3	6.6	20.1	6.3
RVL1.25-4	#8	4.3	8.0	21.5	7.0
RV1.25-5	#10	5.3	8.0	21.5	7.0
RV1.25-6	1/4	6.5	11.6	27.5	11.1
RV1.25-8	5/16	8.4	11.6	27.5	11.1
RV1.25-10	3/8	10.5	13.6	31.6	13.9

1.5~2.5mm 2 (16-14) Imax=27A

ITEM.NO.	US SYSTEM OF BOLTS	d2	DIMENSION					COLOR
ITEM.NO.	US SYSTEM OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D (mm)	COLOR
RV2-3	#4	3.2	6.6	17.8	4.3	10.0	4.9	blue
RVS2-3.5	#6	3.7	6.6	17.8	4.3
RVM2-3.5	#6	3.7	6.6	21.0	7.0
RVL2-3.5	#6	3.7	8.5	22.5	7.75
RVS2-4	#8	4.3	6.6	21.0	7.0
RVL2-4	#8	4.3	8.5	22.5	7.75
RVS2-5	#10	5.3	8.5	22.5	7.75
RVL2-5	#10	5.3	9.5	22.5	7.25
RV2-6	1/4	6.5	12.0	27.6	11.0
RV2-8	5/16	8.4	12.0	27.6	11.0
RV2-10	3/8	10.5	13.6	30.2	13.9

2.5~4mm 2 (14-12) Imax=37A

ITEM.NO.	US SYSTEM OF BOLTS	d2	DIMENSION					COLOR
ITEM.NO.	US SYSTEM OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D (mm)	COLOR
RV3.5-4	#8	4.3	8.0	24.5	7.7	12.5	6.2	black
RVS3.5-5	#10	5.3	8.0	24.5	7.7
RVL3.5-5	#10	5.3	12.0	27.9	7.7
RV3.5-6	1/4	6.5	12.0	27.9	7.7

4~6mm 2 (12-10) Imax=48A

ITEM.NO.	US SYSTEM OF BOLTS	d2	DIMENSION					COLOR
ITEM.NO.	US SYSTEM OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D (mm)	COLOR
RV5.5-3.5	#6	3.7	7.2	21.4	5.9	12.5	6.7	yellow
RVS5.5-4	#8	4.3	7.2	21.5	5.9
RVL5.5-4	#8	4.3	9.5	25.5	8.3
RV5.5-5	#10	5.3	9.5	25.5	8.3
RV5.5-6	1/4	6.5	12.0	31.5	13.0
RV5.5-8	5/16	8.4	15.0	33.7	13.7
RV5.5-10	3/8	10.5	15.0	33.7	13.7
RV5.5-12	1/2	13.0	19.2	38.1	16.0

Headquarters: Xinguang Industrial Zone, Liushi, Yueqing, Zhejiang, China. President: Zheng Yuanhe
Production Base: Xinwu Economic development Zone, Wuhu, Anhui.
Date of Establishment: July 7, 1989. Registration Fund: RMB50, 500, 000
Floor Space: 150000m2 Building area: 230000m2 Employees: 1100(Mar, 15, 2012)
Main Product: self-locking nylon cable ties and other kind of nylon cable ties, stainless steel cable ties, cable clips, terminal blocks,
insulated terminals, wire joints, tie mounts, spiral wrapping bands, wiring ducts, cable glands, and other wire accessories.
Philosophy of CHS: Living on quality, developing on credit.
Approval Certificates:
In 1998, CHS was approved by ISO9001 International Quality System.
In 1999, Cable ties were certified by UL.
In 2000, Terminal blocks were awarded CE certificate.
In 2002, Cable glands got CE approval and passed IP 68 test by England UKAS Inspection Institution.
In 2004, Insulated terminals got the CE approval.
In 2005, Cable ties were awarded DNV certificate by Norway Ship Classification Society.
In 2006, CHS products passed SGS tests, conforming to the environment-protection standard of EU.
In 2007, CHS is chosen as "Chinese Famous Brand"
In 2008, Terminal blocks were certified by NF.
Wire ioints were certified by UL.
CHS was approved by ISO14001-Environmental Management system.
In 2009, CHS was named "Zhejiang Brand Product".
In 2010, CHS was named "Wenzhou Top Export Brand".
In 2010, CHS was named "Zhejiang Top Export Brand".
CHS was approved by OHSAS18001.
CHS was upgraded to group "Changhong Plastics Group".
CHS's production base-Wuhu in Anhui now is put into operation formally
