| Prod Model: |
rvv 3 cores, RVV 3*0.5; 3*1; 3*1.5; 3*2.5; 3*4 |
| Wire Color: |
as Per Customer′s Requirement |
| Wire Packing: |
PP+Carton |
| Shape: |
Round Wire |
| Voltage: |
450/750V |
| Electrical Wire Type: |
Fire Flame Retardant |
| Cable Standard: |
IEC60332 |
| Cable Packing: |
Plastic Reel |
| Cable Sectional Area: |
1.5mm2-16mm2 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Upward |
Product Description
upwardcable
colorful industrial electrical cable fire resistant cable electric wires upwardcable
Feature of colorful electrical cables
1.Cable Wire Price Per Meter
2.XLPE Insulated and NON sheath
Parameter of colorful electrical cables
1.Voltage Uo/U 450/750V
2.Long-time working temperature should be lower than 70°C (Can be 90°C or 105°C),
should not be lower than 0°C.
3.Minimum bending radius: minimum bending diameter is two times of cable diameter while test binding
Specification of colorful electrical cables.
Type: Pure Copper Conductor , Single Core CU/XLPE Electric Wire
Strandard: IEC60332, GB/T5023-2008 JB8734-1998
Voltage: 300/500V 450/750V
Specification: Single Core 15AWG etc
Length: 100M 500M 1000M
Type Cross Section(mm2) Conductor Size(No. of Cores/Diameter) Rated Voltage Nominal Insulation Thickness(mm) Reference Weight(kg/km) Application
Solid Type 0.5 1/0.80
300/500V
450/750V
0.6 8.0 Solid, Hard,Suitable for fixed installation
0.75 1/0.97 0.6 11.4
1 1/1.13 0.6 15.2
1.5 1/1.38 0.7 21
2.5 1/1.78 0.7 32
4 1/2.25 0.8 47
6 1/2.76 0.8 67
Stranded Type 1.5 7/0.52 0.7 22 Stranded, Flexible house wiring, Suitable for indoor applicant.
2.5 7/0.68 0.7 35
2.5 19/0.40 0.8 34
4 7/0.85 0.8 50
4 19/0.52 0.8 51
6 7/1.04 0.8 71
6 19/0.64 0.8 72
10 7/1.35 1.0 118
10 49/0.52 1.0 127
16 7/1.70 1.0 177
16 49/0.64 1.0 184
Flexible Type 1.5 30/0.25 0.7 22 Ultra Flexible, Soft Conductor, Suitable for small power equipment instrument.
2.5 49/0.25 0.8 34
4 56/0.30 0.8 49
6 84/0.30 0.8 70
10 77/0.40 1.0 117
16 119/0.40 1.0 168
25 189/0.40 1.2 265
...
Copper Core PVC Insulated Electric Wire/Building Wire
Features of electric wires
The long term working temperature of electric wire should be less than 70 degree. And the long term working temperature of RV-90
electric wire should be less than 90 degree
Application
Electric wires are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750v.Used for home appliances, power and lighting and the places where flexible require. Architecture and household cloth wires.| Model | Name | Laying place and requirement | working temperature |
227IEC01/05
BV
BLV | Copper conductor PVC insulated wires | Fixed laid indoors,conduits etc. | 70 |
Aluminum Conductor PVC
insulated wires |
227IEC07
BV-90 | Heat resistant copper conductor PVC insulated wires at 90 | Mainly be laid at the places of high temperature environment and can be laid indoors,conduits. | 90 |
| BVR | Copper conductor PVC
insulated flexible wire | Be for laying permanent place where flexible required | 70 |
227IEC10
BV | Copper conductor PVC insulated
PVC sheathed round wires | Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground. | 70 |
| BLV | Aluminum conductor PVC insulated PVC sheathed round wires |
| BVB | Copper conductor PVC insulated PVC Sheathed flat wires |
| BLVB | Aluminum conductor PVC insulated sheathed flat wires |
227IEC02RV
227IEC06RV | Copper conductor PVC insulated flexible connector | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required. | 70 |
227IECC42
RVB | Copper conductor PVC insulated flat flexible connector |
| RVS | Copper conductor PVC insulated flexible twisting connector wire |
227IEC53
RW | Copper conductor PVC insulated PVC sheathed round flexible connector(light and common type) |
The cable can be of flame retardance, flame resistance, environment friendly or other property. OEM Available.
Single Core 11AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.

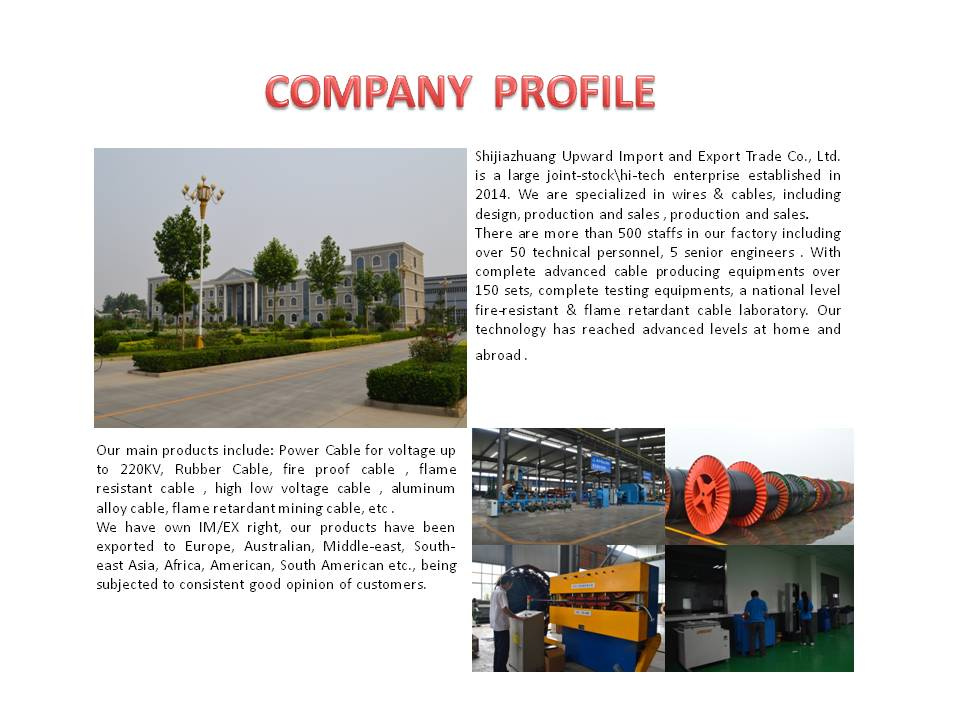

Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.

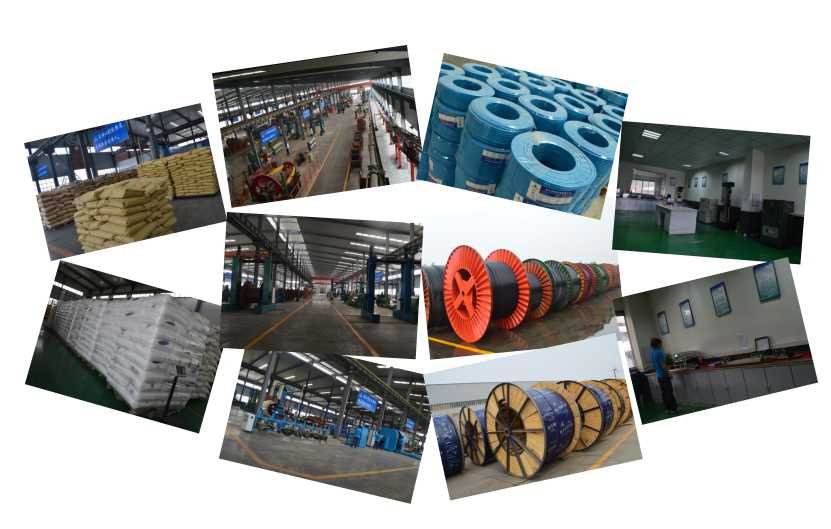

The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
