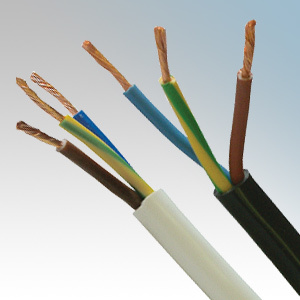

Rvv Type 300/300V Circular Light Flexible Cable with PVC Sheathed

Name: Rvv Type 300/300V Circular Light Flexible Cable with PVC Sheathed
Brand: all-electronics-online.com
SKU: 682881832
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	US $ 0.88-8.88/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVV
Conductor:	Copper
Insulation:	PVC
Voltage:	300/300 V
Type:	Insulated
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Sold or Stranded
Range Of Application:	Electrical Construction
Brand:	Jytop

Product Description

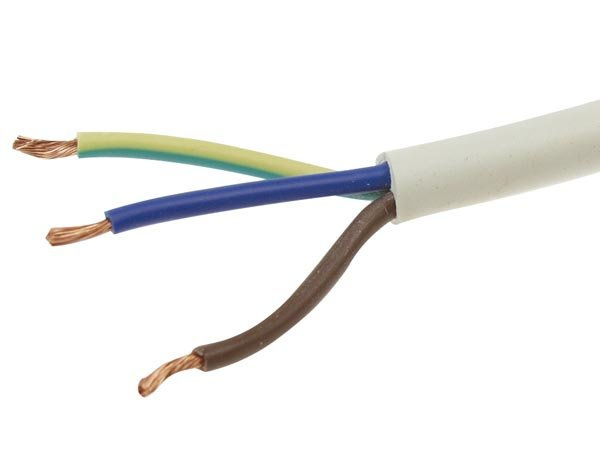

RVV Type 300/300V Circular Light Flexible Cable with PVC Sheathed

Specifications:
flexible RVV Cable:
1.conductor:copper
2.insulation:pvc
3.voltage:450/750v
4.high quality

PVC insulated wire with rated voltage up to 300/300v :
PVC insulated electrical wires are covering series of wire products, it's working voltage is from 450/750V and it's working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, ETC.
According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire, Flexible PVC insulated wire with different colors.
According to its shape, including flat wire, round wires, ETC. With different colors
According to its core number, including single core wires, multi-core wire. Etc. With different colors.

Size of conductor		Nominal thickness of insulation mm	Nominal thickness of sheath mm	Mean overall diameter		Approx. net weight per km kg
Nominal cross-sectional area mm 2	Number and diameter of wires mm	Nominal thickness of insulation mm	Nominal thickness of sheath mm	Lower limit mm	Upper limit mm	Approx. net weight per km kg
3x1.0	1/1.13	0.6	0.9	4.0*8.4	4.7*9.8	77
3x1.5	1/1.38	0.7	0.9	4.4*9.8	5.4*11.5	100
3x2.5	1/1.78	0.8	1.0	5.2*11.5	6.2*13.5	150
3x4	7/0.85	0.8	1.1	5.8*13.5	7.4*16.5	230
3x6	7/1.04	0.8	1.1	6.4*15.0	8.0*18.0	300
3x10	7/1.35	1.0	1.2	7.8*19.0	9.6*22.5	485
3x16	7/1.70	1.0	1.3	9.0*22.0	11.0*26.5	700

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
