Rx18 Type Aluminum Wire Wound Variable Resistor
| Price: |
US $ 0.5-15/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RX18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Certification: |
ISO14000 |
| Quality Certification: |
ISO9001: 2008 |
| Tolerance: |
5%,10% |
| Color: |
White |
| Productor Name: |
Rx18 Type Alluminum Wire Wound Variable Resistor |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Metal Film Resistor |
| Package Type: |
Surface Mount |
| Type: |
Humidity Sensitive Resistor |
| Brand: |
Liwang |
Product Description

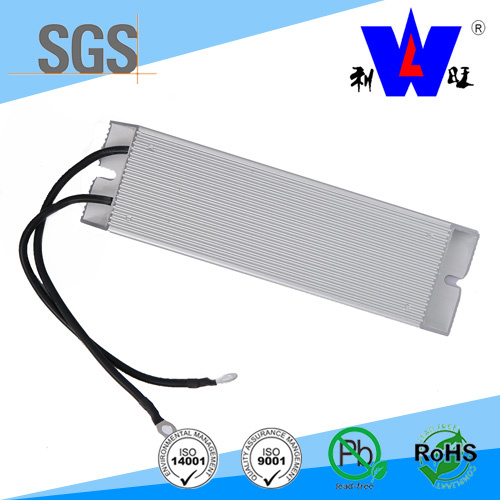

Product description of Rx18 Type Aluminum Wire Wound Variable ResistorRating wattge:60~2000W
Resistance tolerance
Production
name | Dynamic Braking Resistor,Aluminum Housed Wirewound Braking Resistor,Brake Resistor,Wirewound Rheostat |
| Power rating |
40W-3000W |
| Resistance value |
0.01Ω-100KΩ |
| Resistance tolerance |
0.1%, 0.5%, 1%, 5%, 10% |
Features
|
1.High insulating capacity,encapsulation by non-flame inorganic
material,good performance in vibration humidity and heat and good
dissipation.
2.Small size,high power load
3.Widely used in power supply,transducer, elevator,arena audio and
Lifting,Braking,Ship ,Load equipment, high requirement equipment
industry,ect.
4.Multi connection form will be easily to fix. |
Common
specification |
60W50Ω,80W20Ω,80W60Ω,80W100Ω,100W20Ω,100W100Ω,120W68Ω,
150W20Ω,200W20Ω,200W200Ω,300W20Ω,300W150Ω,300W200Ω,400W150Ω,
400W20Ω,500W100Ω,500W20Ω,800W75Ω,1040W50Ω,1040W75Ω ect. |
| Remark |
Specifications can be customized. |
Performance
|
Test item |
Test condition |
performance |
Temperature
coefficient |
JIS-C-5202 5-2 |
±250PPM/Max |
Power rating
load |
JIS-C-5202 5-4 |
R≤±(1%+0.1Ω)Surface temperature ≤350 |
Short-term
overload |
JIS-C-5202 5-5
1000% rated power 5s |
Free or appearance or
structural irregularity
R≤±(2%+0.1Ω) |
Insulation
resistance |
JIS-C-5202 5-6
1000V DC |
100 MΩ Min |
Dielectric
withstanding
voltage |
JIS-C-5202 5-7
1500V DC 60s |
Free or appearance or
structural irregularity
R≤±(0.1%+0.05Ω) |
Vibration |
JIS-C-5202 6-3
1.5mm,10-50-10Hz/min |
Free or appearance or
structural irregularity
R≤±(1%+0.05Ω) |
Thermal
shock |
JIS-C-5202 7-3
Room temp 30 min ON-55
15 min OFF |
Resistor free of structural irregularity crack of silicon cement surface
R≤±(2%+0.1Ω) |
humidity |
JIS-C-5202 7-5
40 90%RH 240H |
Free or appearance or
structural irregularity
R≤±(3%+0.1Ω) |
Load life |
JIS-C-5202 7-10
90Min ON-30Min OFF 500H |
Free or appearance or
structural irregularity
Discoloration of marking
R≤±(3%+0.1Ω) |
| Cooperation partner |
JOHNSON ELECTRONIC,KOA,FOXCONN and so on. |
NOTE |
1. For customer specifications,please contact us to discuss the details.
2. Different power rating owning multi weight ,dimension and packing .
3. More details, please contact us. |
Shipping:
Headline |
Help you quickly complete the new product's whole
process within 3 days from design production to delivery. |
Basis of title |
The entire process is completed internal, in order to
ensure that you can get faster delivery service
than from any other supplier. |
We introduce the most advanced technology
continually to meet the most stringent quality standards,
every product is tested,and returning rate <0.01%,
so that we can meet the needs of buyers from more than 70 countries. |
Other advantages |
1,Complete Certification and standards: UL;
ISO 9001; ISO 14001; SGS; REACH; RoHS |
2,Factory Area: 13000 square meters |
3,Production capacity: 30,000,000 pieces of
transformers, inductors, coils,resistors |
4,Service: provide customers with the most
satisfactory service to solve the product difficult |
5,"3 fast": Replying fast; Offering fast; Delivering fast |
company profile |
Changzhou Southern Electronic Element Factory Co., Ltd.
was founded in 1989 and is a high-tech company
which integrates production, design, R&D, and sale.
We specialize in developing many
kinds of electronic components. Include electronic
transformers, SMD power, inductors coils,
fixed inductors, toroidal coils, common mode chokes, resistors and transformers.We are ISO 9001 and ISO 14001 certified and our
products come with UL, RoHS and SGS marks.
For more details, please contact us without hesitation. |
AII products of the size,electronical performance can be designed. If you have any questions or requirements, please contact us freely in any time.
Our product will the best choice for you.
Welcome to provide us your specifications. We will submit the best quotation shortly.
Don't hesitate to contact us, we will try our best to satisfy with you within our capability.
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
