| Prod Model: |
RX20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Certification: |
ISO14000 |
| Quality Certification: |
ISO9001: 2008 |
| Safety Certification: |
CQC 03003095~3097 |
| Other Certification: |
RoHS |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Load Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Surface Mount |
Product Description

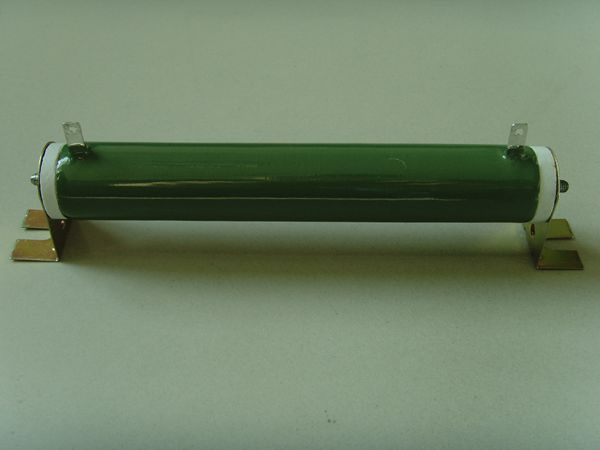

RX20 Series Type Enamel Variable Wire Wound Resistor
1. Low resistance and high power
2. High stability electric conduction flim
3. RoHS & ISO9001
Product Description
1. Resistance Tolerance: ± 5%, ± 10%
2. Rated Power: 2.5-150W
3. Resistance Range: 5.1-150KΩ
Specification
1. Wide range of power(8W-3000W);
2. Coated with glaze paint, Anti-eat off, Anti high temperature, canbe used under bad envinment;
3. Anti wet, good insulation, powerful overload capacity, stability hotful, long-life operating;
4. T-type resistance can be changed, convenience for resistance turned.
Packing:
We can pack your goods in export-worthy carton, on pallet.
Shipping
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account.
All products of the size, electrical performance can be designed. If you have any questions or requirements, please contact us freely in any time.
|
Model |
Rated
power
(W) |
Overall dimensions(mm) |
Weight(g) |
|
L |
D |
d |
H |
h |
L1 |
K |
b |
t |
d1 |
c |
Fixed |
Adjustable |
|
RX20 |
8W |
35 |
14 |
5.5 |
- |
28.5 |
- |
- |
3.5± 0.8 |
4.5 |
2 |
8± 1.5 |
23 |
- |
|
10W |
41 |
14 |
5.5 |
31 |
28.5 |
20 |
6± 2 |
27 |
34 |
|
15W |
45 |
17 |
8 |
34 |
31 |
23 |
36 |
42 |
|
20W |
51 |
17 |
8 |
34 |
31 |
30 |
44 |
52 |
|
25W |
51 |
21 |
12 |
39 |
35 |
30 |
57 |
67 |
|
30W |
71 |
21 |
12 |
39 |
35 |
44 |
80 |
90 |
|
40W |
87 |
21 |
12 |
39 |
35 |
57 |
98 |
110 |
|
50W |
91 |
29 |
20 |
47 |
43 |
60 |
7± 2 |
4.5± 1 |
6 |
2.5 |
132 |
144 |
|
75W |
140 |
29 |
20 |
47 |
43 |
110 |
253 |
265 |
|
100W |
170 |
29 |
20 |
47 |
43 |
140 |
286 |
298 |
|
150W |
215 |
29 |
20 |
47 |
43 |
185 |
385 |
397 |
|
200W |
215 |
38 |
25 |
60.5 |
58 |
160 |
7± 2 |
8± 1 |
9 |
4 |
11± 1.5 |
475 |
495 |
|
200/250W |
266 |
30 |
16 |
50 |
47 |
210 |
510 |
530 |
|
300W |
266 |
36 |
20 |
58 |
58 |
210 |
8± 2 |
630 |
650 |
|
400W |
250 |
54 |
30 |
76.5 |
79 |
180 |
10± 2 |
1000 |
1020 |
|
500W |
300 |
54 |
30 |
76.5 |
79 |
230 |
16 |
8 |
17± 1.5 |
1340 |
1360 |
|
Model |
Rated power(W) |
Resistance range(Ω ) |
Admissible resistance deviation (%) |
Temperature coefficient
(× 10 -6 /tm) |
|
Fixed |
Adjustable(T) |
|
RX20 |
8W |
5.1~3.3K |
- |
± 1
± 5
± 10 |
± 250 |
|
10W |
5.1~10K |
5.1~200 |
|
15W |
5.1~15K |
5.1~220 |
|
20W |
5.1~20K |
5.1~430 |
|
25W |
10~24K |
10~510 |
|
30W |
10~30K |
10~1K |
|
40W |
20~51K |
20~1.2K |
|
50W |
20~51K |
20~1.5K |
|
75W |
20~56K |
20~2K |
|
100W |
24~62K |
24~2.7K |
|
150W |
20~150K |
20~4.3K |
|
200W |
4.7~12K |
5.1~3K |
|
200/250W |
4.7~12K |
5.1~3K |
|
300W |
4.7~12K |
5.1~3K |
|
400W |
5.1~10K |
6.2~3K |
|
500W |
5.1~10K |
6.2~3K
|
