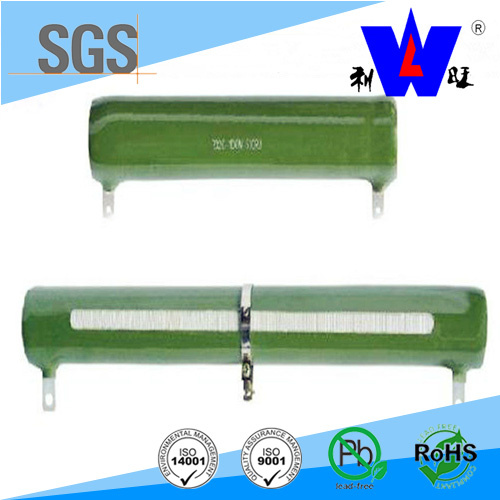

Rx20 Type Enamel Wire Wound Variable Resistor with RoHS

Name: Rx20 Type Enamel Wire Wound Variable Resistor with RoHS
Brand: all-electronics-online.com
SKU: 761355375
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	US $ 0.1-50/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Resistance Tolerance:	5%,10%
Color:	Green
Productor Name:	Rx20 Type Enamel Wire Wound Variable Resistor
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Type:	Photoresistor
Brand:	Liwang

Product Description

Product description of Rx20 Type Enamel Wire Wound Variable Resistor with RoHS
1. Low resistance and high power
2. High stability electric conduction flim
3. RoHS & ISO9001

Product Description
1. Resistance Tolerance: ± 5%, ± 10%
2. Rated Power: 2.5-150W
3. Resistance Range: 5.1-150KΩ

All products of the size, electrical performance can be designed. If you have any questions or requirements, please contact us freely in any time.

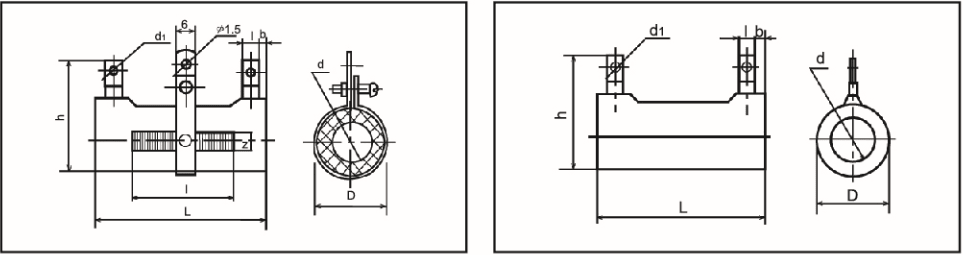

Model	Rated power (W)	Overall dimensions(mm)											Weight(g)
Model	Rated power (W)	L	D	d	H	h	L1	K	b	t	d1	c	Fixed	Adjustable
RX20	8W	35	14	5.5	-	28.5	-	-	3.5± 0.8	4.5	2	8± 1.5	23	-
	10W	41	14	5.5	31	28.5	20	6± 2					27	34
	15W	45	17	8	34	31	23						36	42
	20W	51	17	8	34	31	30						44	52
	25W	51	21	12	39	35	30						57	67
	30W	71	21	12	39	35	44						80	90
	40W	87	21	12	39	35	57						98	110
	50W	91	29	20	47	43	60	7± 2	4.5± 1	6	2.5		132	144
	75W	140	29	20	47	43	110						253	265
	100W	170	29	20	47	43	140						286	298
	150W	215	29	20	47	43	185						385	397
	200W	215	38	25	60.5	58	160	7± 2	8± 1	9	4	11± 1.5	475	495
	200/250W	266	30	16	50	47	210	7± 2					510	530
	300W	266	36	20	58	58	210	8± 2					630	650
	400W	250	54	30	76.5	79	180	10± 2					1000	1020
	500W	300	54	30	76.5	79	230	10± 2		16	8	17± 1.5	1340	1360

Model	Rated power(W)	Resistance range(Ω )		Admissible resistance deviation (%)	Temperature coefficient (× 10 -6 /tm)
Model	Rated power(W)	Fixed	Adjustable(T)	Admissible resistance deviation (%)	Temperature coefficient (× 10 -6 /tm)
RX20	8W	5.1~3.3K	-	± 1 ± 5 ± 10	± 250
	10W	5.1~10K	5.1~200
	15W	5.1~15K	5.1~220
	20W	5.1~20K	5.1~430
	25W	10~24K	10~510
	30W	10~30K	10~1K
	40W	20~51K	20~1.2K
	50W	20~51K	20~1.5K
	75W	20~56K	20~2K
	100W	24~62K	24~2.7K
	150W	20~150K	20~4.3K
	200W	4.7~12K	5.1~3K
	200/250W	4.7~12K	5.1~3K
	300W	4.7~12K	5.1~3K
	400W	5.1~10K	6.2~3K
	500W	5.1~10K	6.2~3K

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation short.
It's our pleasure to be on service of you.Tank you.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
