Rx27 Series Cement Wirewound Resistors Power Resistor

Name: Rx27 Series Cement Wirewound Resistors Power Resistor
Brand: all-electronics-online.com
SKU: 825807395
Availability: InStock
Rating: 4.6 (133 reviews)

Price:	US $ 0.01-5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX27-3A
Environmental Certification:	ISO 14000
Quality Certification:	ISO9001: 2008
Safety Certification:	CQC 03003095~3097
Colour:	White
Productor Name:	Rx27-3A Wirewound Cement Resistor with RoHS
Resistance:	Fixed Resistor
Function For Resistance:	Load Resistor
Material:	Ceramic and Metal
Package Type:	Carton
Type:	Cement Resistor
Brand:	Liwang

Product Description

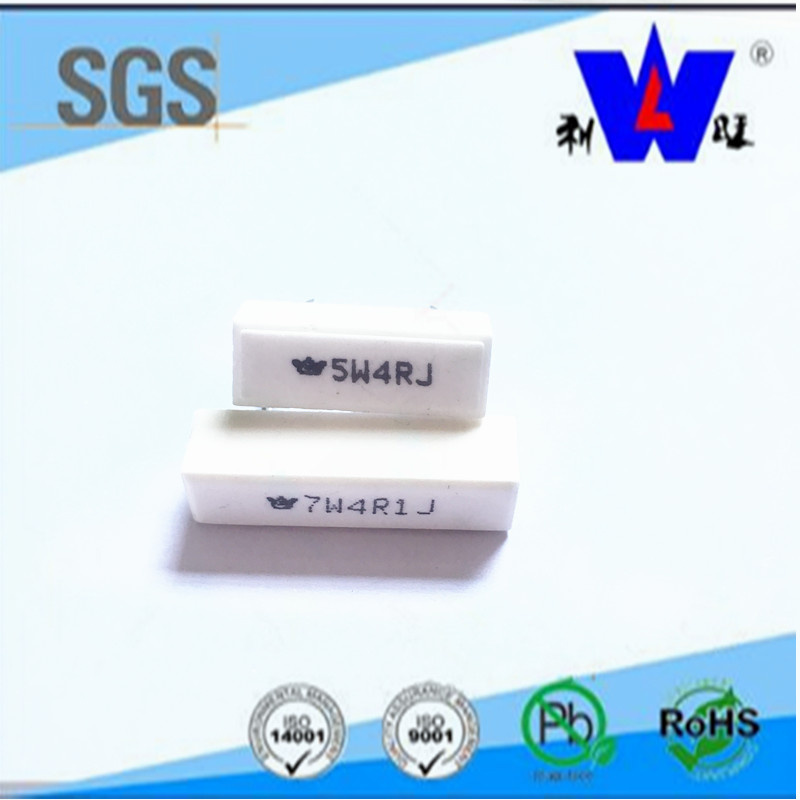

Rx27-3A Wirewound Cement Resistor with RoHS
Product Description:
1. Rated Power: 3-20W
2. Resistance Range: 0.20-3000Ω
3. Resistance Tolerance: ± 5%, ± 10%

Specifications:
1. Good resistance to heat
2. Good stability
3. Low temperature coefficient
4. ISO14000, ISO9001: 2008, CQC 03003095~3097, RoHS certification

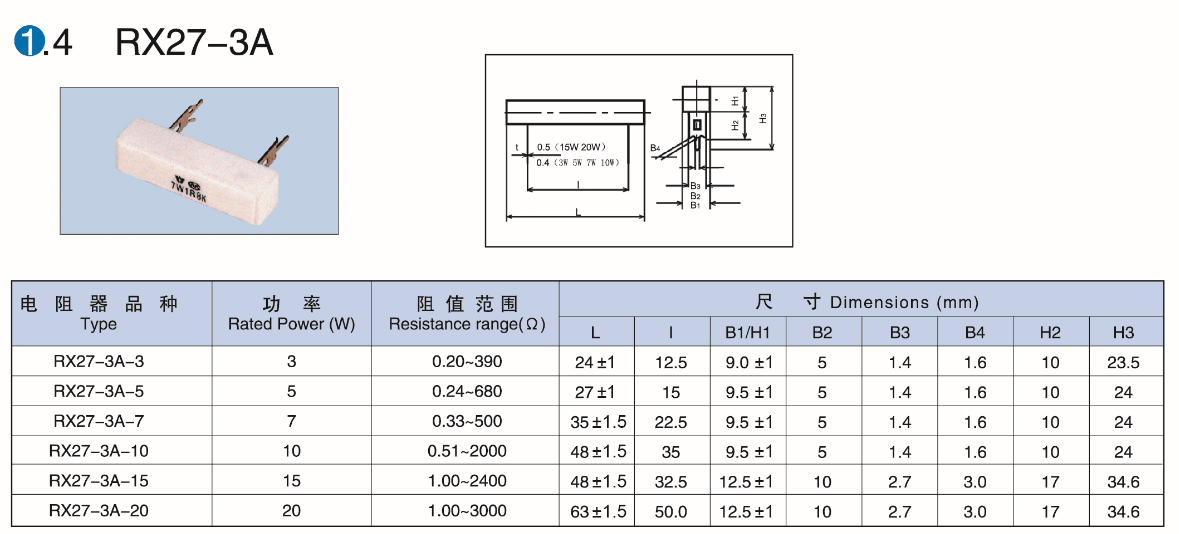

Dimensions:

type	rated power(W)	resistance range(Ω)
RX27-3A-3	3	0.20-390
RX27-3A-5	5	0.24-680
RX27-3A-7	7	0.33-500
RX27-3A-10	10	0.51-2000
RX27-3A-15	15	1.00-2400
RX27-3A-20	20	1.00-3000

Features:
1. Heat and flame resistant
2. Completely insulated character suitable for printed circuit board
3. Non-inductive type available on request

Advantage:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.quick response to the needs of our customers
5.wide range products
6.professional & experienced management team

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation shortly.
It's our pleasure to be on service of you.Thank you.

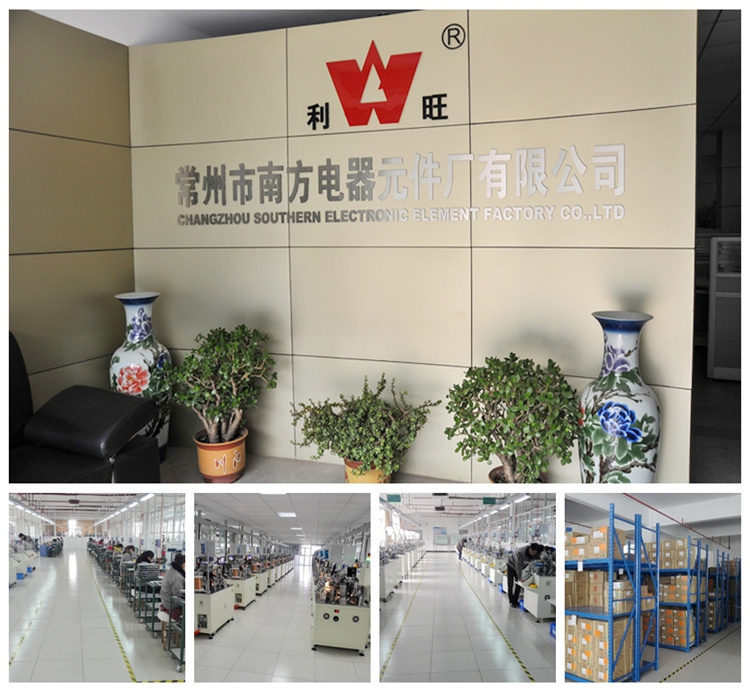

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
