Changzhou Southern Electronic Element Factory Co., Ltd. >> Rx600 Type 50W Aluminum Wirewound Resistor for Frequency Inverter

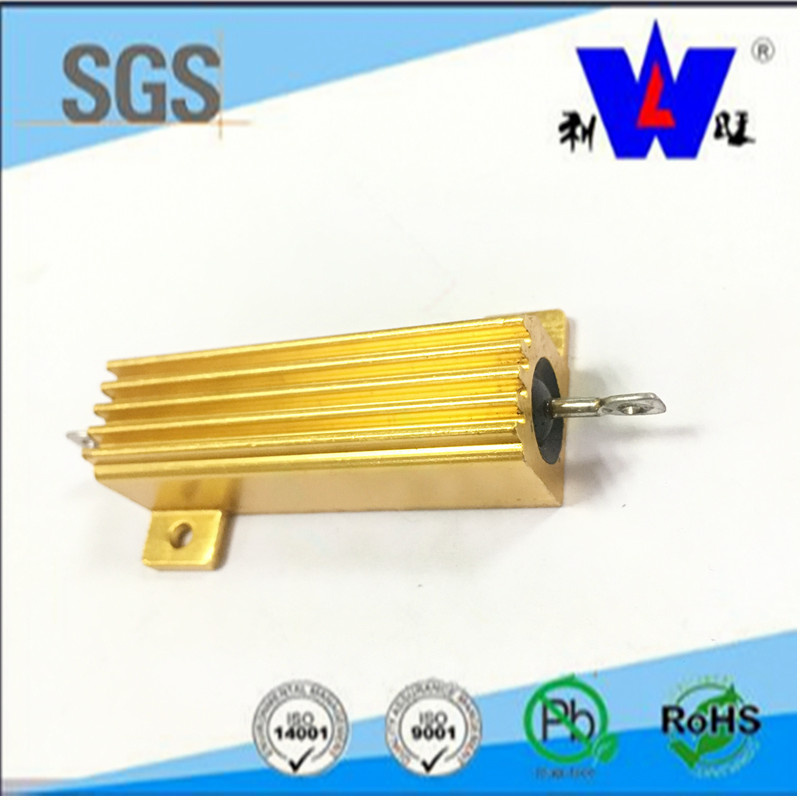

Rx600 Type 50W Aluminum Wirewound Resistor for Frequency Inverter

Rx600 Type 50W Aluminum Wirewound Resistor for Frequency Inverter
Price: US $ 0.1-50/Piece
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: RX600
Environmental Certification: ISO14001
Quality Certification: ISO9001: 2008
Safety Certification: CQC 03003095~3097
Other Certification: RoHS,Ts16949
Color: Gold Yellow
Resistance Tolerance: +-1% +-10%
Resistance: Fixed Resistor
Function For Resistance: Shunt Resistor
Installation: DIP Resistor
Material: Metal Film Resistor
Package Type: Surface Mount
Type: Fuse Resistor
Application: Auto
Brand: Liwang

Product Description

Resistance:  0.1~180KΩ
Resistance Tolerance:  ±1%,±2%,±5%,±10%
Rated Power:  3W~250W
Temperature Coefficient:  ±250PPM/ºC
Operating Temperature: -55ºC~+275ºC
product name:  RX600 underpan installating resistor
Quality Certification:  ISO9001: 2008
Environmental Certification:  ISO14000
color:  yellow
tolerance:  10%

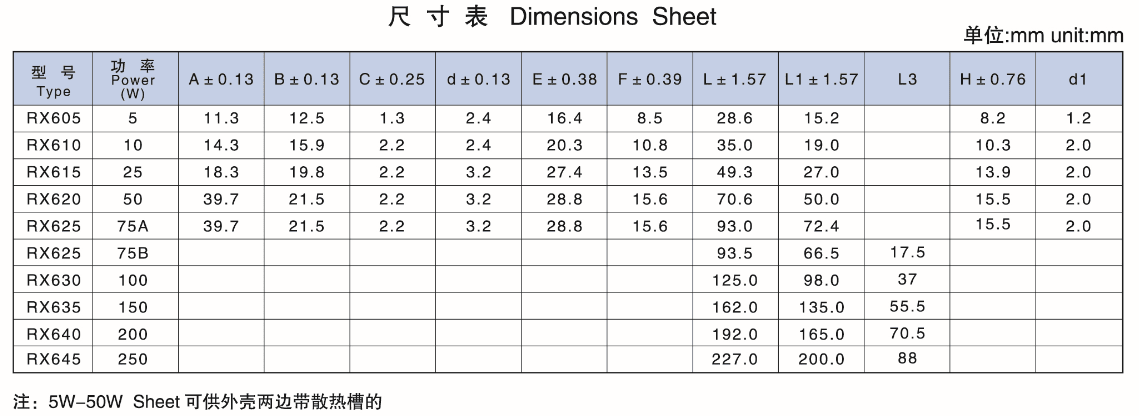

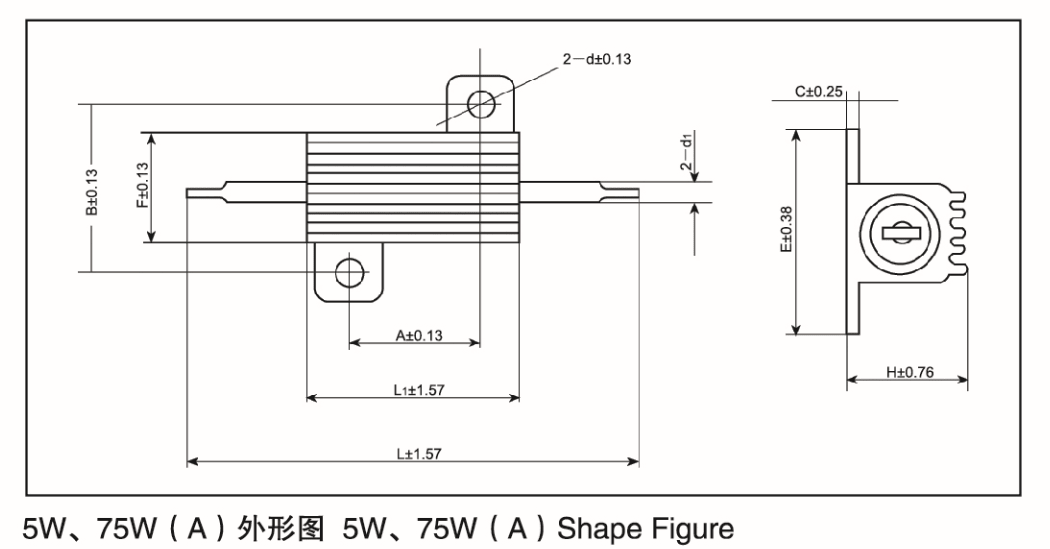

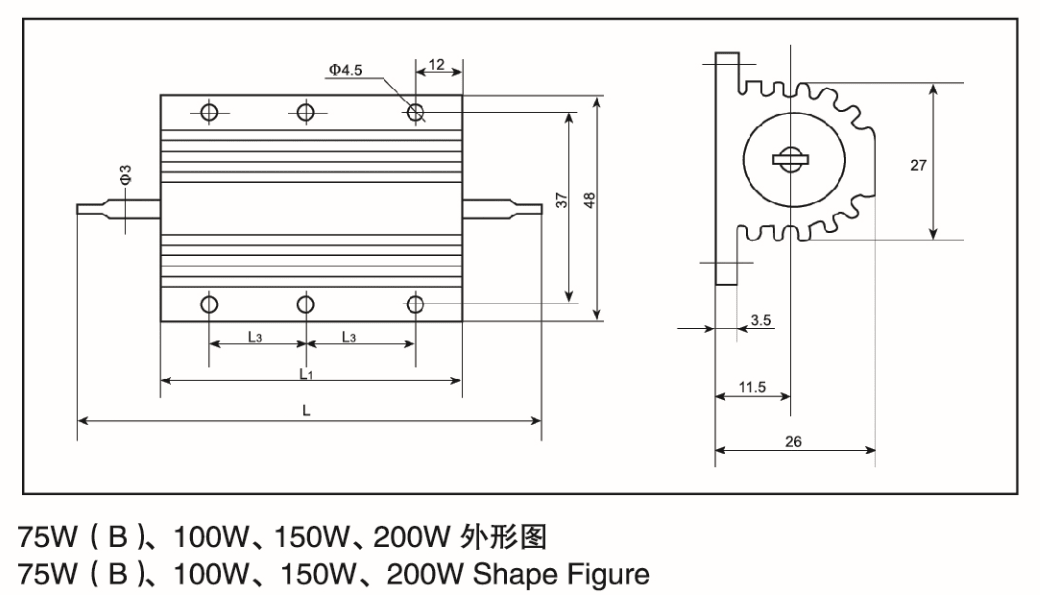

Dimension:

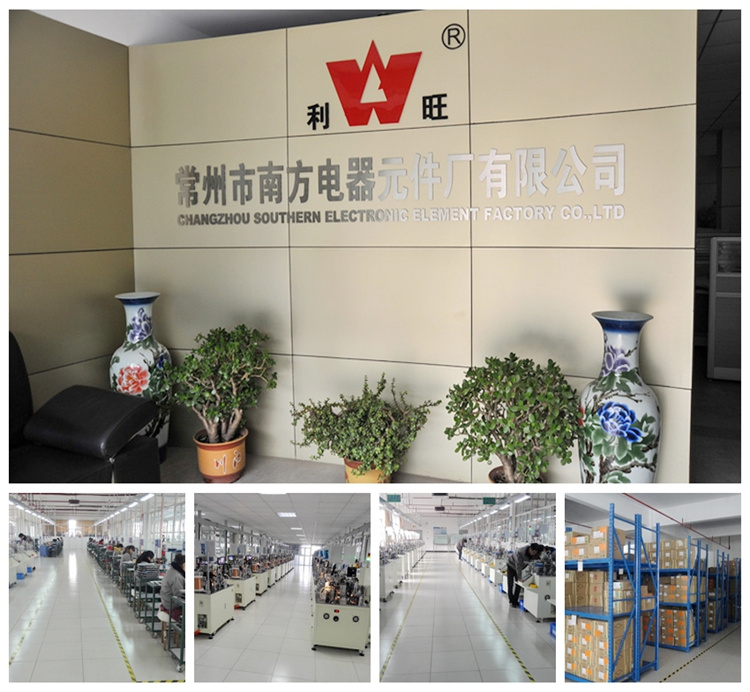

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
