RZL12, JDZL10-3, 6, 10A(B) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Transformer Standards: |
IEC186 , GB1207-1997 |
| Power Factor Of Load: |
Cos = 0.8(Lagging) |
| Surface Creepage Distance: |
The Product Accords with The Request of Class II |
| Insulated: |
Casting Resin |
| Application: |
Power |
| Phase: |
Single |
| Brand: |
People |
Product Description

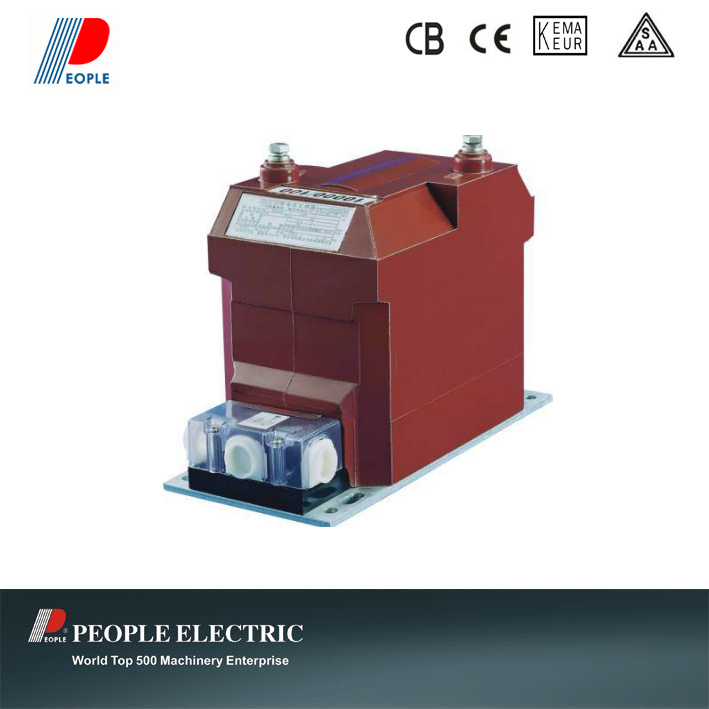

The voltage transformers of types RZL(Jdz)10-3, 6, 10A(B) are single phase, casting resin insulated and full enclosed products. They are used for metering electric energy, voltage control and relay protection in the electric non-useful-grounded neutral system up to rated frequency 50Hz or 60Hz and rated voltage 3kV, 6kV and 10kV. The transformers can be executed according to the standards IEC186 and GB1207-1997.
CONSTRUCTION

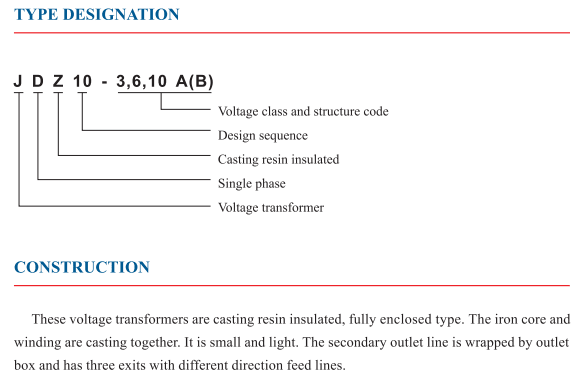

These voltage transformers are casting resin insulated, fully enclosed type. The iron core and winding are casting together. It is small and light. The secondary outlet line is wrapped by outlet box and has three exits with different direction feed lines.
TECHNICAL DATA

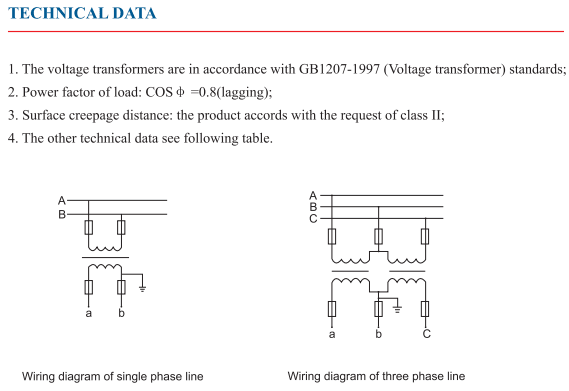

The voltage transformers are in accordance with GB1207-1997(Voltage transformer) standards;
Power factor of load: COSφ =0.8(lagging);
Surface creepage distance: The product accords with the request of class II
The other technical data see following table.
| Type | Rated voltage Tation(V) | Frequency | Accuracy class and rated output(VA) | Limit output (vA) | Rated insulated level(kV) | Remarks |
| 0.2 | 0.5 | 1 | 6P |
| JDZ10-3A1 JDZ10-3A2 | 3000/100 | 50.60 | 15 | 30 | 60 | | 150 | 3.6/25/40 | And RZL10 |
| JDZ10-6A1 JDZ10-6A2 | 6000/100 | 15 | 30 | 60 | | 150 | 7.2/32/60 |
| JDZ10-10A1 JDZ10-10A2 | 10000/100 | 15 | 30 | 60 | | 150 | 12/42/75 |
| JDZ10-3B1 JDZ10-3B2 | 3000/100 | 25 | 50 | 90 | | 300 | 3.6/25/40 |
| JDZ10-6B1 JDZ10-6B2 | 6000/100 | 25 | 50 | 90 | | 300 | 7.2/32/60 |
| JDZ10-10B1 JDZ10-10B2 | 10000/100 | 25 | 50 | 90 | | 300 | 12/42/75 |
| JDZX10-3AG | 3000/ √3 /100/ √3/100/√3 | | 40 | 60 | 50 | 150 | 3.6/25/40 | |
| JDZX10-6AG | 6000/√3 /100/ √3/100/√3 | | 40 | 60 | 50 | 150 | 7.2/32/60 |
| JDZX10-10AG | 10000/ √3/100/√3 /100/√3 | | 40 | 60 | 50 | 150 | 12/42/75 |
| JDZX10-3BG | 3000/√3 /100/ √3/100/√3 | | 50 | 90 | 50 | 400 | 3.6/25/40 |
| JDZX10-6BG | 6000/√3 /100/ √3/100/√3 | | 50 | 90 | 50 | 400 | 7.2/32/60 |
| JDZX10-10BG | 10000/√3 /100/ √3/100/√3 | | 50 | 90 | 50 | 400 | 12/42/75 |
