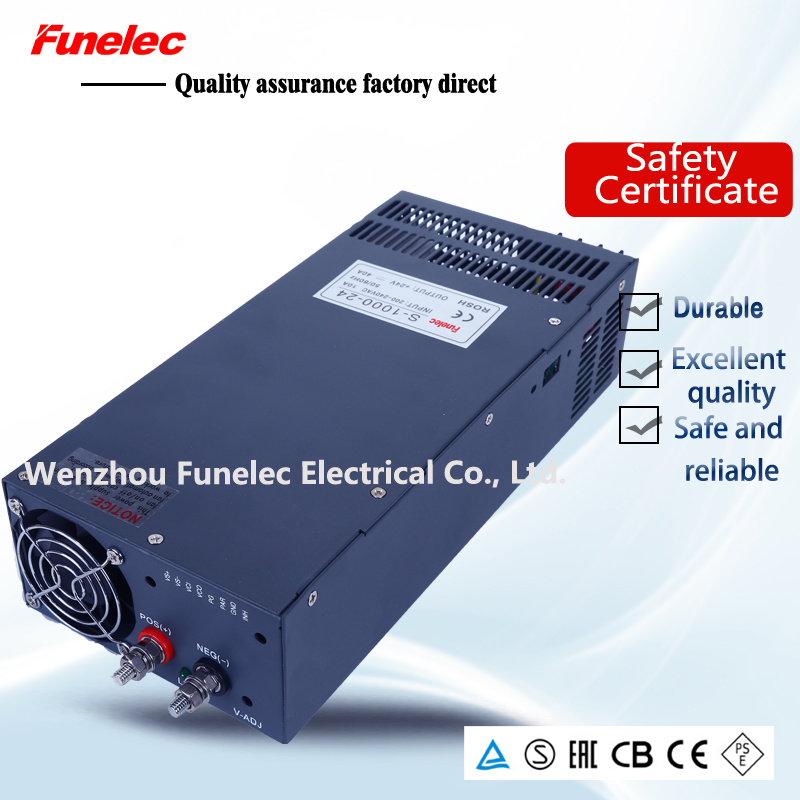

| Prod Model: |
S-1200-48 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
>500W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
CB |
| Brand: |
Funelec |
Product Description
Wenzhou Funelec Electric Co., Ltd. is a high-tech enterprise which is engaged in the design, development, production switching power series products. we are a professional manufacturer of power supplies ,all of our products have approved CE CB and ISO9001.
The EFC capacitors and our own transformers make our products have 3 years warranty,The payment terms which we accept L/C T/T westion union and paypal !
We get a good feedback from our customers ,what we want to do is make your business easy ,
We accept OEM and Sample order,MOQ IS 1PC .
Here take 30W for example !
| Model | SCN-1200-05 | SCN-1200-12 | SCN-1200-15 | SCN-1200-24 | SCN-1200-48 |
| | DC output voltage | 5V | 12V | 15V | 24V | 48V |
| Output | Output voltage tolerance | ±2.5% | ±1% | ±1% | ±1% | ±1% |
| | Rated output current | 180A | 100A | 80A | 50A | 25A |
| | Output current range | 0-180A | 0-100A | 0-80A | 0-50A | 0-25A |
| | Output power | 900W | 1200W | 1200W | 1200W | 1200W |
| | Ripple and the noise | 100mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | 480mVp-p |
| | Dc voltage adjustable scope | + 5%; By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value |
| | Start, rise, keep time | 800ms, 50ms, 16ms Loaded with |
| Intput | Input voltage range | 200~260 VAC47~63 Hz; 290~370VDC |
| Exchange input current | 11A/230VAC |
| efficiency | 85% | 88% | 89% | 91% | 93% |
| Impulse current | 120A230V |
| Leakage current | 3.5 mA/240VAC |
| Protection characteristics | Overload protection | 101%~115% | 110%~135% |
| Protection way: current limiting, delay shut off, restart |
| Overvoltage protection | 110%~135% |
| Protection way: cut output, restart |
| High temperature protection | TSW1 (power tube) temperature > 100 ºC, restart when cut off output |
| Environment | Working temperature, humidity | -10ºC~+65ºC,20%~90 %RH |
| Keep temperature, humidity | -20ºC~+85ºC,10%~95 %RH |
| Vibrate resistance | 10 ~ 200 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis |
| Security | Compression sex | I/P-O/P, I/P-FG:1500VAC |
| Insulation resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC |
| Standards | Safety standards | Accord with |
| UL1950,CSA22.2,IEC60950 |
| EMC standard | Accord with |
| FCC Part 15 Class A |
| Other | Weight | 4.7Kg; |
| Packaging | 4pcs/20.2kg/CARTON |
| Note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ºC conditions measuring income value. |
| 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. |
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. |
| 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it's EMC index. |
Packaging & Shipping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
3.Shipment port:SHANGHAI/NINGBO
4.By Air or by Sea for batch goods,Airport/ Port receiving;
5.Customers specifying freight forwarders or negotiable shipping methods!
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
Company Information
FAQ
Q: If I'm interested in your SPD when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your SPD seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our SPD are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
