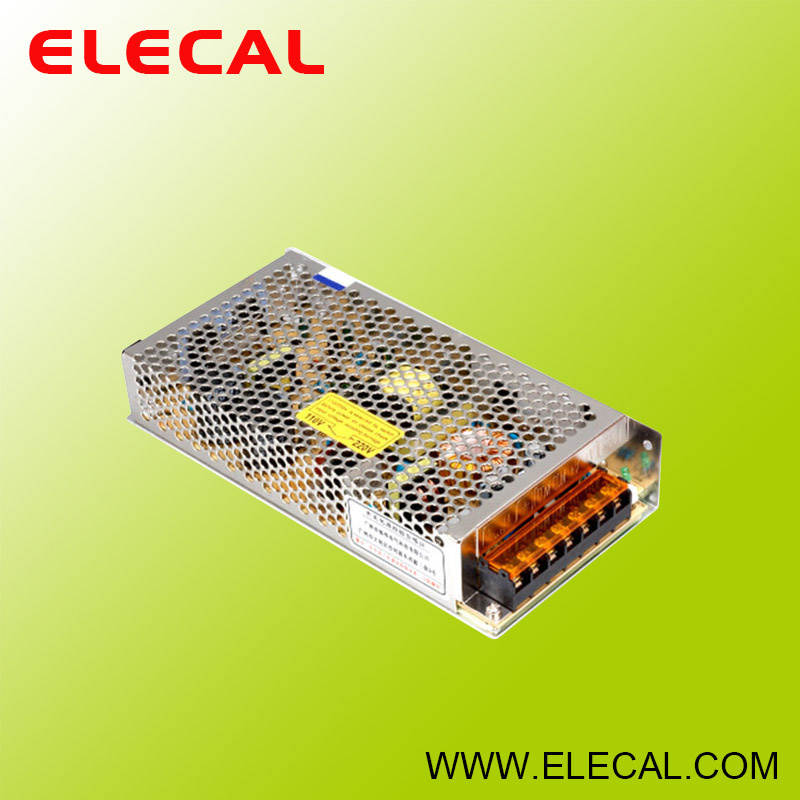

S-145 Single Output Switching Power Supply

Name: S-145 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828954465
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-145
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	125W/135W/144W
Input Voltage:	88- 132VAC/176- 264VAC
Brand:	Elecal

Product Description

MODEL		S-145-5	S-145-7.5		S-145-12	S-145-15	S-145-24
OUTPUT	DC VOLTAGE	5V	7.5V		12V	15V	24V
	RATED CURRENT	25A	18A		12A	9.6A	6A
	CURRENT RANGE	0-25A(30Amax.)	0-18A(21Amax.)		0-12A(14Amax.)	0-9.6A(11Amax.)	0-6A(7Amax.)
	RATED POWER	125W	135W		144W	144W	144W
	RIPPLE & NOISE (max.) Note^	100mVp-p	120mVp-p		120mVp-p	120mVp-p	150mVp-p
	VOLTAGE AD J. RANGE	4.5-5.5V	6-6.3V		10.6-13.2V	13.2-16.5V	21 ~ 28V
	VOLTAGE TOLERANCE NotoJ	±2.0%	±1.0%		±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%		±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±0.5%	±0.5%		±0.5%	±0.5%	±0.5%
	SETUP, RISE, HOLD TIME	100ms, 50ms, 20ms at full load
INPUT	VOLTAGE RANGE	88- 132VAC/176- 264VAC by switch
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY frVp.)	78%		80.5%	80.5%	81%	83.5%
	AC CURRENT	3.2A/115VAC 1.6A/230VAC
	INRUSH CURRENT (max.)	COLD START 35A
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVERLOAD	125 ~ 165% rated output power
		Protection type: Shut down o/p voltage, re-power on to recover
	OVERVOLTAGE	5.6-6.8V	8.6-10V		13.8-16.2V	17.3-20.3V	29 ~ 32V
		Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-10 - +60°C (Refflr to output load derating curve)
	WORKING HUMIDFTY	20 - 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20-+85°C,10-95% RH
	TEMP. COEFFICIENT	±0.03%A:(0-50t:)
	VIBRATION	10 - 500Hz, 2G lOmin./lcyde, 60min. each along X, Y, Zaxes
SAFETY* EMC	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	l/P-0/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	l/P-O/P, l/P-FG, 0/P-F&100M Ohms/500VDC
	EMI CONDUCTION ERADIATION	Compliance to EN55022 (CISPR22) Class B
	EMS IMMUNITY	Compliance to IEC801-2,3,4 Light Industry level, criteria A
OTHERS	HTBF	280.7Khre min. MIL-HDBK-217F (25°C)
	DIMENSION	199 98 38mm (LWH)
	PACKING	0.71 Kg; 30pcs/22.5Kg/1.22CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noi&d are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and loadregulation- 4. C3,4,22,41,63,140,141 must be removed. 5. Refer to output derating curve us input voltage.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
