Yueqing Winston Electric Co., Ltd. >> S-15 Single Output Switching Power Supply with Ce RoHS

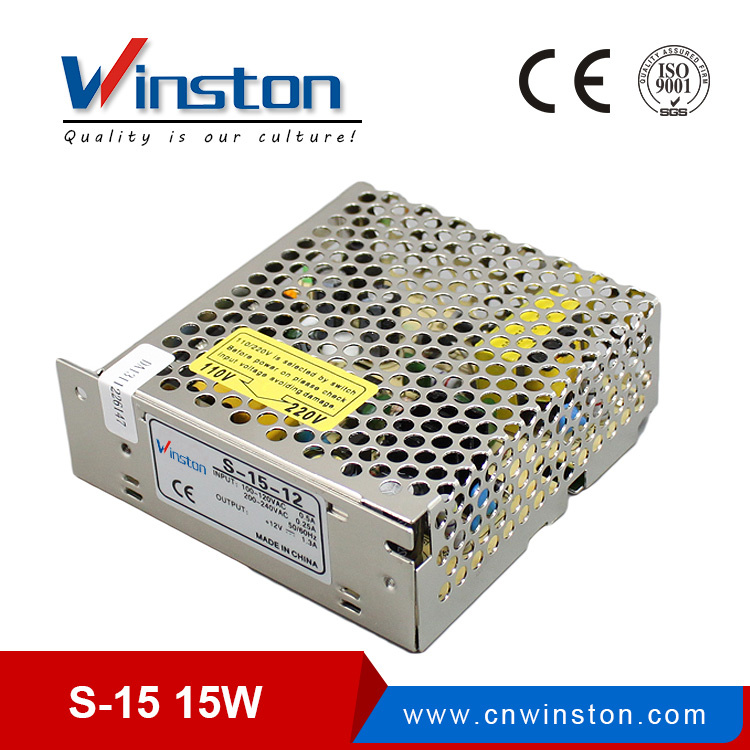

S-15 Single Output Switching Power Supply with Ce RoHS

S-15 Single Output Switching Power Supply with Ce RoHS
Price: US $ 3.98-5.12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: S-15-5, S-15-12, S-15-15, S-15-24
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Output Frequency: 50/60Hz
Output: 5VDC/3A, 12VDC/1.3A, 15VDC0.7A
Frequency: 47-63Hz
Product Size: 98*97*35mm
Certificate: Ce,RoHS
Weight: 0.3kg
Output Type: Single
Warranty: 2 Years
Output Power: 1 - 50W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Winston

Product Description

15W Single Output Switching Power Supply

Features:
1) AC Input range selectable by switch
2) Input side chassis plug
3) Protections:short circuit/overload/over voltage
4) Forced air cooling by built-in DC FAN
5) PWM control and regulated
6) Built-in cooling fan ON-OFF control
7) 100% full load burn-in test
8) Fixed switching frequency at 25KHZ

Specificatinon
ModelS-15-5S-15-12S-15-15S-15-24





Output
DC Voltage5V12V15V24V
Current Range0~3A0~1.3A0~1A0~0.7A
Rated Power15W15.6W15W16.8W
Wave & Noise50mVp-p100mVp-p100mVp-p100mVp-p
Voltage Adj. Range4.75-5.5V10.8-13.2V13.5-16.5V21.6-26.4V
Line Wire Regulation±0.5%±0.5%±0.5%±0.5%
Load Regulation±1.0%±0.5%±0.5%±0.5%
Setup, Rise Time300ms,50ms/230VAC 800ms,50ms/115VAC at full load
Hold Up Time (Typ.)90ms/230VAC 12ms/115VAC at full load




Input
Voltage Range85-264VAC 120-370VDC
Frequency Range47-63HZ
Efficiency (Typ.)65%68%68%72%
AC Current (Typ.)0.5A/115VAC 0.25A/230VAC
Inrush CurrentCOLD START 15A/115VAC 30A/230VAC
Leakage Current0.5mA/240VAC



Protection

Overload
105-150% RATED OUTPUT POWER
Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage
5.75V-6.75V13.8V-16.2V17.2V-20.25V27.6V-32.4V
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Working Temp &Humidity-10~+60°C , 20-90%RH non-condesing
Storage Temp & Humidity-20~+85°C,10-95%RH
Temperature Coefficient±0.03%°C(0-50°C)
Vibration10-500HZ




Safety
Safety StandardCE RoHS
Withstand VoltageI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation ResistanceI/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMC StandardDesign refer to GB9254,EN55022 Class A
Dimension98*97*35mm
Packing43*32.5*24CM/60pcs/18kg
PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.






Trade TermsFOB ,CIF ,CFR,EXW,DDP
Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery
Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.

Our factory focus on formulating most kinds of electrical in China. Which include proximity sensor, power supply, motor soft starter, frequency inverter, relay, thermostat, heater, transformer and so on. We are capable of supplying our products in various kinds of packaging according to customers' specific requirements. Now we are producing more than 100 kinds of electrical products which are exported to about 80 countries and regions all over the world. But Winston have never stop going forward, in order to control the cost, and supply competitive price for our customers, in 2012, together with our partners, we build another factory, which producing circuit breaker, distribution box, AC contactor, etc.

Winston have an special professional registration department, who in charge of the domestic registration and oversea registration. We can help our current or potential customers to do registration work. We have a good relation with domestic famous institute who can provide us with authoritative impurity analysis and toxicological report. Quality and Service are always the top concern in Winston. We provide full set of service, including data and samples, which are available on request.

Winston's Mission is: "Focus on the industrial Electrical protection, serve the worldwide Electrical. And our tenet is: "Hold integrity, Forge Ahead, Serve the world". We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, It's the way we win our customers and the market.

Given Chance and full space, we would show you all of our advantages and let's grow up together. I am sure we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service.

Our advantage:

1. Quality is our culture.

2. We have our own developing and designing team, which ensure our own technological and innoative products for customers.

3. For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

4. For any customers who send us the samples of some products, we will design and develop better ones based on the samples!

5. For every customer, we will choose the best fit material, and also innovative material for their products!

6. We can according to any customers' design to do sample of them!

7. We are manufacturer, factory, so we have the ability of mass production!

8.24*7 service, professional sales group.

Technical Support:

Most of our Winston products adopt Germany advanced technology, and the producing machine are all equipped with advance system, all our workers are experienced and skilled!

Besides, for some products material are all use imported parts.

So the quality and safety are guaranteed!

After sale service:

Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Winston has a complete supply system for the parts, which can guarantee the company's demand of product accessories. We have stocked the common parts in the major cooperation point world widely, which can shorten the supply time largely. So if have any question, just contact us any time at your convenience!

Transportation service:

We can guarantee the fast and safe delivery to the customers' hand.
