| Prod Model: |

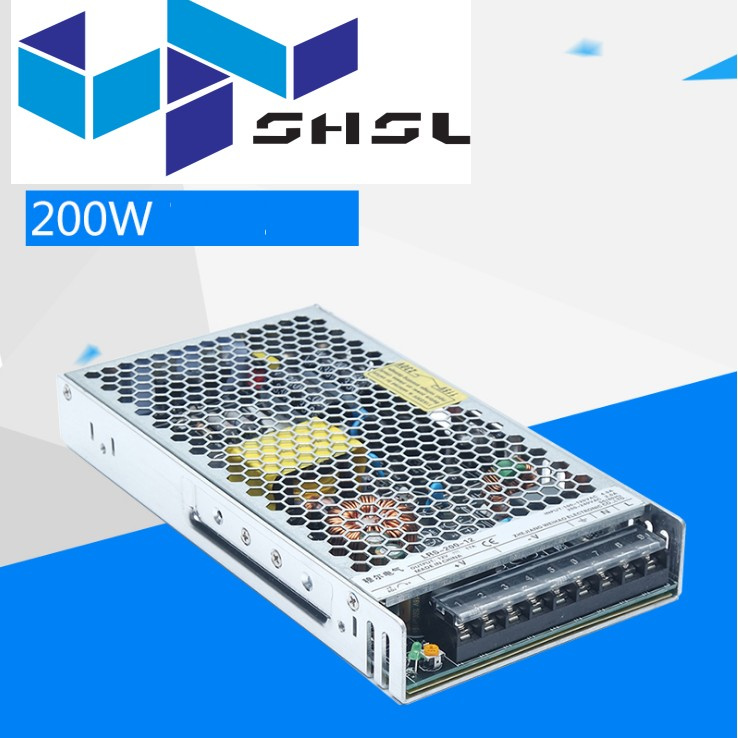

S-200-12 LED Switching Power Supply 12V 200W |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
401 - 500W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CSA |
Product Description
Features :

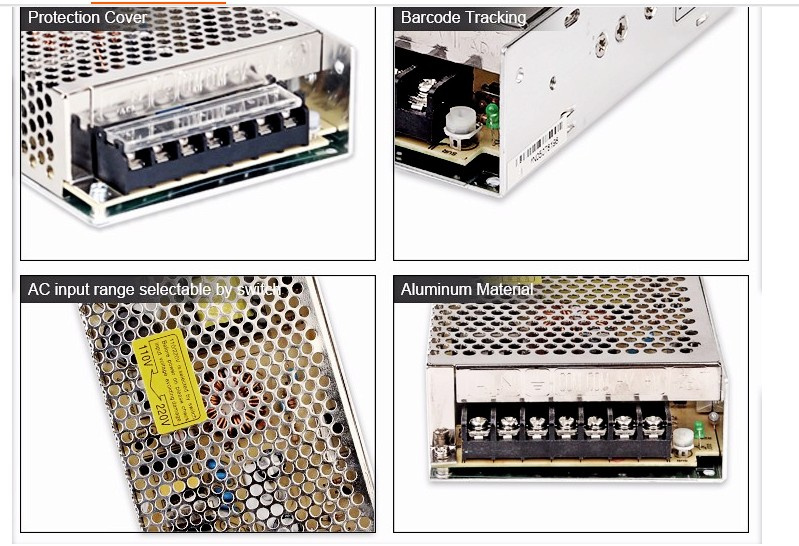

• AC input range selectable by switch

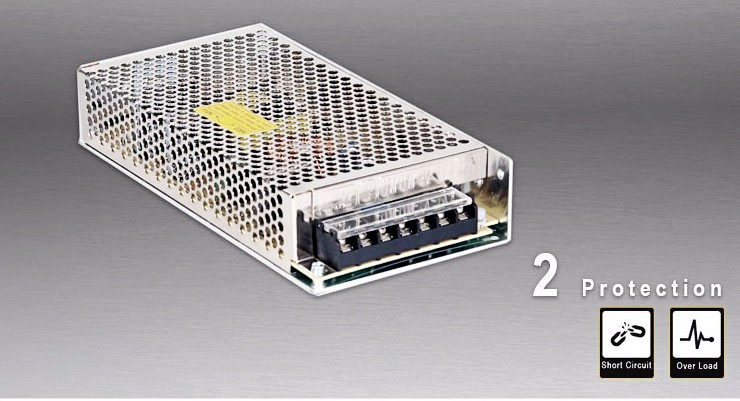

• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 83KHz
• 2 years warranty
Product Parameter :
Model | S-200-5 | S-200-12 | S-200-24 | S-200-27 | s-200-36 | s-200-48 |
Output | DC voltage | 5V | 12V | 24V | 24V | 36v | 48v |
Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
Rated current | 40A | 16.5A | 8.3A | 7.4A | 5.6A | 4.2A |
Current range | 0~40A | 0~16.5A | 0~8.3A | 0~7.4A | 0~5.6A | 0~4.2A |
Rated power | 200W | 198W | 199.2W | 199.8W | 201.6W | 201.6W |
Ripple & noise | 120mvp-p | 150mvp-p | 180mvp-p | 180mvp-p | 200mvp-p | 200mvp-p |
DC voltage adjustable range | -9%~+ 10% | ±10% | ±10% | ±10% | ±10% | ±10% |
Input | Voltage range | 90~132VAC,/180~264VAC selected by switch,
255~373VDC |
Frequency | 47~63HZ |
AC current | 3.2A/115VAC, 1.6A/230VAC |
Efficiency | 79% | 82% | 82% | 82% | 83% | 84% |
Inrush current | Cold start current 20A/115VAC 40A/230VAC |
Leakage current | <3.5mA/240VAC |
Protection | Over load | 115 ~ 150% rated output power |
Protection type: fold back current liming, auto-recovery. |
| Over tempreture | ≥85°c ±5°c cut off the output, auto-recovery |
Environment | Working temp, humidity | -10°C~+60°C, 20%~90%RH |
Storage temp, humidity | -20°C~+85°C, 10%~95%RH non-condensing |
Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes, each axes |
Safety | Withstand voltage | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC 1 minute |
Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100MΩ/500VDC |
Fit standard | Safety standard | Compliance to UL1012 |
EMC standard | Compliance to EN55022,CLASS A |
FAQ
1. Q:What can we do for you?
A:1) Competitive Price( Factory direct price) .
2) On time delivery
3) Good customers service
4) Professional Technology
5) Quality Control through the whole Manufacturing process
2. Q: Do you have a catalogue? Can you send me the catalogueto have a check of all your products?
A: Yes , We have product product list.Please contact us online or send an Email to sending the catalogue.
3. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
4. Q: I can find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.
5. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That's a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.
6. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year.
