| Prod Model: |
S-25-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Guarantee: |
2 Year |
| Type: |
Constant Voltage |
| IP Code: |
20 |
| Output Current: |
6A |
| Material: |
Aluminum Case |
| Efficiency: |
80% |
| Weight: |
0.37kg |
| Test: |
Full Lode 100% Burn-in Test |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Weho |
Product Description

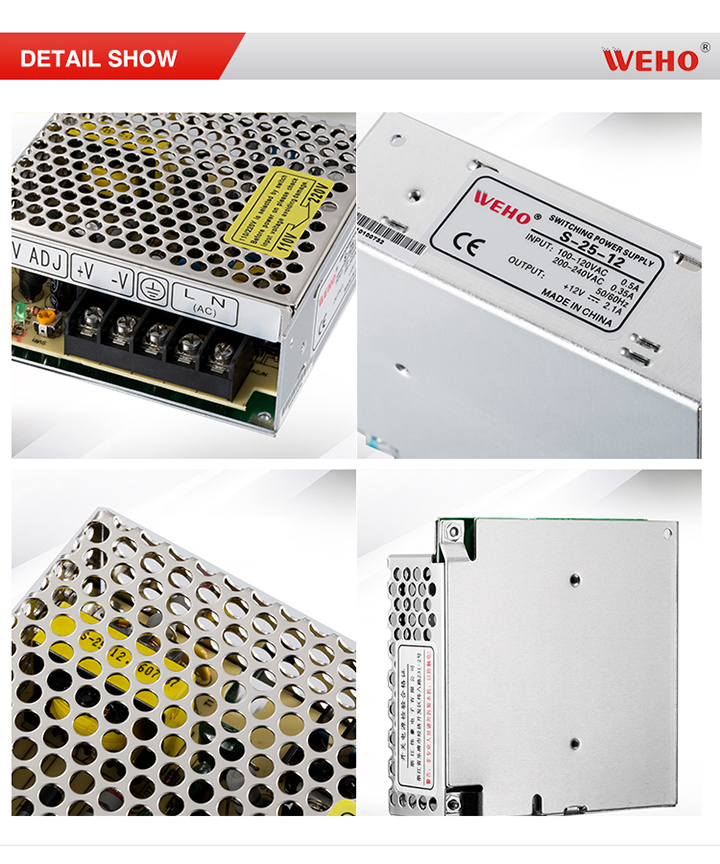

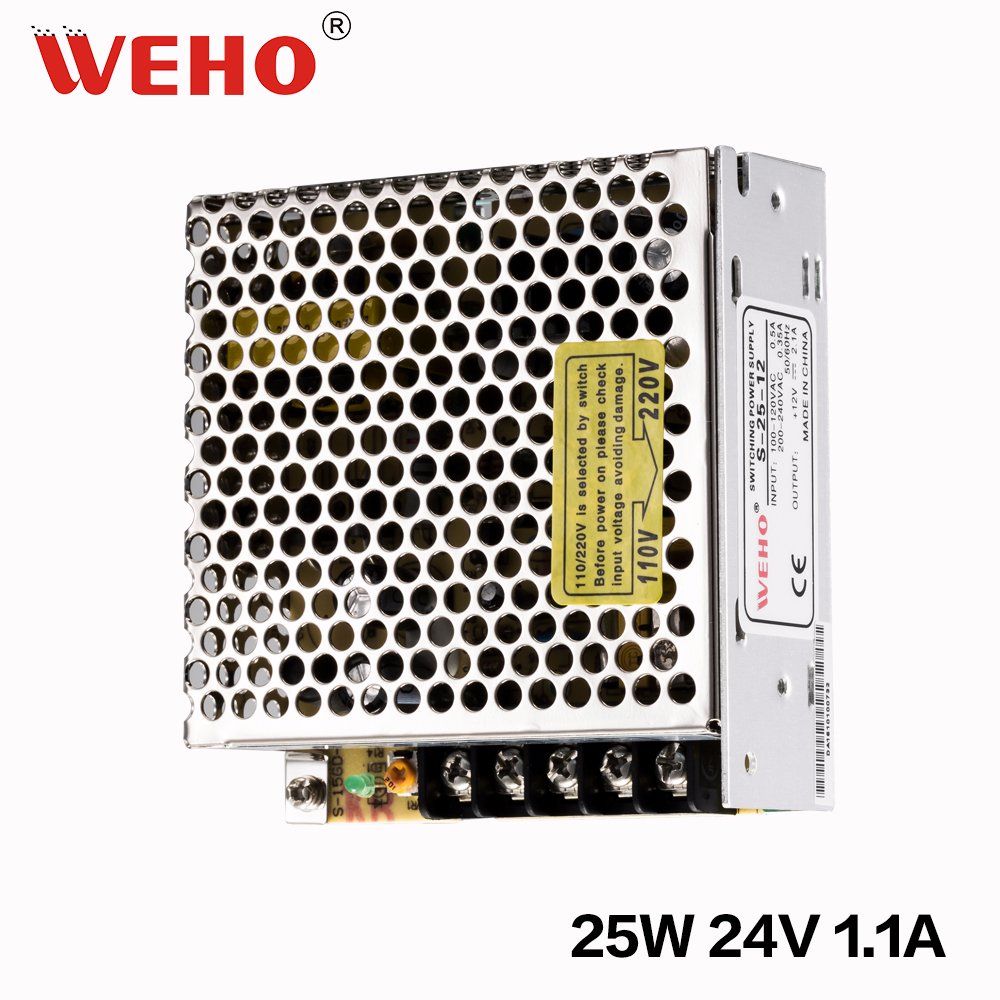

S-25 Series Single Output Power Supply
Features:1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Specifications:
| Specification | S-25-5 | S-25-12 | S-25-15 | S-25-24 |
| DC output voltage | 5V | 7.5V | 12V | 24V |
| Output voltage error (Note2) | ± 2% | ± 1% | ± 1% | ± 1% |
| Rated output current | 5A | 18A | 12A | 6A |
| Output current rage | 0-5A | 0-2.1A | 0-1.7A | 0-1.1A |
| Wave and noise(Note3) | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note4) | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.2% |
| Load stability(Note5) | ± 1% | ± 0.5% | ± 0.3% | ± 0.2% |
| DC output power | 25W | 25.2W | 25.5W | 26.4W |
| Efficiency | 72%/115VAC | 76%/115VAC | 77%/115VAC | 80%/115VAC |
| Adjustable range for DC voltage | +10, -5% | ± 10% | ± 10% | ± 10% |
| AC input voltage range | 85~264VAC/47~63VAC; 120~370VDC |
| Input current | 0.6A/115V 0.35A/230V |
| AC impulse current | Cold-start current 15A/115V 30A/230V |
| Leakage current | < 0.75mA/240VAC |
| Overload protection | 105%~150% Type PULSING HICCUP SHUTDOWN; Reset; auto recovery |
| Over-voltage protection | 115%~135% |
| High-temperature protection | … … |
| Temperature coefficient | ± 0.03%° C(0~50° C) |
| Setup rise hold up time | 800ms, 50ms, 20ms/115VAC 300ms, 50ms, 80ms/230VAC |
| Vibration | 10~500Hz, 2.10min. /1cycle, Period for 60min, Each axes |
| Withstand voltage | Input and output interval 3KVAC, Input and enclosure 1.5KVAC, Output and enclosure 0.5KVAC |
| Isolation resistance | Input and output interval, Input and enclosure, Output and enclosure 0500VAC/100M Ohms |
| Working temperature and humidity | -10° C~+60° C, 20%~90%RH |
| Store temperature and humidity | -20° C~+85° C, 10%~95RH |
| Overall dimension | 99*97*35mm |
| Weight | 0.37Kgs |
| Safety standards | Meet UL1012, TUV EN60950 |
| EMC standards | Meet IEC801-2, 3, 4, IEC555-2 |
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25° C 70%Rh, Humidity
2. Error, include the setting error, line stability and load stability. (Note: 5)
3. Wave test: adopting" A12" double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting
4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%.
6. C2, 3, 11must be knocked down. |
Packaging:

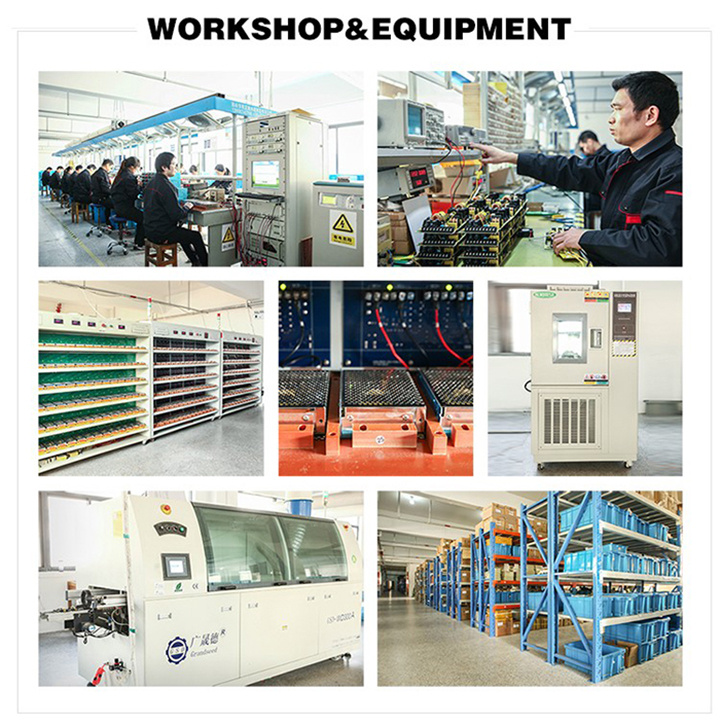

Workshop:

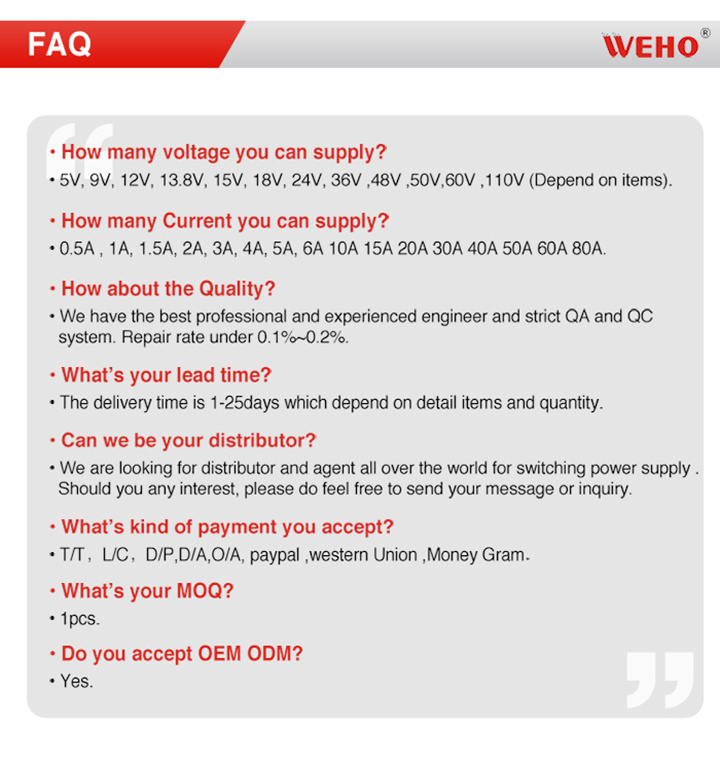

FAQ:
With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!
Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.
Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.
We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.
The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.
Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
