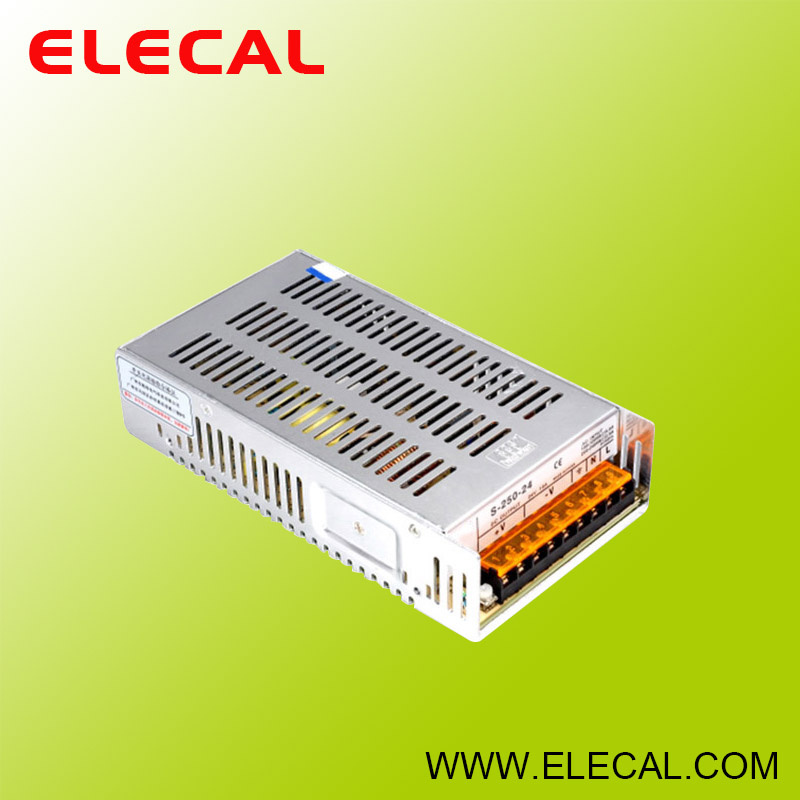

S-250 Single Output Switching Power Supply

Name: S-250 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828954515
Availability: InStock
Rating: 5 (136 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-250
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	200W/240W
Input Voltage:	132VAC /180 - 264VAC
Brand:	Elecal

Product Description

MODEL		S-250-5	S-250-7.5	S-250-12	S-250-13.5	S-250-15	S-250-24	S-250-27	S-250-48
OUTPUT	DC VOLTAGE	5V	7.5V	12V	13.5V	15V	24V	27V	48V
	RATED CURRENT	40A	30A	20A	17.8A	16A	10A	8.9A	5A
	CURRENT RANGE	0~40A	0~225A	0~20A	0~17.8A	0~16A	0~10A	0~8.9A	0~5A
	RATED POWER	200W	200W	240W	240.3W	240W	240W	240.3W	240W
	RIPPLE & NOISE (max.) Note.2	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	VOLTAGEADJ. RANGE	4.5 ~ 5.6V	6~9V	10 ~ 13.2V	12 ~ 15V	13.5-18V	20-26.4V	26 ~ 32V	41 ~ 56V
	VOLTAGE TOLERANCE Note.3	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE, HOLD TIME	200ms, 100ms, 20ms at full load
INPUT	VOLTAGE RANGE	90 ~ 132VAC /180 - 264VAC by switch 254-370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	74%	79%	80%	80%	81%	83%	83%	84%
	AC CURRENT	6A/115VAC 3A/230VAC
	INRUSH CURRENT (max.)	50A/115VAC 50A/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVER LOAD	105 ~ 135% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVERVOLTAGE	5.75-6.75V	9.4-10.9V	13.8 ~ 16.2V	15.5 ~ 18.2V	18 ~ 21V	27.6 ~ 32.4V	33.7 ~ 39.2V	57.6 ~ 67.2V
		Protection type: Shutdown o/p voltage, re-power on to recover
	OVER TEMPERATURE	^90°C(RTH3) Detect on inside ambient temperature
		Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-10 ~ +50°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C,10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1 cycle, 60min. each along X, Y, Z axes
SAFETY& EMC	SAFETY STANDARDS	Design refer to UL1950
	WITHSTAND VOLTAGE	l/P-0/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	l/P-O/P, l/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION &RADIATION	Design refer to FCC Parti 5 J Conduction Class A
OTHERS	MTBF	271.9K hrs min. MIL-HDBK-217F(25°C)
	DIMENSION	21511550mm(LWH)
	PACKING	0.93Kg;12pcs/12Kg/0.92CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
